EFB MTP naar LC 12-fiber OM3 LSZH Aqua fan-out patchkabel, 7,5 m MTPF12LCOM3-7,5

This EFB MTP to LC fan-out patch cable delivers 12 fibers of OM3 multimode performance in a single 7.5-meter run, with a 50/125 µm core and LSZH aqua jacket. It is built for high-density fiber environments where space and signal integrity matter.

Overview

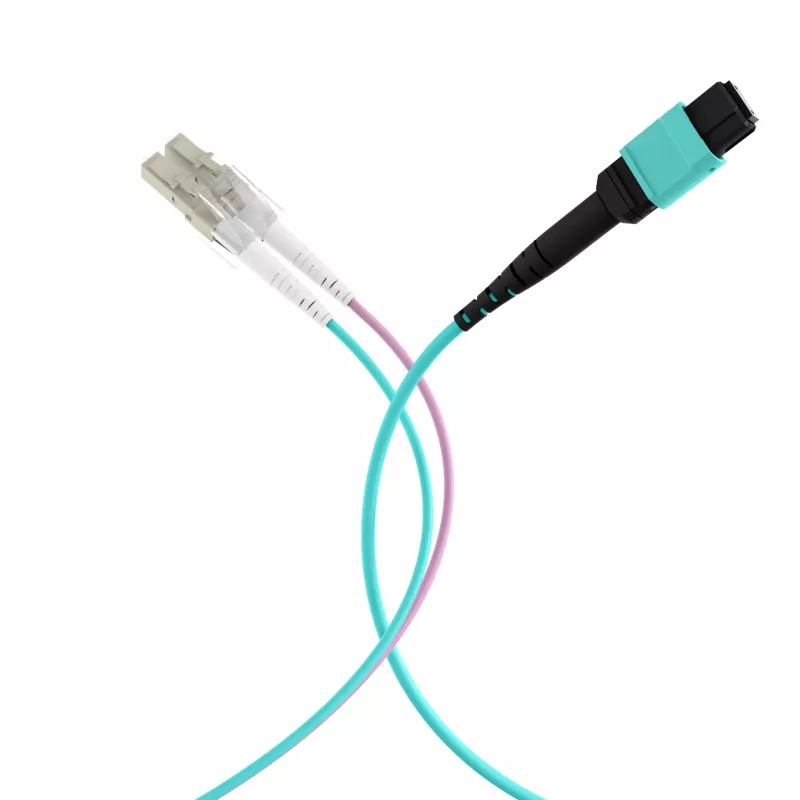

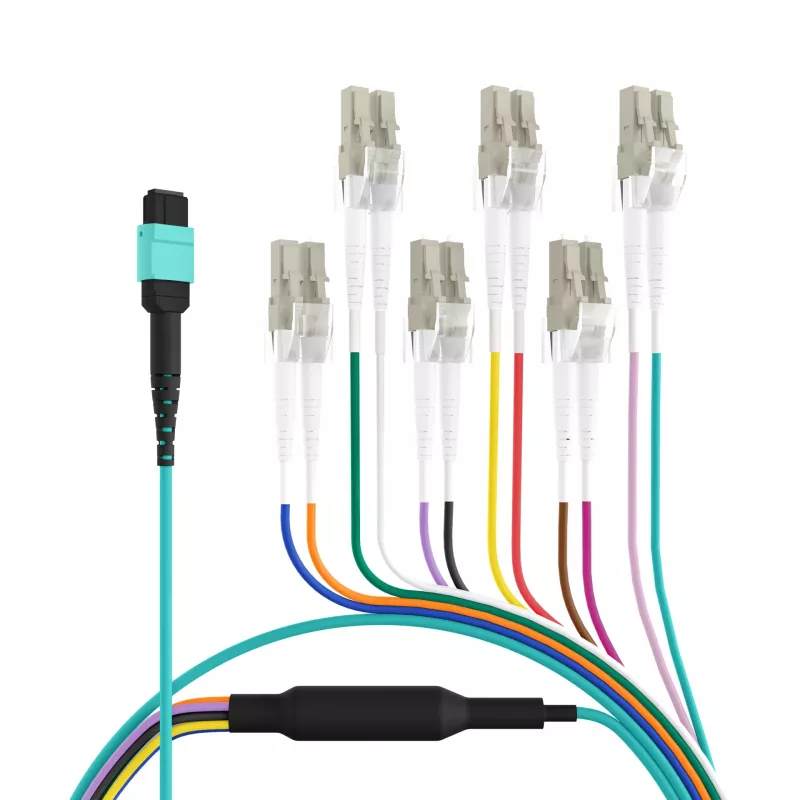

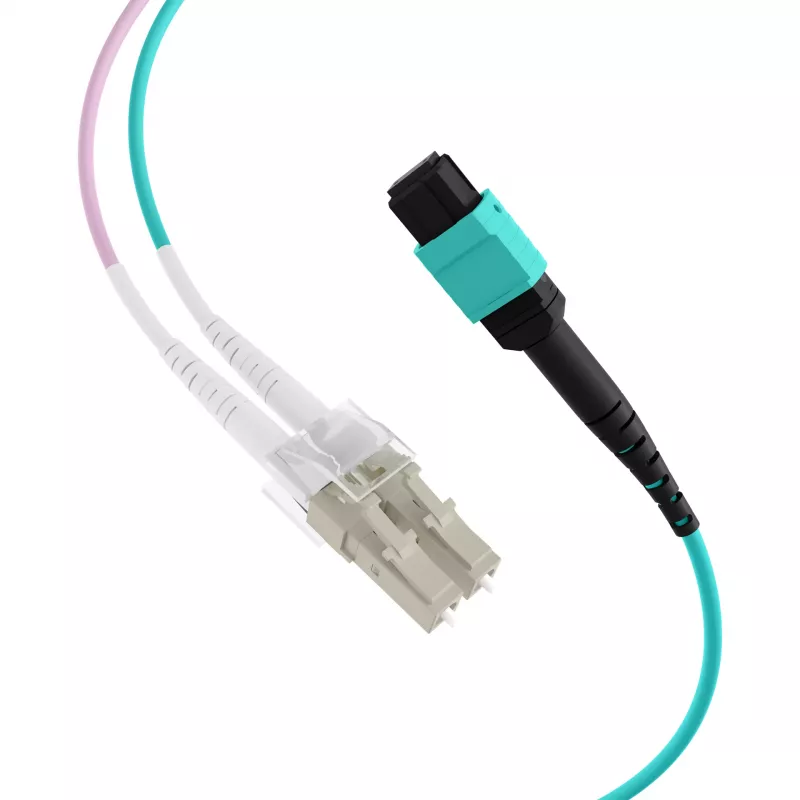

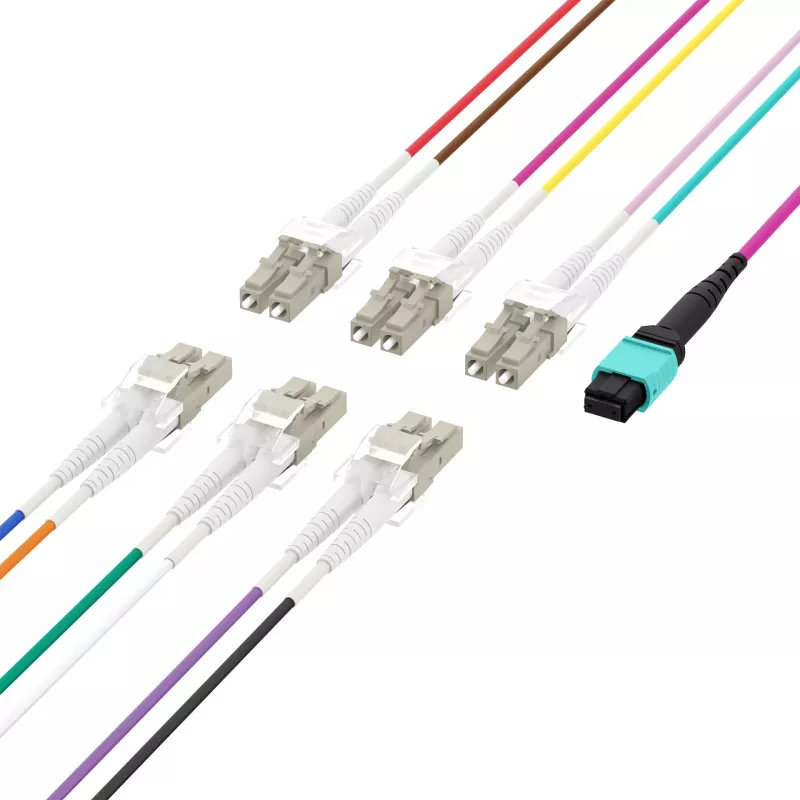

The cable features an MTP female connector on one end, fanning out to six LC duplex connectors, providing a clean transition from high-density trunk cabling to individual equipment ports. The OM3 fiber supports 10 Gigabit Ethernet up to 300 meters at 850 nm, with a bandwidth of 1500 MHz·km, making it suitable for modern data center and enterprise networks.

What stands out

• 12 fibers in a single MTP connector maximize port density.
• OM3 multimode fiber supports 10G and 40G/100G parallel optics.
• LSZH jacket reduces toxic smoke and corrosive gases in case of fire.
• Aqua color coding instantly identifies OM3/OM4 multimode cabling.
• Fan-out design simplifies patching from MTP trunks to LC equipment.

Technical details

• Connector A: MTP Female (MPO compatible)
• Connector B: 6x LC Duplex
• Fiber count: 12
• Fiber type: Multimode OM3
• Core/cladding: 50/125 µm
• Length: 7.5 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Aqua
• Bandwidth: 1500 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Standards: TIA/EIA-568-C.3, IEC 61754-7 (MPO), IEC 61754-20 (LC)

Our verdict

A reliable high-density fiber patch solution for data centers and enterprise networks, combining MTP efficiency with LC flexibility and safety-conscious LSZH materials.
