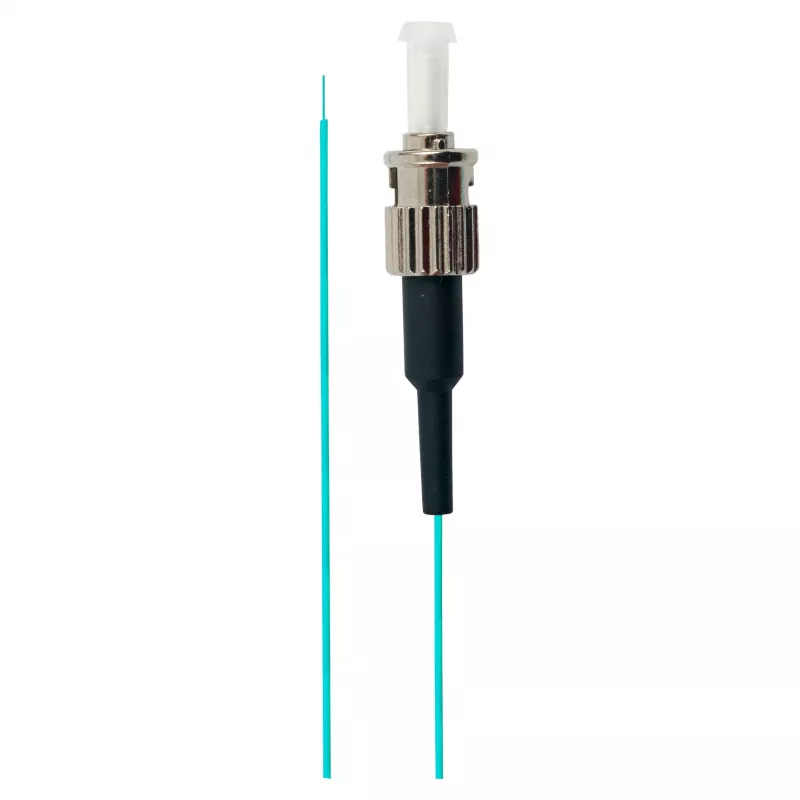

EFB Elektronik Fiber Pigtail ST OM3 Aqua 2m

The EFB Elektronik Fiber Pigtail ST OM3 Aqua 2m is a high-quality multimode fiber optic pigtail designed for reliable network connections. With a 50/125 µm core/cladding and OM3 grade, it supports high-speed data transmission over short to medium distances. The ST connector on one end and bare fiber on the other make it ideal for splicing into patch panels or termination enclosures.

Advantages

This pigtail offers low insertion loss (<0.3 dB) and high return loss (>20 dB), ensuring minimal signal degradation. The aqua-colored jacket provides easy identification for OM3 fiber. Tight buffer construction (900 µm) adds durability and ease of handling during installation.

Suitable for

• Fiber optic termination in data centers
• LAN and SAN networks
• Telecommunications infrastructure
• FTTx applications

Key specifications

• Connector: ST (male) to bare fiber
• Fiber mode: Multimode OM3
• Core/Cladding: 50/125 µm
• Length: 2 m
• Jacket color: Aqua
• Polishing: PC
• Insertion loss: <0.3 dB
• Return loss: >20 dB
• Attenuation: 3.0 dB/km @850nm, 1.0 dB/km @1300nm
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, TIA/EIA-568-C.3

Recommendations

For optimal performance, use with OM3-rated patch panels and connectors. Ensure proper cleaning before splicing. This pigtail is ideal for 10 Gigabit Ethernet and other high-bandwidth applications.
