EFB Elektronik I-V(ZN)H 1G 50/125 µm OM2 Simplex 2,8 mm oranje LSZH-patchkabel

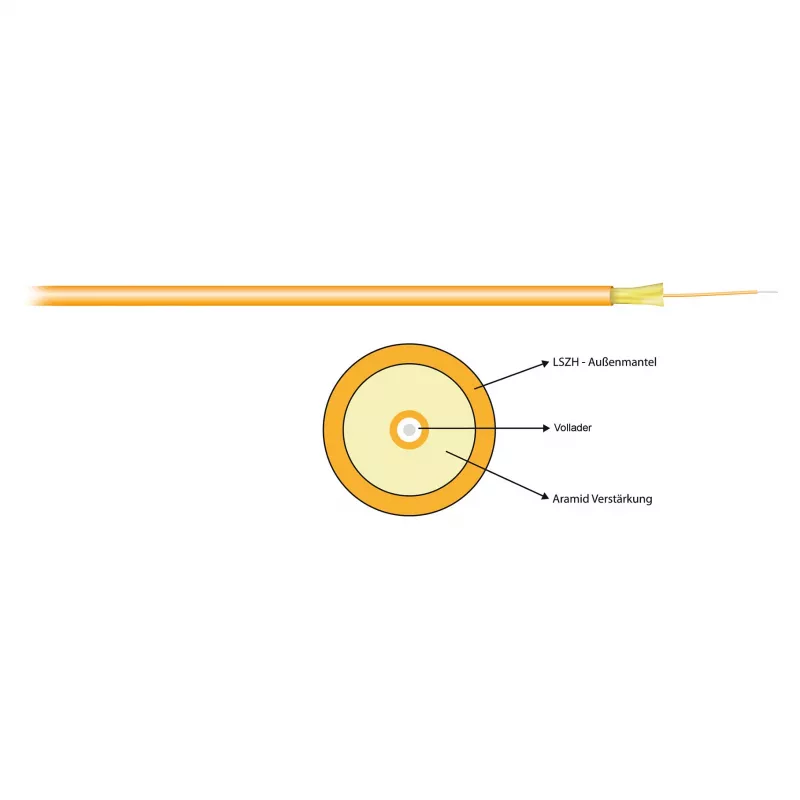

The EFB Elektronik I-V(ZN)H 1G 50/125 µm OM2 Simplex 2.8 mm Orange LSZH Patch Cable is a high-quality indoor fibre optic cable designed for reliable data transmission in local area networks. This simplex cable features a 50/125 µm core/cladding diameter, OM2 multimode fibre, and a robust LSZH (Low Smoke Zero Halogen) jacket, ensuring safety and performance in sensitive environments.

Advantages

This cable offers excellent bandwidth and low attenuation, making it ideal for high-speed network applications. The LSZH jacket reduces toxic smoke and fumes in case of fire, enhancing safety in confined spaces. Its tight buffer construction provides durability and ease of installation.

Suitable for

• Indoor fibre optic installations in data centers, offices, and industrial settings
• Connecting network devices such as switches, routers, and patch panels
• Applications requiring OM2 multimode fibre with 50/125 µm core/cladding
• Environments where low smoke and halogen-free materials are required

Key specifications

• Fibre Type: Multimode OM2
• Core/Cladding Diameter: 50/125 µm
• Cable Type: Simplex
• Number of Fibers: 1
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Outer Diameter: 2.8 mm
• Cable Colour: Orange
• Attenuation at 850 nm: ≤ 3.5 dB/km
• Attenuation at 1300 nm: ≤ 1.5 dB/km
• Bandwidth at 850 nm: ≥ 500 MHz·km
• Bandwidth at 1300 nm: ≥ 500 MHz·km
• Operating Temperature: -20 to +70 °C
• Storage Temperature: -20 to +70 °C
• Minimum Bend Radius (Installation): 28 mm (10 x OD)
• Minimum Bend Radius (Operation): 14 mm (5 x OD)
• Flame Retardancy: IEC 60332-1-2
• Halogen-Free: Yes (IEC 60754-1/2 compliant)

Recommendations

For optimal performance, use with OM2-compatible transceivers and connectors. Ensure proper cable management to maintain bend radius limits. This cable is suitable for backbone and horizontal cabling in structured cabling systems.
