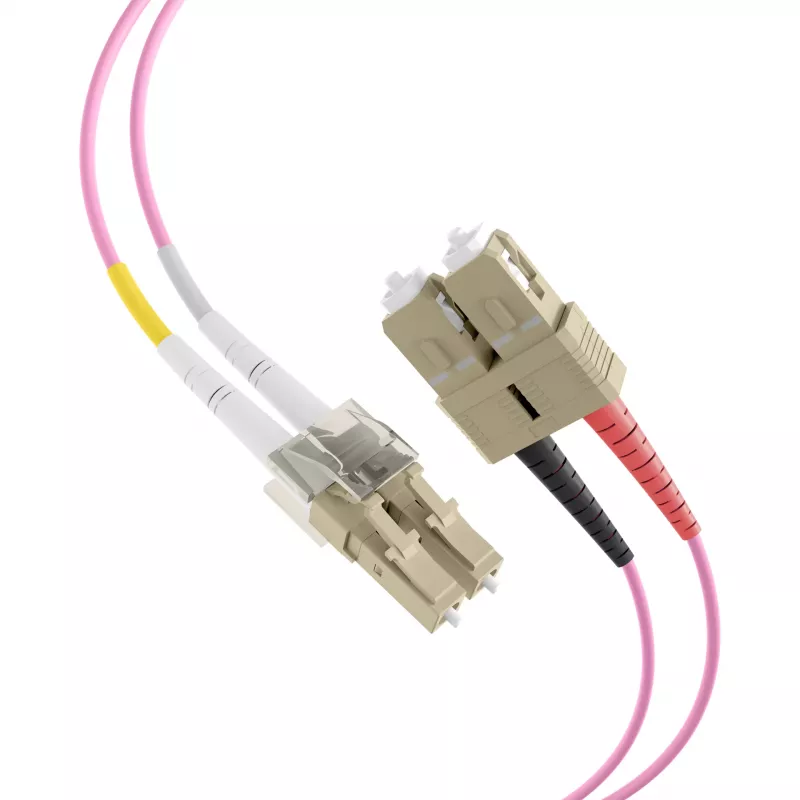

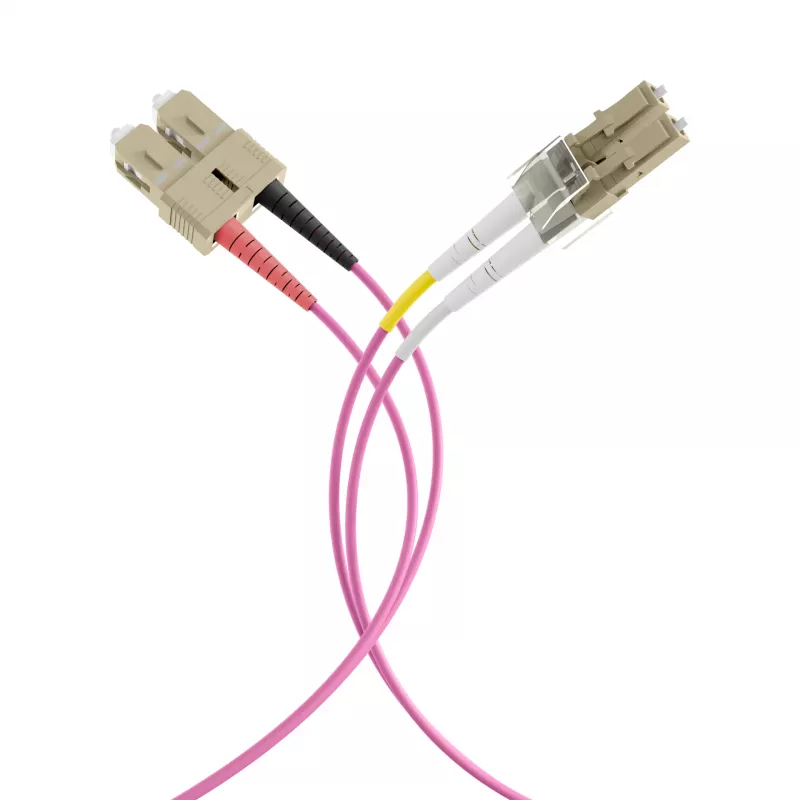

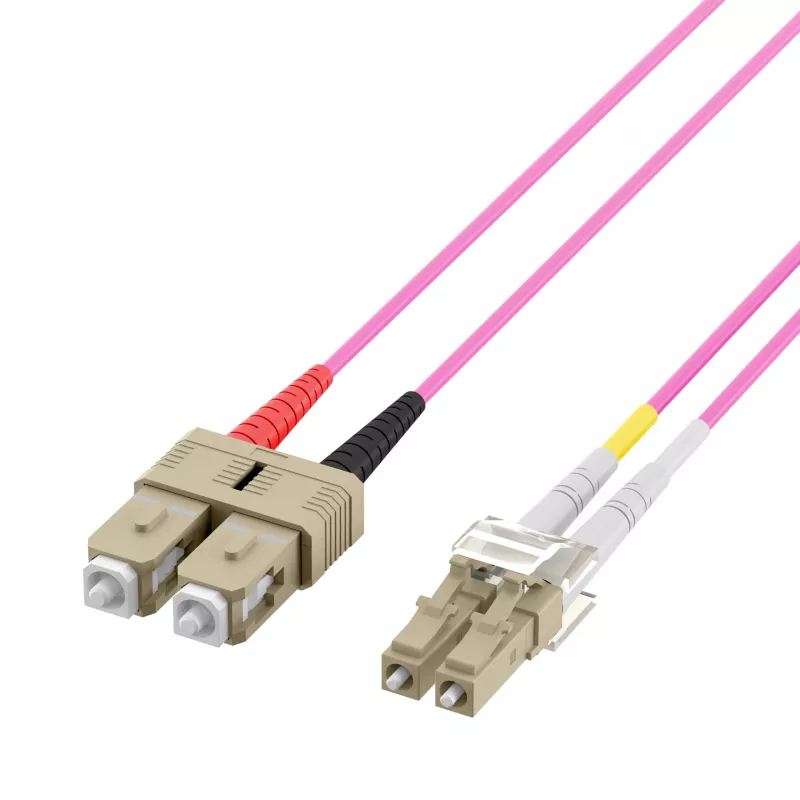

EFB Elektronik IPL-DF-LCUSCU-4-0200 - 2 m - OM4 - LC - SC glasvezel-patchkabel

The EFB Elektronik IPL-DF-LCUSCU-4-0200 is a high-performance duplex fiber optic patch cable designed for reliable data transmission in demanding network environments. With OM4 multimode fiber, LC to SC connectors, and a 2-meter length, this cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

OM4 multimode fiber supports high-speed data rates up to 40 Gbps and beyond, making it ideal for data centers and enterprise networks. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces by reducing toxic fumes and smoke in case of fire. The aqua jacket color allows for easy identification of OM4 cabling.

Suitable for

• Data center interconnects
• High-speed network backbones
• Storage area networks (SAN)
• Telecommunications infrastructure

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Class: OM4
• Cable Configuration: Duplex
• Connector A: LC/UPC
• Connector B: SC/UPC
• Cable Length: 2 m
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Insertion Loss (max): ≤ 0.3 dB
• Return Loss (min): ≥ 30 dB
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -20°C to 70°C
• Minimum Bend Radius: 30 mm
• Standards Compliance: RoHS, REACH

Recommendations

For optimal performance, pair this cable with OM4-compatible transceivers and ensure proper handling to maintain bend radius specifications. Ideal for high-density patching areas where space and safety are critical.
