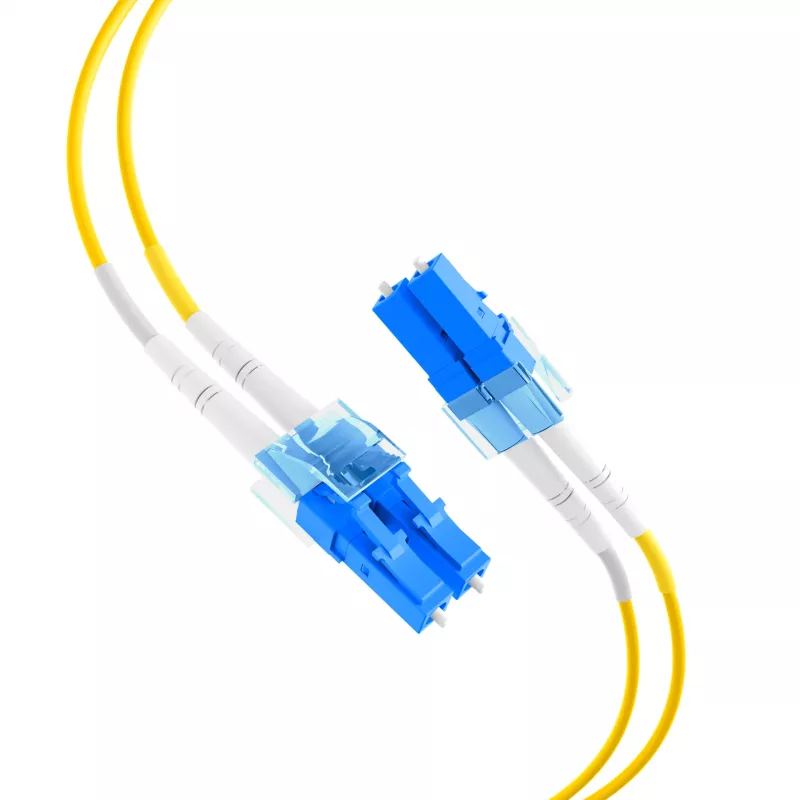

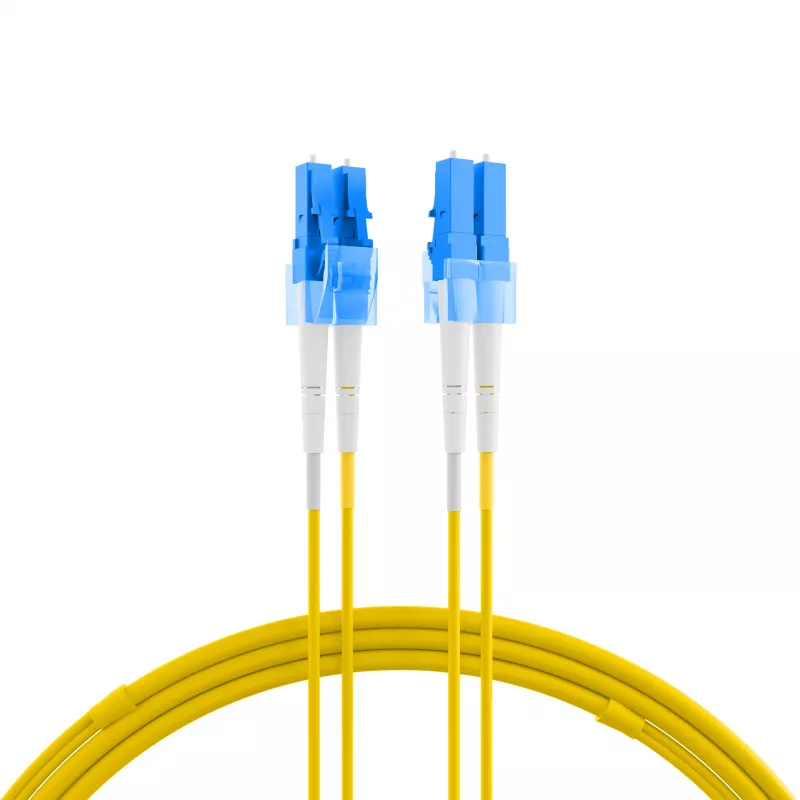

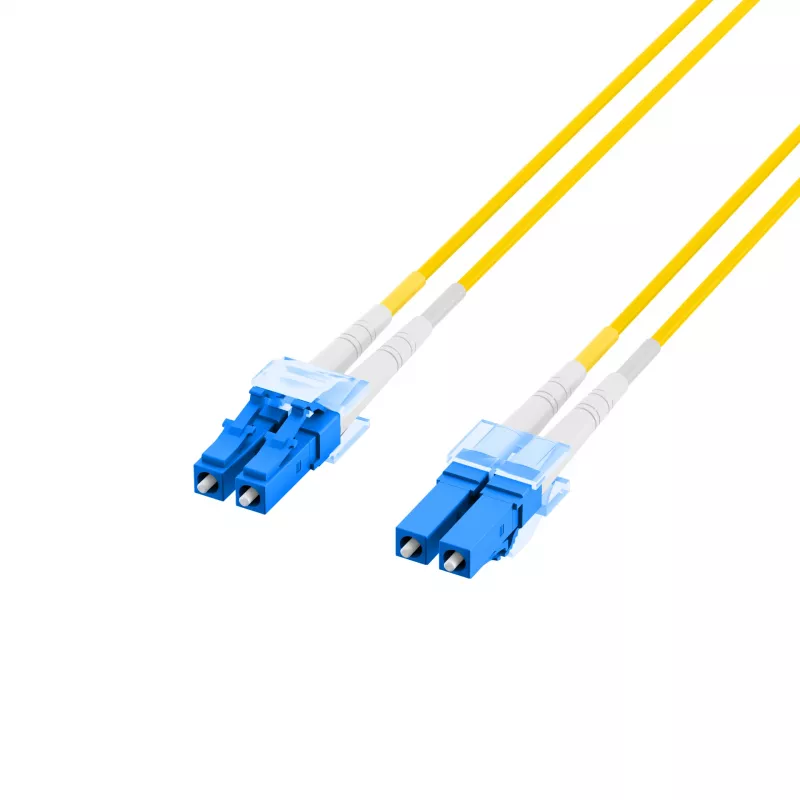

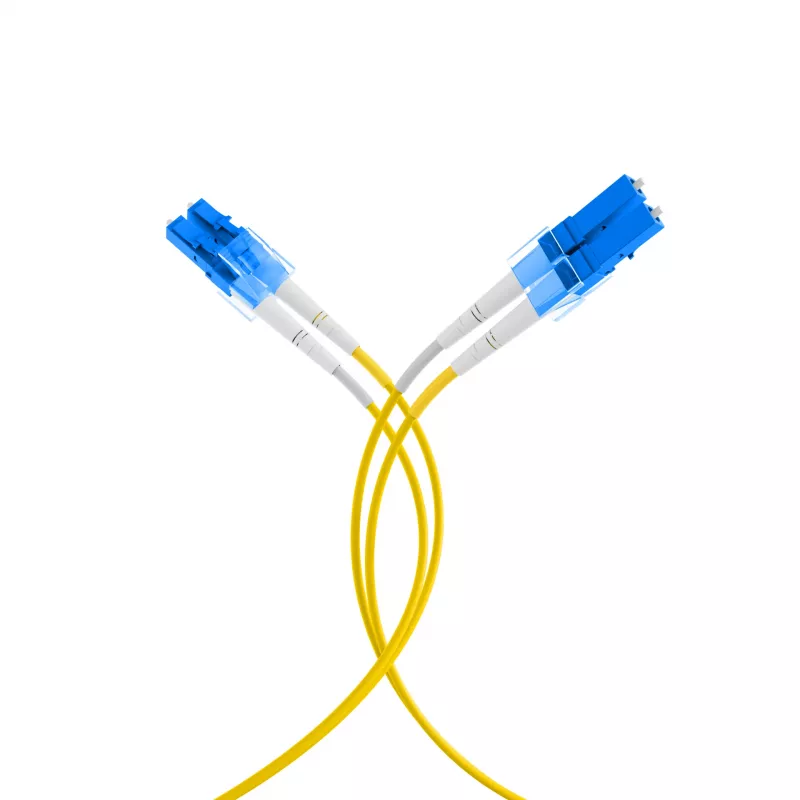

EFB Elektronik IPL-DR-LCULCU-2-0200 OS2 singlemode glasvezel-patchkabel LC naar LC duplex 2 m LSZH geel

The EFB Elektronik IPL-DR-LCULCU-2-0200 is a high-quality OS2 singlemode fiber optic patch cable designed for reliable data transmission in indoor networks. With LC to LC duplex connectors and a 2-meter length, this cable ensures low insertion loss and high return loss, making it ideal for data centers, telecommunications, and enterprise LAN applications. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, while the yellow color indicates singlemode fiber.

Advantages

This patch cable offers excellent performance with typical insertion loss < 0.3 dB and return loss > 50 dB, ensuring minimal signal degradation. The duplex zipcord construction allows for easy installation and organization. The LSZH jacket reduces toxic fumes and smoke, making it suitable for use in confined spaces or areas with strict fire safety requirements.

Suitable for

• Data center cabling
• Telecommunications networks
• Enterprise LAN connections
• Fiber-to-the-desk (FTTD) installations
• Any indoor singlemode fiber application

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Type: Singlemode (OS2)
• Connectors: LC to LC, UPC polished
• Number of Fibers: 2 (Duplex)
• Cable Length: 2 m
• Cable Construction: Duplex Zipcord
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Core/Cladding Diameter: 9/125 µm
• Insertion Loss (typical): < 0.3 dB
• Return Loss (typical): > 50 dB
• Cable Standard: I-V(ZN) H
• Operating Temperature: -20°C to 70°C

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC interfaces and is ideal for high-speed data transmission up to 10 Gbps and beyond. Pair with EFB patch panels and adapters for a complete solution.
