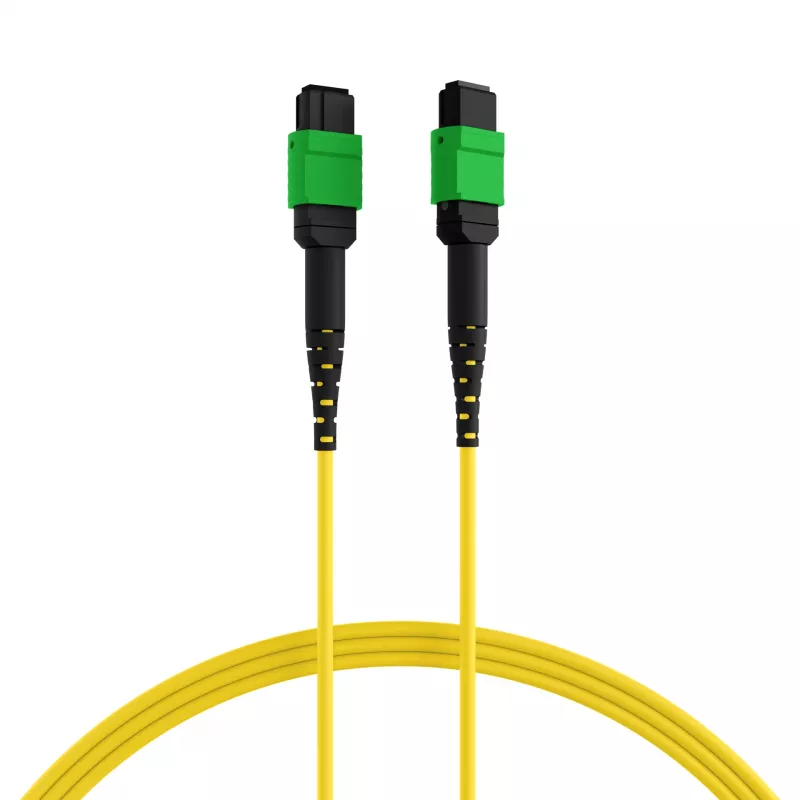

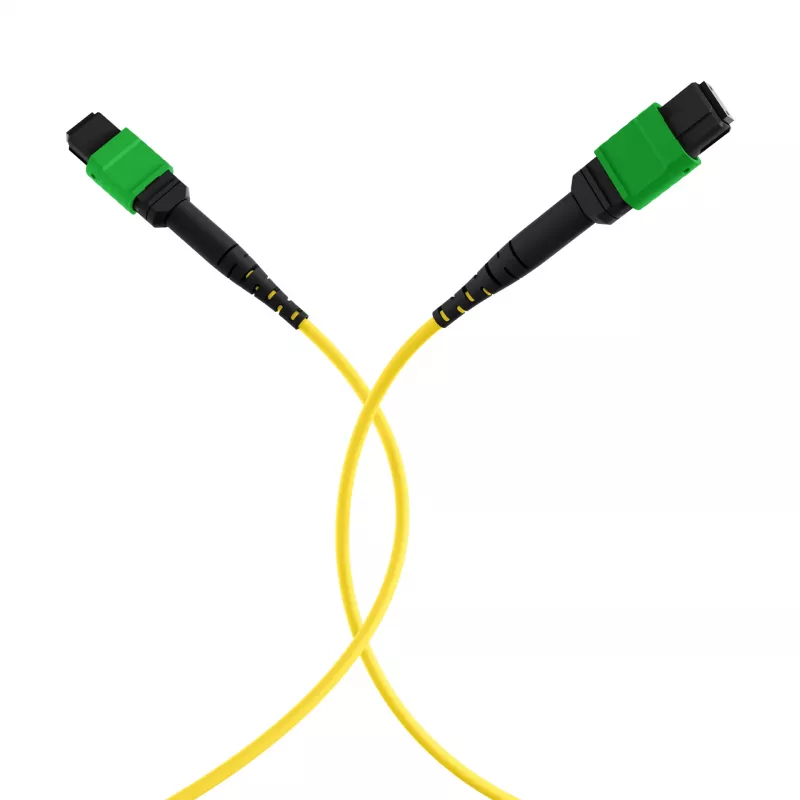

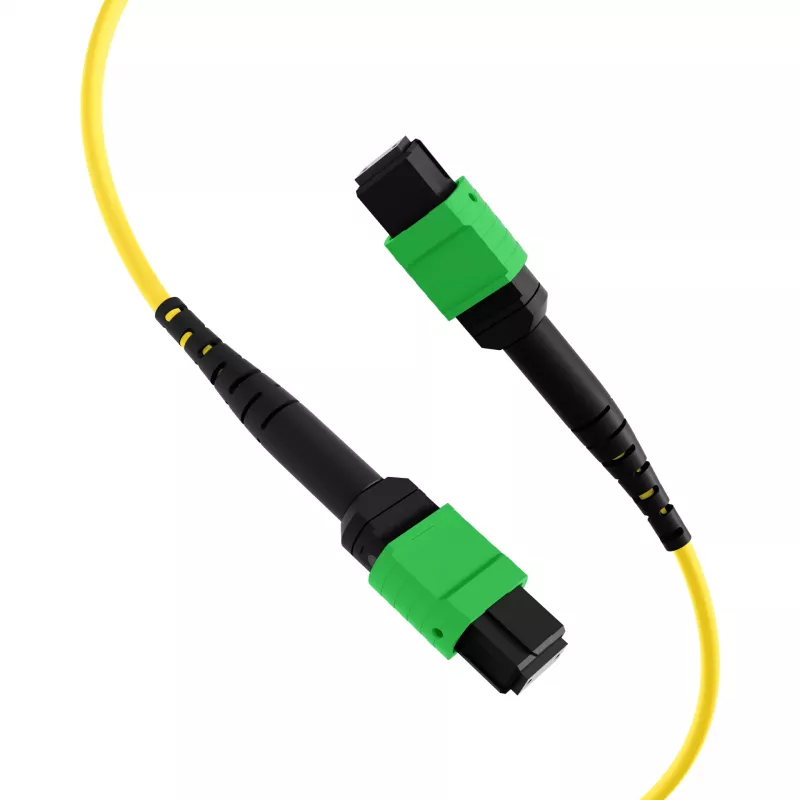

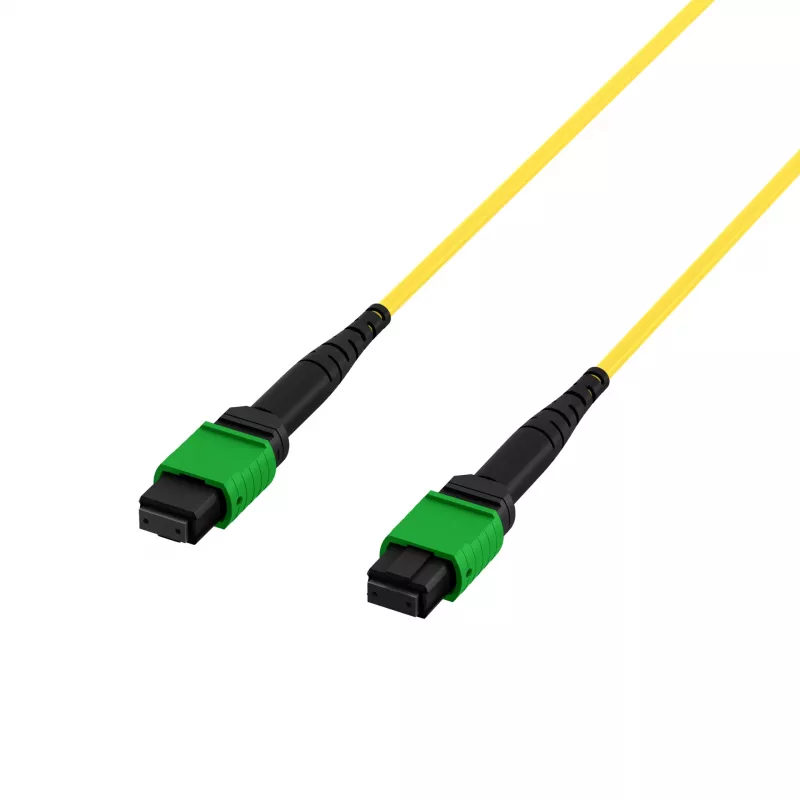

EFB ELEKTRONIK MPO-PLUS/APC(F)-MPO-PLUS/APC(F) patchkabel OS2 8 vezels type B LSZH geel 10m

The EFB ELEKTRONIK MPO-PLUS/APC(F)-MPO-PLUS/APC(F) Patch Cable is a high-performance fiber optic patch cable designed for demanding data center and telecommunications applications. With 8 single-mode fibers, OS2 grade, and MPO-PLUS/APC female connectors on both ends, this cable ensures low insertion loss and high return loss for reliable signal transmission over 10 meters. The Type B polarity and LSZH (Low Smoke Zero Halogen) jacket make it ideal for high-density environments where safety and performance are critical.

Advantages

This patch cable offers exceptional signal integrity with typical insertion loss < 0.35 dB and return loss > 60 dB. The LSZH jacket reduces toxic smoke in case of fire, enhancing safety in confined spaces. Its compact MPO-PLUS connectors enable high-density cabling, saving space in racks and panels.

Suitable for

• Data center backbone cabling
• Telecommunications networks
• High-density fiber optic patching
• Single-mode OS2 applications

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode
• Fiber Category: OS2
• Fiber Count: 8 Fibers
• Connector A: MPO-PLUS/APC Female
• Connector B: MPO-PLUS/APC Female
• Connector Polish: APC (Angled Physical Contact)
• Polarity Type: Type B
• Cable Length: 10 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Insertion Loss (Typical): < 0.35 dB
• Return Loss (Typical): > 60 dB
• Wavelengths Supported: 1310nm, 1550nm
• Attenuation @ 1310nm: 0.35 dB/km
• Attenuation @ 1550nm: 0.25 dB/km
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with MPO-PLUS/APC compatible transceivers and panels. Ensure proper polarity alignment (Type B) for end-to-end connectivity. Store in a clean, dry environment within specified temperature range.
