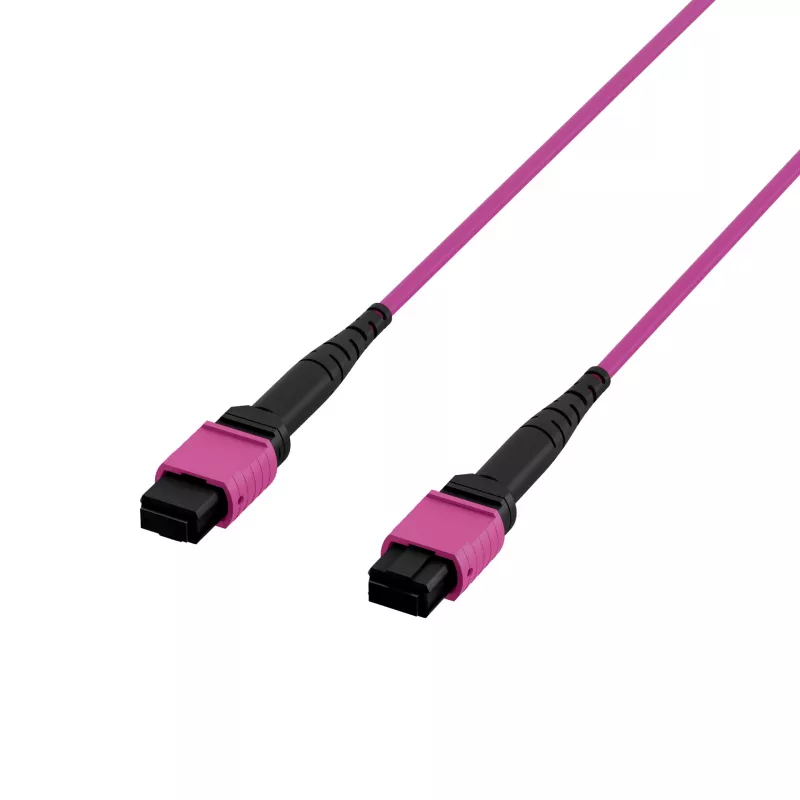

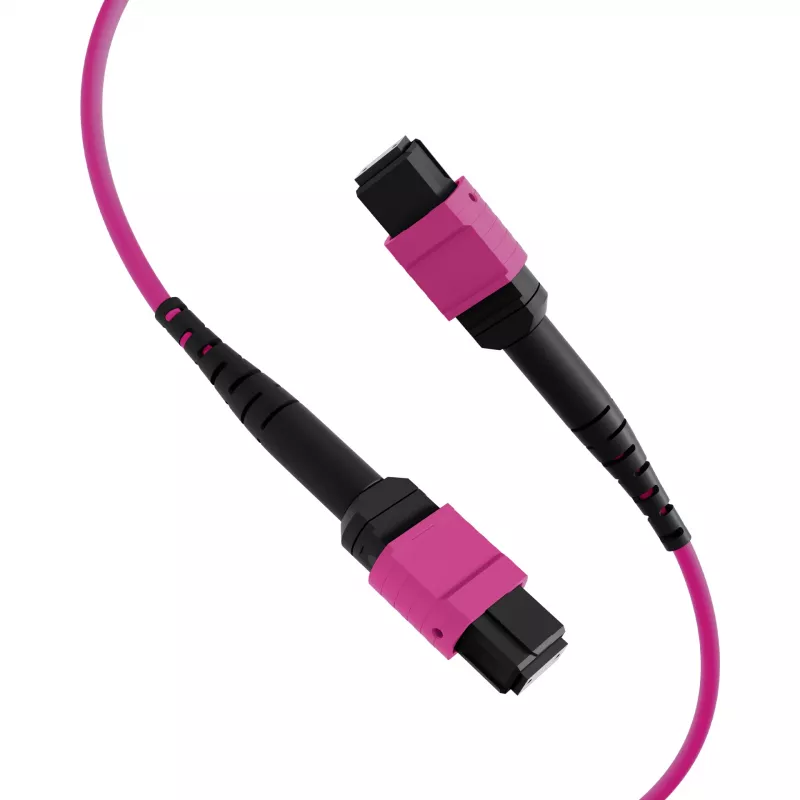

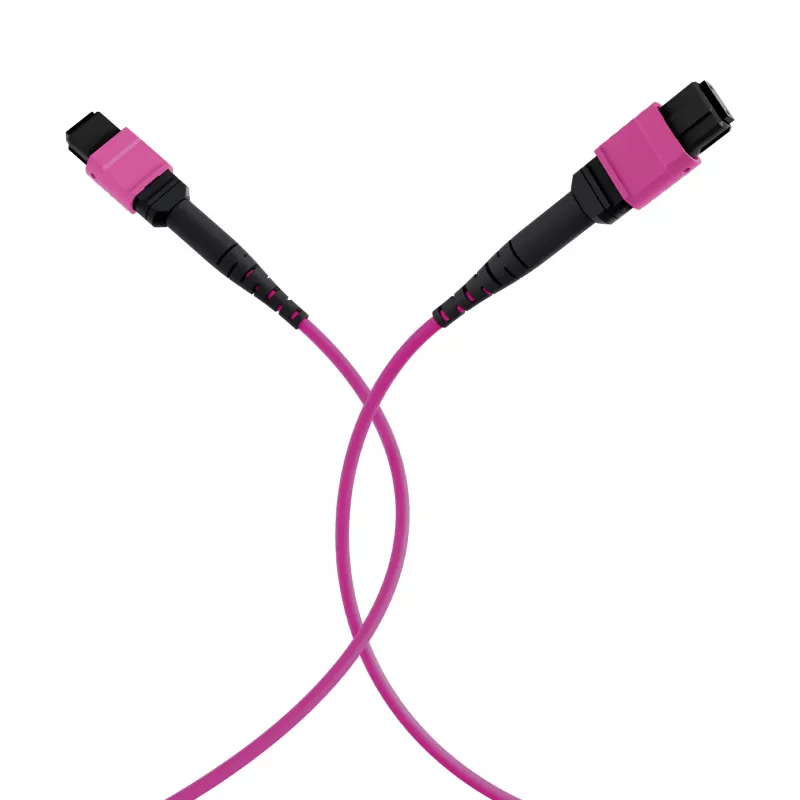

EFB ELEKTRONIK MPO-PLUS(F)-MPO-PLUS(F) patchkabel OM4 12 vezels type B LSZH heather violet 15m

The EFB ELEKTRONIK MPO-PLUS(F)-MPO-PLUS(F) Patch Cable OM4 is a high-performance fiber optic patch cable designed for demanding data center and high-density cabling environments. With 12 multimode OM4 fibers and MPO-PLUS female connectors on both ends, this cable supports high-speed applications such as 40G and 100G Ethernet. The Type B polarity (cross-over) ensures correct signal transmission in structured cabling systems. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the heather violet color allows for easy identification.

Advantages

This patch cable offers exceptional bandwidth and low insertion loss, ensuring reliable data transmission over distances up to 150 meters at 40G/100G. The MPO-PLUS connectors are designed for high-density patching, saving space in racks and panels. The LSZH jacket reduces toxic smoke emissions in case of fire, making it suitable for use in public buildings and data centers. The heather violet color aids in cable management and organization.

Suitable for

• Data center interconnects
• High-density fiber cabling systems
• 40G and 100G Ethernet networks
• Backbone cabling in enterprise networks
• Telecommunications rooms and server rooms

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM4
• Fiber Count: 12 Fibers
• Connector A: MPO-PLUS Female
• Connector B: MPO-PLUS Female
• Cable Length: 15 m
• Polarity: Type B (Cross-over)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Heather Violet
• Core/Cladding Diameter: 50/125 µm
• Wavelength Support: 850 nm / 1300 nm
• Maximum Bandwidth (850nm): 4700 MHz·km (OFL) / 3500 MHz·km (EMB)
• Maximum Bandwidth (1300nm): 500 MHz·km (OFL)
• Maximum Insertion Loss: 0.35 dB per connector pair
• Minimum Return Loss: 20 dB
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure that the MPO connectors are properly cleaned before each connection. Use appropriate polarity management to maintain signal integrity. This cable is ideal for use with MPO-based patch panels and active equipment supporting 40G/100G Ethernet.
