EFB Elektronik MPO-PLUS(F)-MPO-PLUS(F) patchkabel OM4 8 vezels type B LSZH erika-violet 1m MPOF8MPOFOM4-1

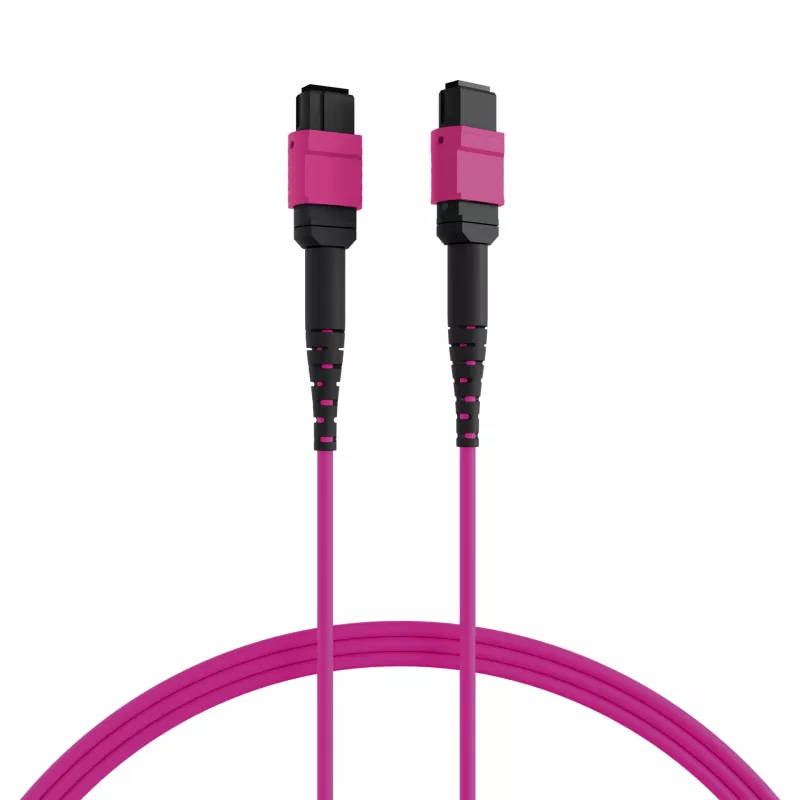

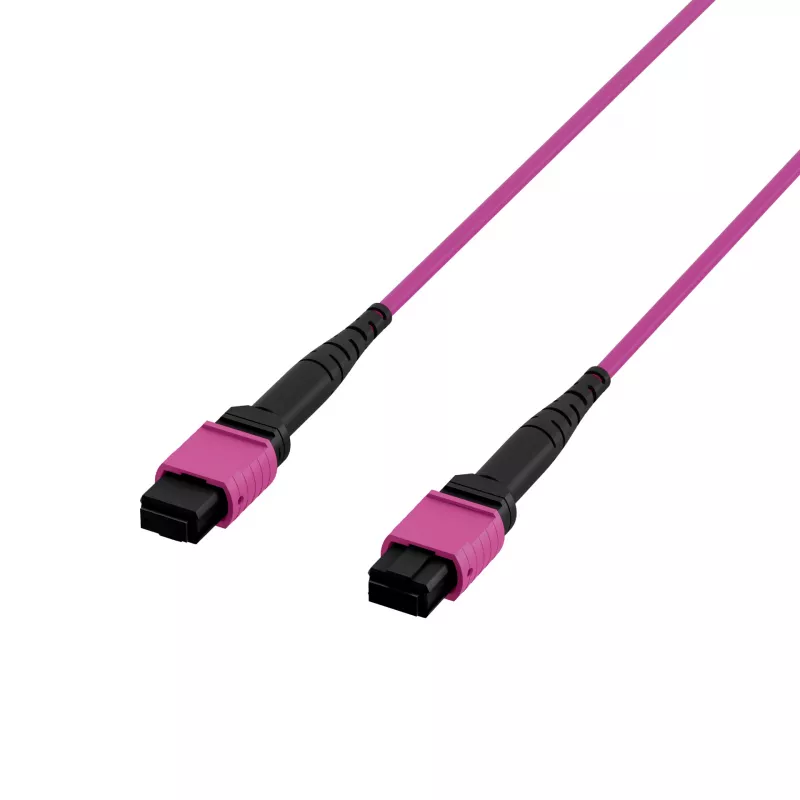

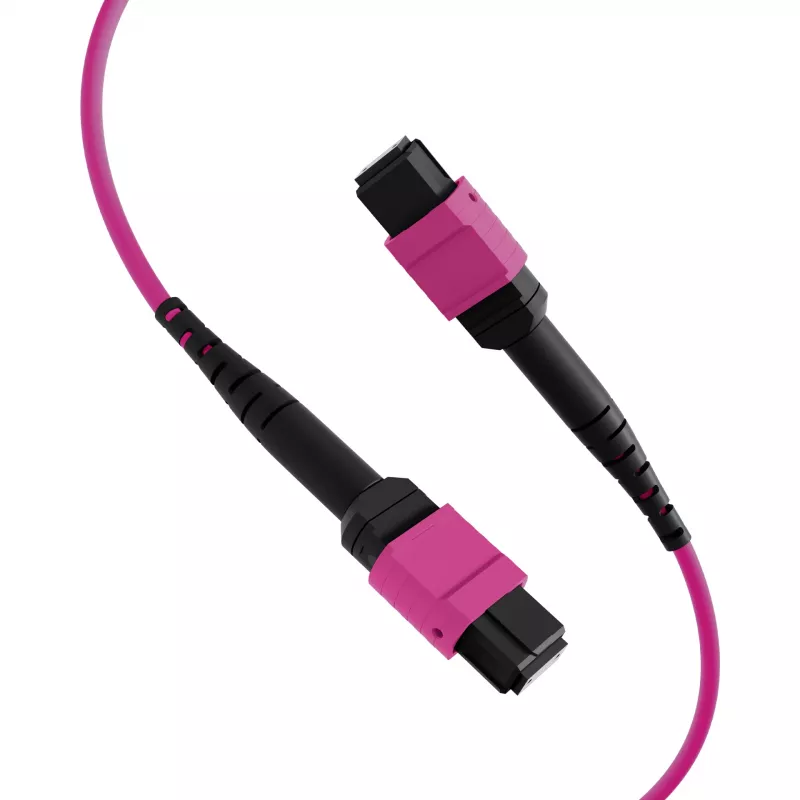

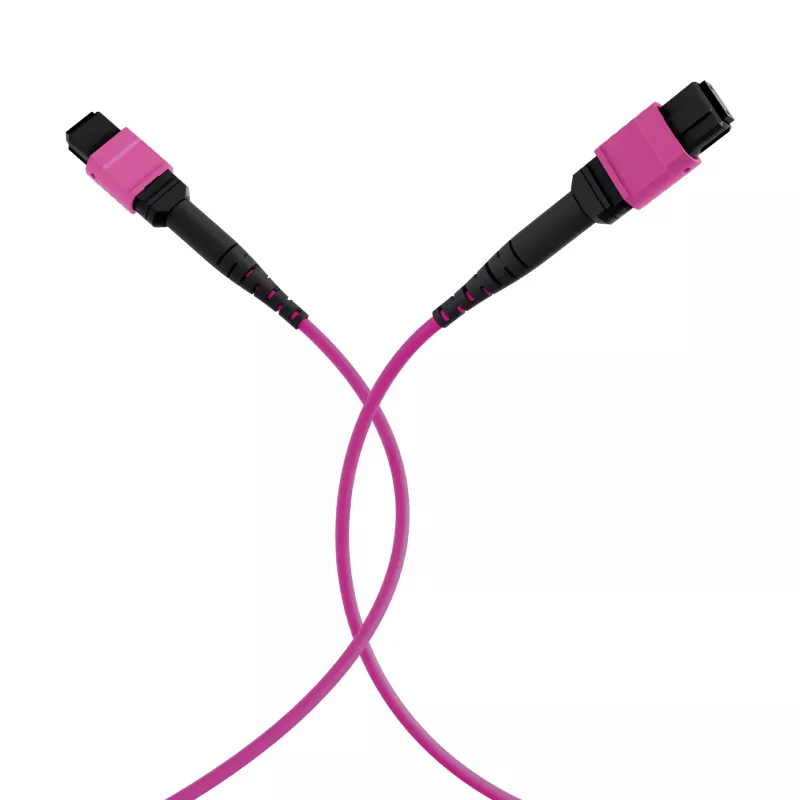

8-fiber OM4 multimode patch cable with MPO-PLUS female connectors on both ends, Type B polarity, LSZH jacket in Erika violet, 1 m length.

Overview

The EFB Elektronik MPOF8MPOFOM4-1 is a high-density fiber optic patch cable designed for data center and high-speed networking applications. It features MPO-PLUS female connectors on both ends, supporting 8 fibers in a single compact interface. The cable is built with OM4 multimode fiber, optimized for 10G, 40G, and 100G Ethernet over short distances. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in case of fire, emitting low smoke and no toxic halogens. The cable has Type B polarity, which is commonly used in 40G and 100G parallel optics. The jacket color is Erika violet, a distinctive shade that aids in identification. The cable length is 1 meter, suitable for patching within racks or adjacent equipment.

What stands out

• MPO-PLUS female connectors on both ends for high-density fiber patching
• 8 fibers in a single cable, supporting parallel optics
• OM4 multimode fiber grade for high-speed data transmission
• Type B polarity for 40G/100G applications
• LSZH jacket for low smoke and halogen-free safety
• Erika violet jacket color for easy identification
• 1 m length, ideal for rack-level patching

Technical details

• Connector Type (End A): MPO-PLUS Female
• Connector Type (End B): MPO-PLUS Female
• Fiber Type: Multimode
• Fiber Grade: OM4
• Number of Fibers: 8
• Cable Length: 1 m
• Polarity Type: Type B
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Erika Violet
• Connector Polishing: PC (Physical Contact)
• Typical Insertion Loss: ≤ 0.35 dB
• Typical Return Loss: ≥ 20 dB
• Application: Data Center, High-Density Networking
• Compliance: RoHS, REACH
• Standards: TIA/EIA-568-C.3, IEC 61754-7, IEC 60793-2-10

Our verdict

A reliable high-density fiber patch cable with MPO-PLUS connectors and OM4 performance, ideal for modern data centers. The LSZH jacket and Type B polarity make it a safe and compatible choice for 40G/100G links.
