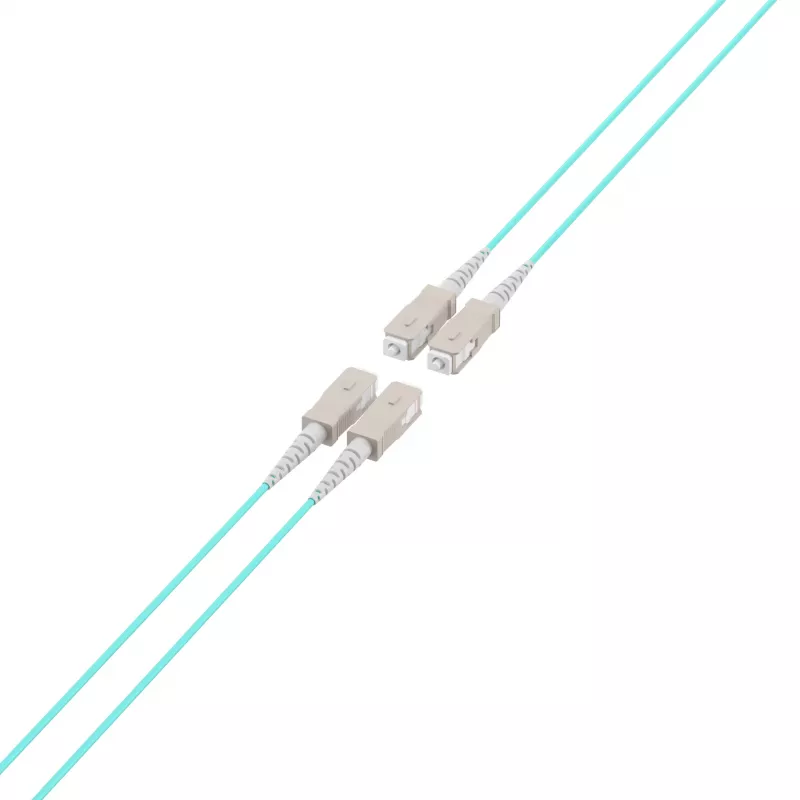

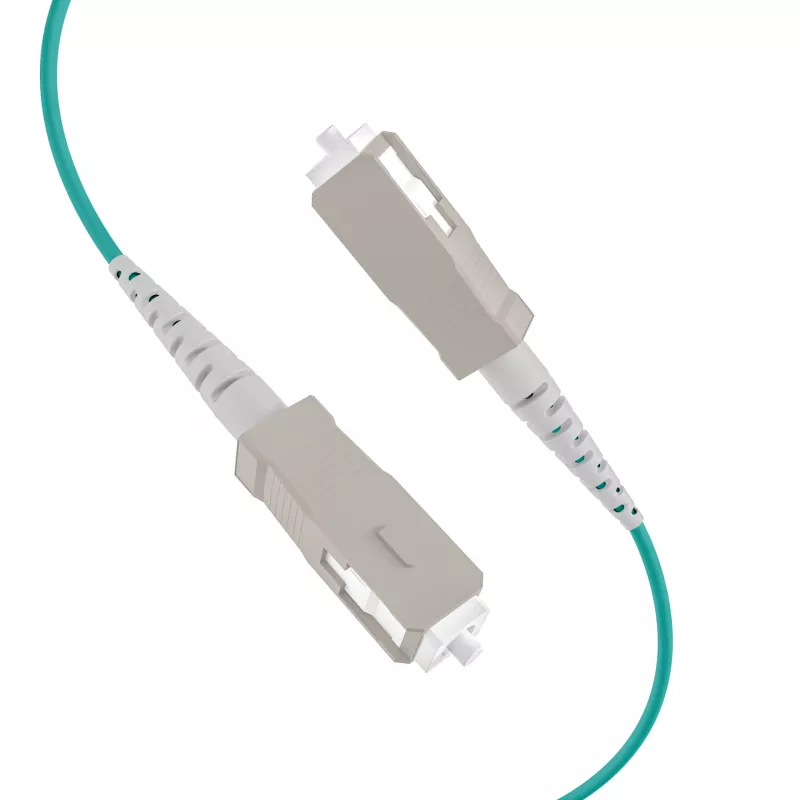

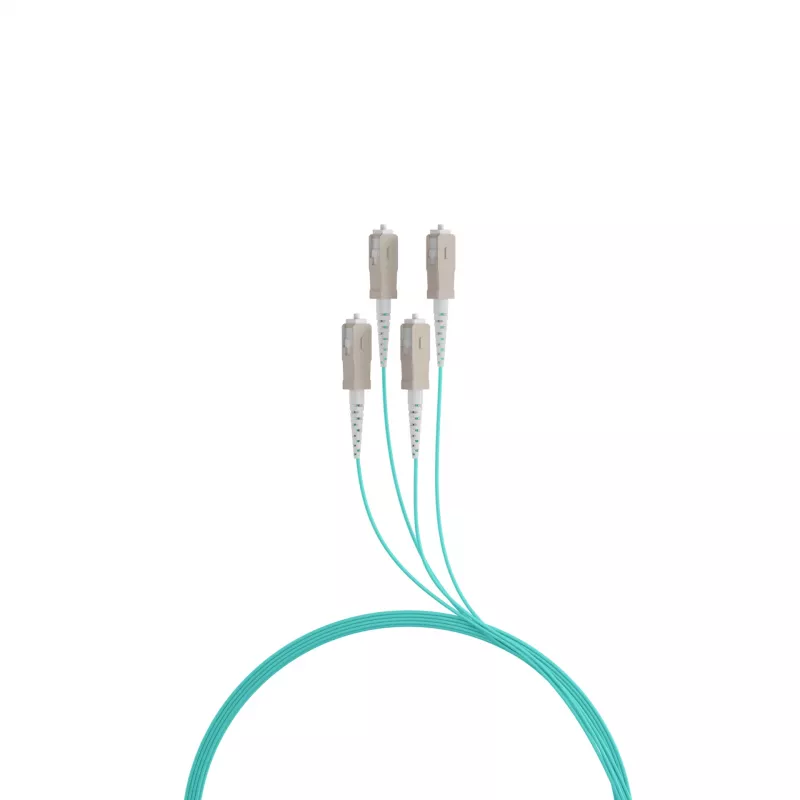

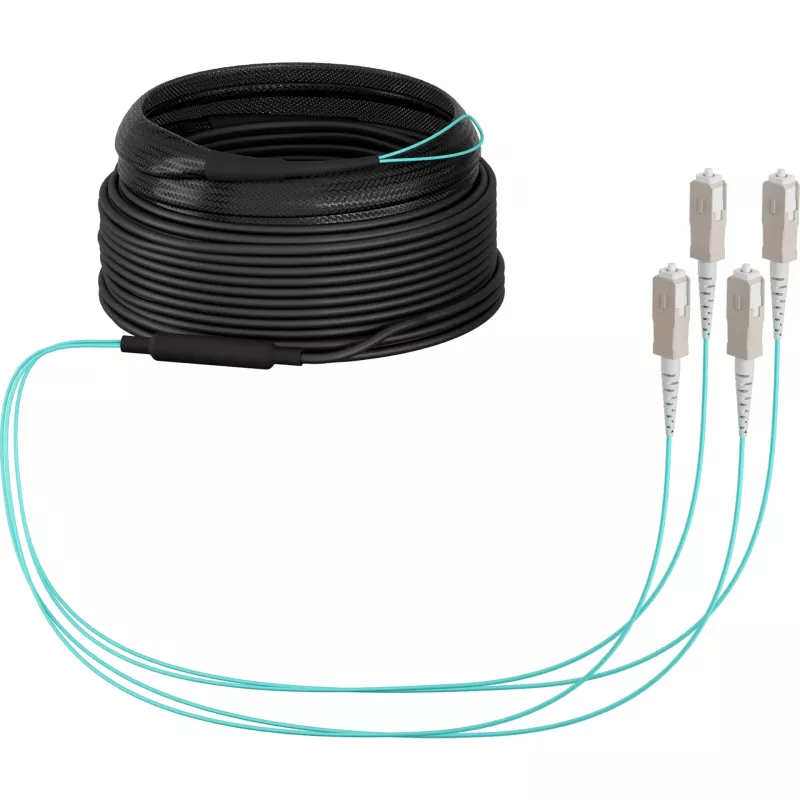

EFB Elektronik OM3 Multimode glasvezeltrunkkabel, 4 vezels, SC-SC, 10m, LSZH, Dca O8301S10OM3

Fiber optic trunk cable with OM3 multimode fiber, featuring four fibers in a 1x4 configuration and SC connectors on both ends. The 10-meter length and low-smoke zero-halogen (LSZH) jacket make it suitable for high-density data center and enterprise network backbone connections, supporting 10 Gigabit Ethernet.

Advantages

OM3 fiber supports 10 Gbps data rates up to 300 meters, providing headroom for current and future network demands. The LSZH jacket reduces toxic smoke and corrosive gases in the event of fire, enhancing safety in enclosed spaces. The Dca fire performance classification indicates limited fire spread, making it compliant with European CPR regulations for building installations.

Suitable for

• 10 Gigabit Ethernet backbone links in data centers
• Enterprise network trunking between switches and patch panels
• High-density fiber distribution areas requiring compact 1x4 cable design
• Installations in public buildings where low smoke and halogen-free materials are mandated

Key specifications

• Fiber type: OM3 multimode
• Number of fibers: 4 (1x4 configuration)
• Connectors: SC to SC
• Cable length: 10 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• CPR fire performance class: Dca
• Cable construction: U-DQ ZN BH (loose tube, non-metallic strain relief)

Recommendations

Verify compatibility with your existing SC patch panels and ensure the Dca rating meets local building code requirements before installation.
