EFB Elektronik PRO 42HE serverkast 800x800mm geperforeerde gedeelde deuren RAL 9005 (PRO-4288TS.P2)

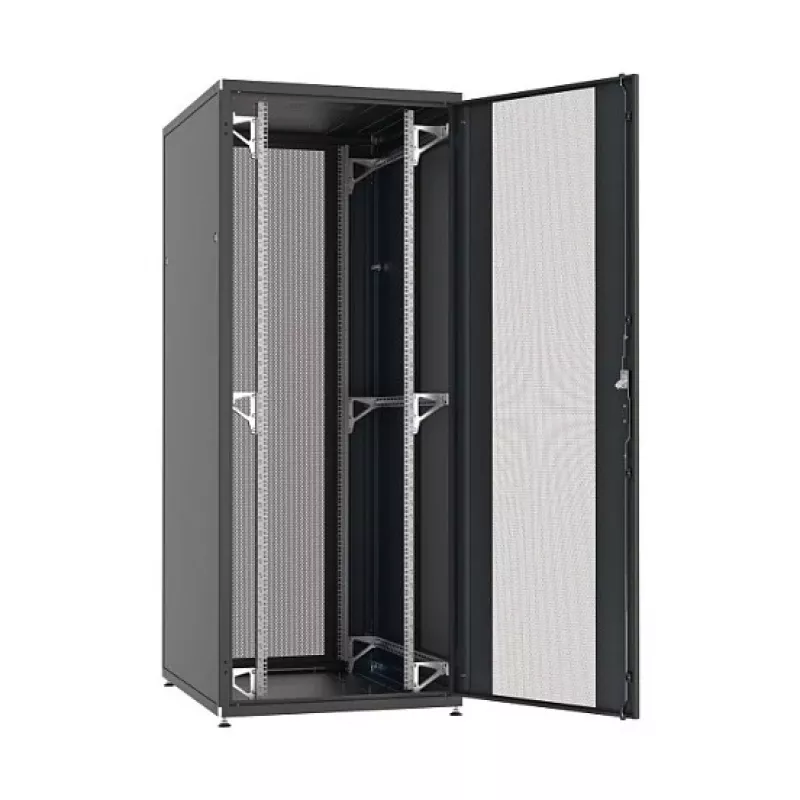

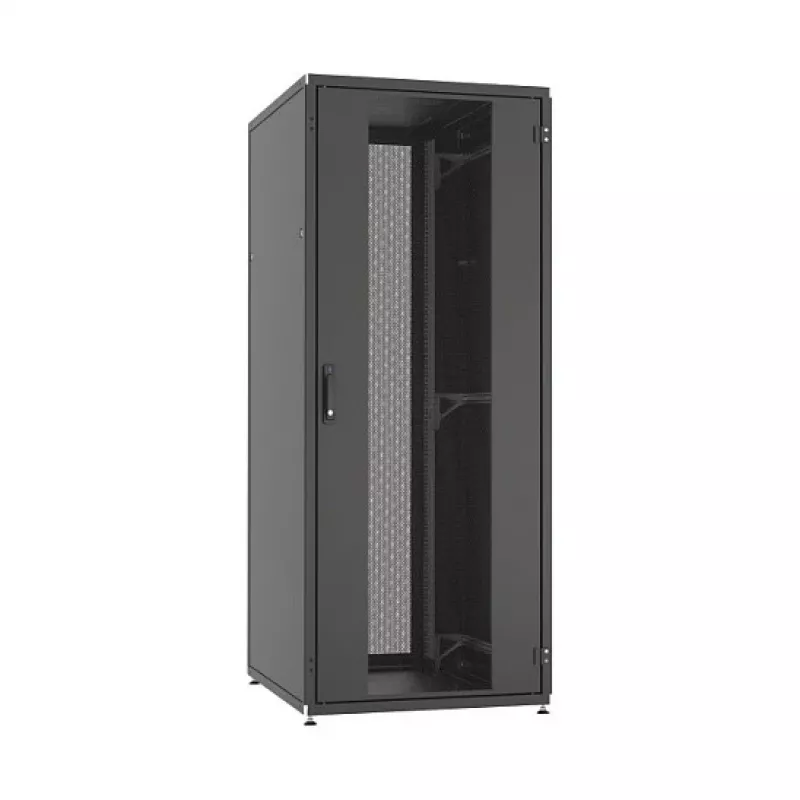

The EFB Elektronik PRO-4288TS.P2 is a high-quality 42U server cabinet designed for professional data center and network environments. With a robust steel construction and a static load capacity of 1000 kg, this rack provides reliable support for servers, network equipment, and other 19-inch rack-mountable devices. The cabinet features perforated split front and rear doors for optimal airflow and passive ventilation, ensuring efficient cooling of installed components. Its dimensions of 800x800 mm (width x depth) and a height of 2055 mm make it suitable for medium to large installations where space is at a premium.

Advantages

This server cabinet offers exceptional value through its combination of high load capacity, effective ventilation, and security features. The perforated doors allow for passive cooling without the need for additional fans, reducing energy costs and noise. The lockable doors and side panels provide physical security for sensitive equipment. Adjustable mounting rails enable flexible installation of various device depths, while the included leveling feet and castors allow for easy positioning and stabilization.

Suitable for

• Data centers requiring a robust 42U rack with high load capacity
• Network rooms needing secure enclosure for servers, switches, and patch panels
• IT professionals seeking a pre-assembled cabinet with easy cable management
• Applications where passive cooling is preferred to minimize noise and energy use

Key specifications

• Rack Type: Server Cabinet
• Rack Units: 42U
• Rack Width: 19 inch (48.3 cm)
• External Width: 800 mm
• External Depth: 800 mm
• External Height: 2055 mm
• Color: RAL 9005 (Jet Black)
• Front Door: Perforated Split Door (2-part)
• Rear Door: Perforated Split Door (2-part)
• Side Panels: Removable, Lockable
• Material: Steel
• Load Capacity: 1000 kg (static)
• Protection Class: IP20
• Cable Entry: Top and Bottom
• Mounting Rails: Adjustable Depth
• Ventilation: Passive (via perforated doors)
• Construction: Pre-assembled
• Security: Lockable front, rear doors and side panels
• Included Accessories: 4x leveling feet, 4x castors, 2x keys for doors, 2x keys for side panels, grounding kit
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure the cabinet is placed on a level surface and properly grounded. Use the adjustable mounting rails to accommodate equipment of varying depths. The passive ventilation design works best in environments with ambient temperatures below 35°C; for higher heat loads, consider active cooling solutions.
