EFB Elektronik PRO netwerkkast - lichtgrijs RAL 7035 - 33HE - 19 inch

The EFB Elektronik PRO Network Cabinet is a high-quality, freestanding 19-inch rack designed for professional network and server installations. With 33U of space, it provides ample room for organizing and securing your IT equipment. The cabinet features a robust self-supporting steel frame and a static load capacity of up to 800 kg, ensuring durability and reliability.

Advantages

This network cabinet offers excellent ventilation through its perforated rear door, ensuring optimal airflow for your equipment. The tempered glass front door allows for easy monitoring of LEDs and displays while maintaining security with a lockable design. Removable side panels provide convenient access for cable management and maintenance.

Suitable for

• Server rooms and data centers requiring a reliable 19-inch rack solution
• Network equipment such as switches, patch panels, and servers
• Professional IT environments where security and organization are paramount

Key specifications

• Rack Units: 33U
• Rack Standard: 19 inch (48.3 cm)
• External Dimensions: 1600 x 800 x 800 mm (H x W x D)
• Color: Light Grey (RAL 7035)
• Material: Steel

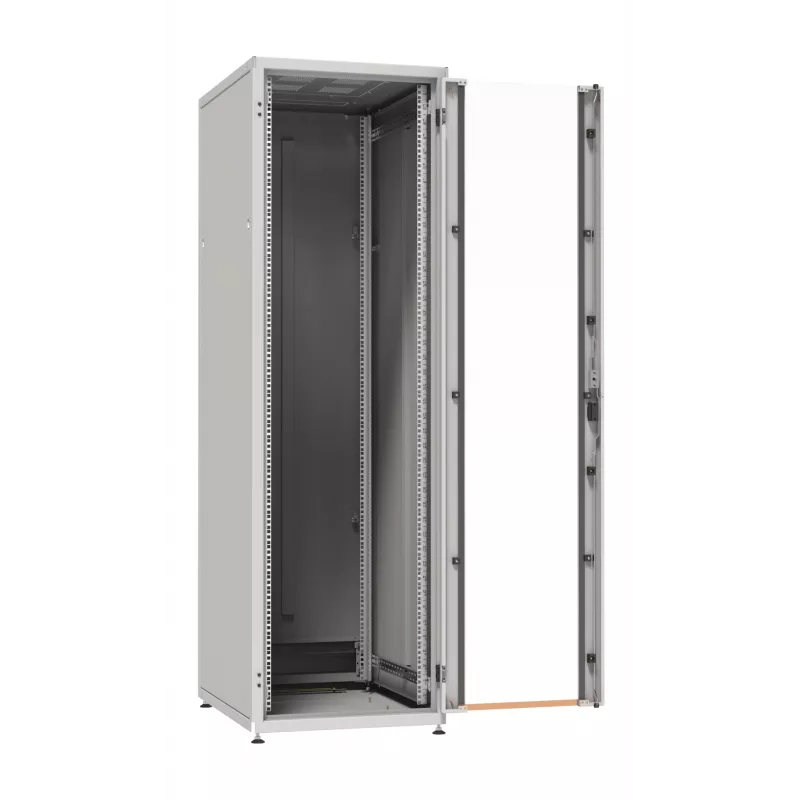

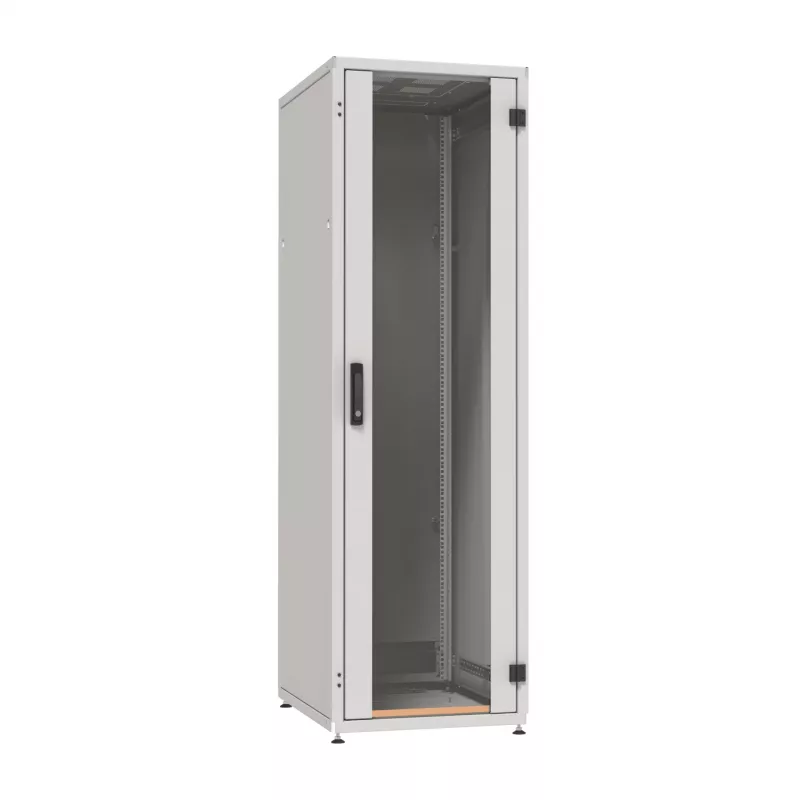

• Front Door: Tempered glass, lockable
• Rear Door: Perforated steel, lockable
• Side Panels: Removable, lockable
• Static Load Capacity: 800 kg
• Protection Class: IP20
• Cable Entry: Top and bottom with brush strips
• Mounting Rails: 4x 19-inch, depth-adjustable
• Feet/Castors: Levelling feet and castors included
• Maximum Installation Depth: 680 mm
• Assembly: Pre-assembled
• Ventilation: Passive through perforated rear door
• Compliance: RoHS, CE

Recommendations

This cabinet is ideal for businesses looking to expand their network infrastructure with a robust and secure enclosure. Its depth-adjustable mounting rails and ample cable entry points make it easy to customize for various equipment configurations.
