EFB Elektronik PRO netwerkkast - lichtgrijs RAL 7035 - 42HE - 19 inch

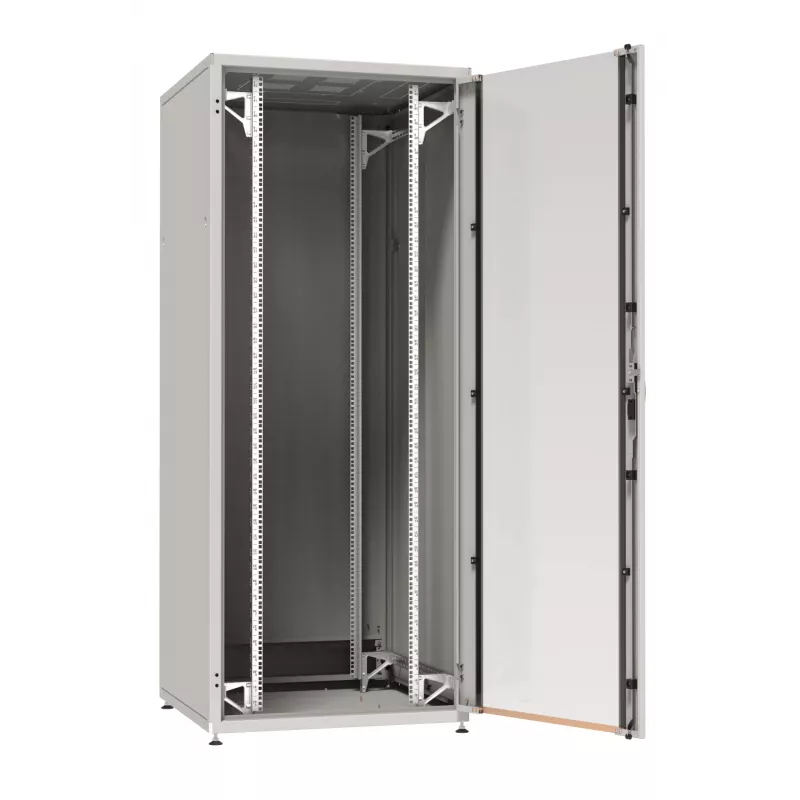

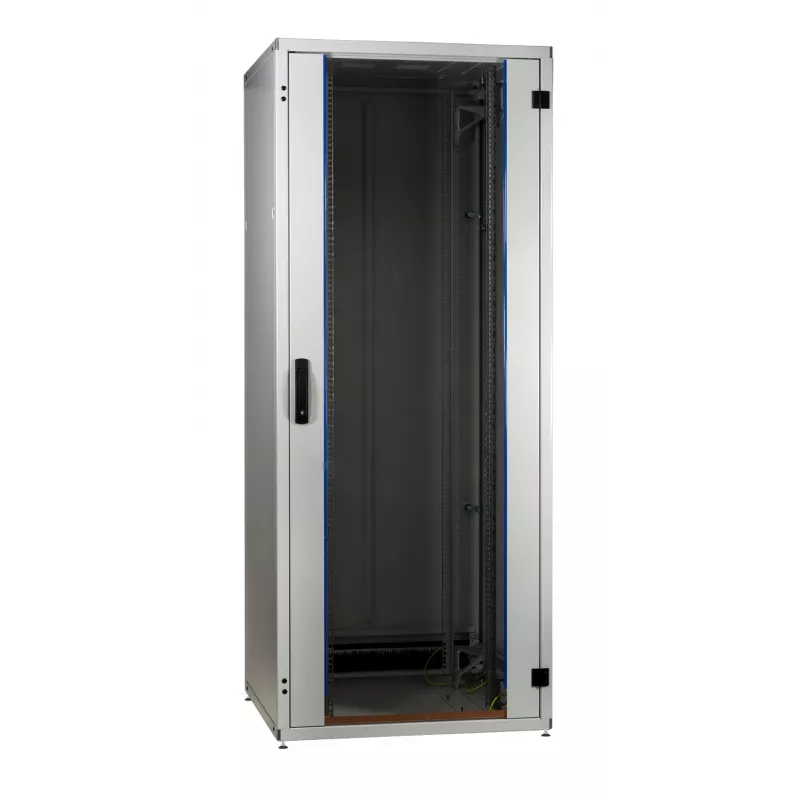

The EFB Elektronik PRO Network Cabinet is a high-quality, 42U freestanding rack designed for professional network and server environments. With a robust steel construction and a light grey RAL 7035 finish, this cabinet provides reliable housing for 19-inch equipment. It features a tempered glass front door and a perforated steel rear door, both lockable, ensuring security and optimal ventilation. The cabinet comes pre-assembled with adjustable mounting rails, removable side panels, and integrated grounding for easy installation and maintenance.

Advantages

This network cabinet offers exceptional static load capacity of up to 800 kg, making it suitable for heavy server and networking equipment. The lockable doors and side panels provide enhanced security, while the adjustable leveling feet and heavy-duty castors ensure stability and mobility. Passive ventilation through perforated doors helps maintain optimal operating temperatures, with optional active cooling support.

Suitable for

• Data centers and server rooms
• Network infrastructure for enterprises and SMEs
• IT equipment housing requiring high security and load capacity

Key specifications

• Rack Units: 42U
• Rack Standard: 19 inch (48.3 cm)
• External Dimensions: 800 x 800 x 2055 mm (W x D x H)
• Color: Light Grey (RAL 7035)
• Material: Steel
• Static Load Capacity: 800 kg
• Front Door: Tempered glass, lockable
• Rear Door: Perforated steel, lockable
• Side Panels: Removable, lockable
• Protection Class: IP20
• Cable Entry: Top and bottom with brush strips
• Mounting Rails: Adjustable depth, front and rear
• Construction: Pre-assembled
• Feet/Castors: Adjustable leveling feet and heavy-duty castors

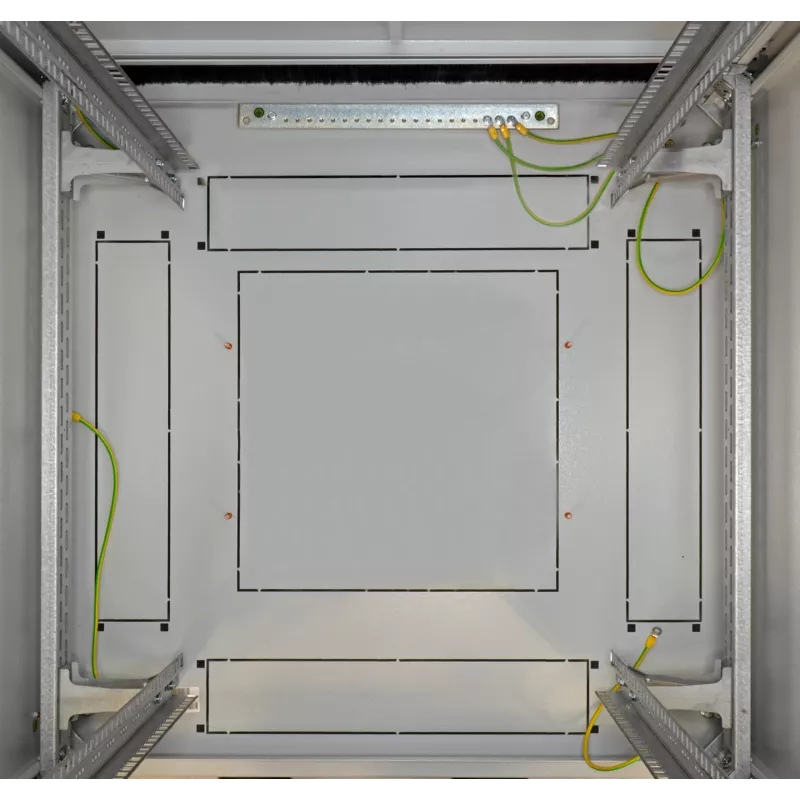

• Grounding: Integrated grounding kit

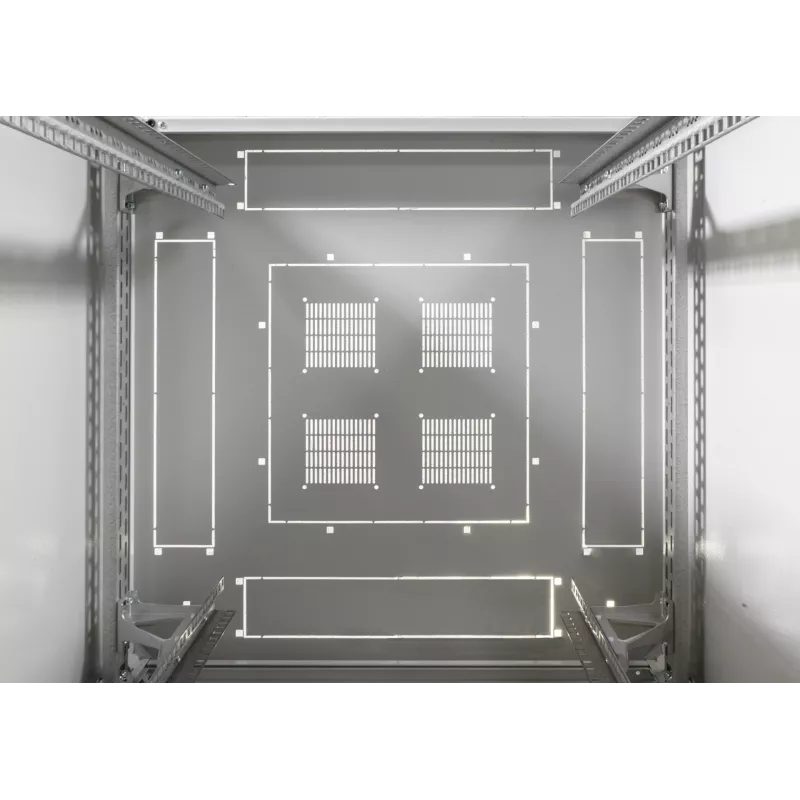

• Ventilation: Passive ventilation through perforated doors (active cooling optional)
• Compliance: RoHS, CE

Recommendations

This cabinet is ideal for professionals seeking a durable, secure, and spacious enclosure for their 19-inch rack equipment. Its high load capacity and flexible cable management make it a top choice for demanding IT environments.
