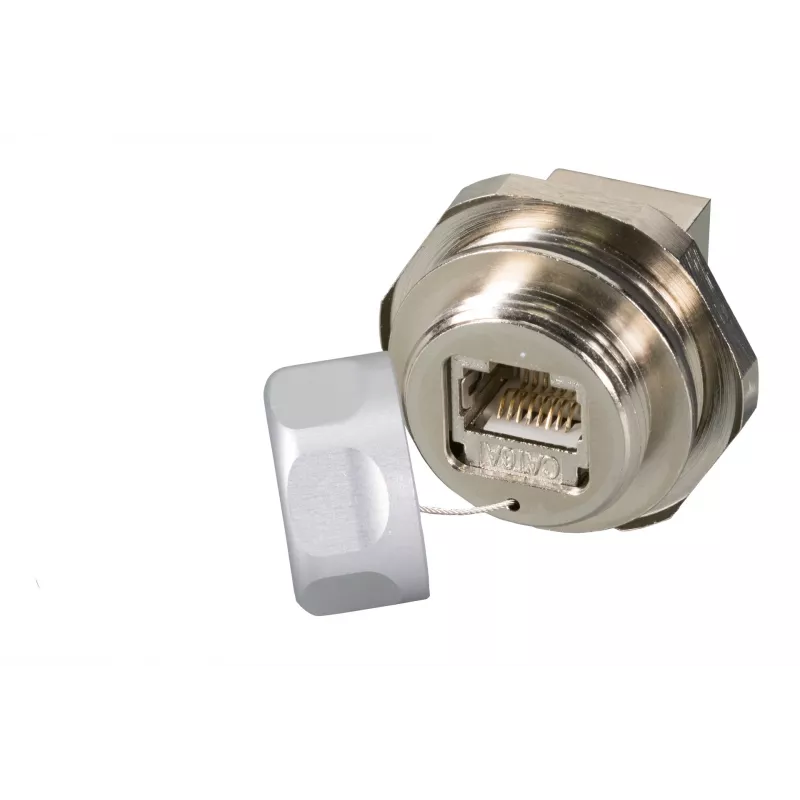

EFB Elektronik RJ45 Cat.6A IP67 doorvoerkoppeling, bus/bus, M25, service-poort (IP67DFKRJ45FLHS)

The EFB Elektronik IP67DFKRJ45FLHS is a robust RJ45 Cat.6A feed-through coupler designed for industrial Ethernet applications requiring high reliability and protection against harsh environments. This female-to-female coupler features an IP67 rating, ensuring dust-tight and waterproof performance, making it ideal for outdoor or demanding industrial settings. It supports 10 Gigabit Ethernet (10GBASE-T) with a bandwidth of up to 500 MHz, providing high-speed data transmission for critical networks.

Advantages

This coupler offers a secure and durable connection with gold-plated contacts for corrosion resistance and optimal signal integrity. Its shielded design (STP/FTP) minimizes electromagnetic interference, ensuring stable data transfer. The M25 thread allows for easy panel mounting, and the integrated service port provides convenient access for diagnostics or temporary connections without disrupting the main line.

Suitable for

• Industrial Ethernet networks in factories, warehouses, and outdoor installations
• Harsh environments where dust, moisture, or vibration are present
• Applications requiring IP67-rated connectivity, such as automation, transportation, and energy sectors
• Feed-through connections for bulkhead or junction box installations

Key specifications

• Product Type: RJ45 Feed-Through Coupler
• Ethernet Category: Cat.6A (Category 6A)
• IP Protection Rating: IP67
• Connector Type 1: RJ45 Jack (Female)
• Connector Type 2: RJ45 Jack (Female)
• Connector Gender: Female to Female
• Mounting Type: Panel Mount / Feed-Through (M25 thread)
• Supported Ethernet Standard: 10 Gigabit Ethernet (10GBASE-T)
• Shielding: Shielded (STP/FTP)
• Special Feature: Service Port
• Data Transfer Rate: Up to 10 Gbps
• Frequency Bandwidth: Up to 500 MHz
• Housing Material: Robust Industrial Grade Material
• Contact Plating: Gold-plated
• Operating Temperature: -20°C to +70°C
• Standards Compliance: RoHS, REACH
• Number of Ports: 1
• Application: Industrial Ethernet, Harsh Environments

Recommendations

For optimal performance, use with Cat.6A or higher shielded patch cables. Ensure proper sealing of the IP67 housing when mounted. This coupler is a reliable choice for extending network connections in challenging conditions.
