EFB Elektronik simplex jumper SC/APC-SC/APC 9/125µm OS2 LSZH geel 3,0mm 20m

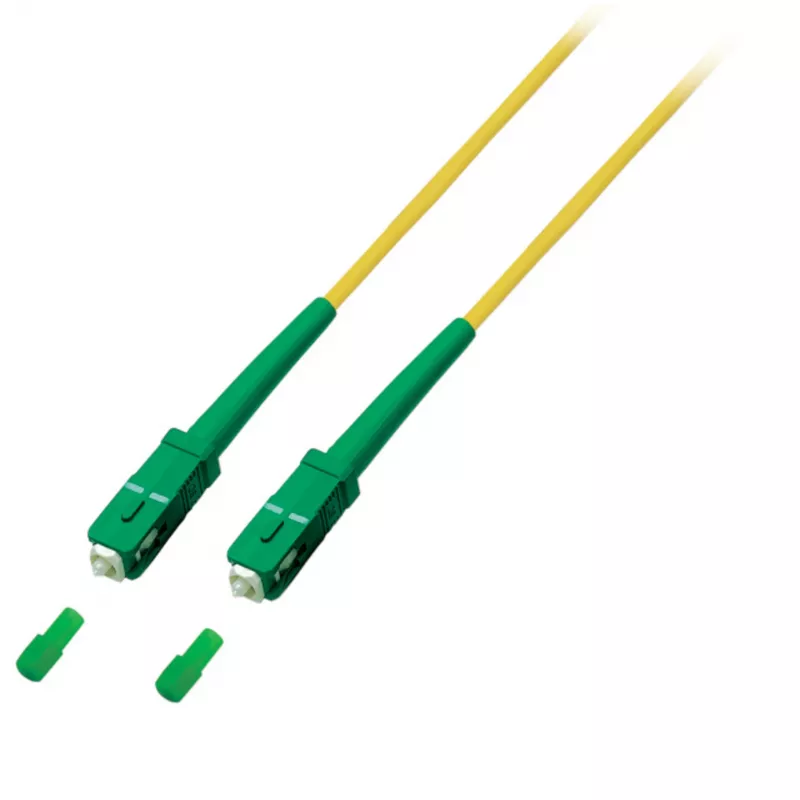

The EFB Elektronik Simplex Jumper is a high-quality fiber optic patch cable designed for single-mode applications. With SC/APC connectors on both ends, it ensures low insertion loss and high return loss, making it ideal for critical network infrastructures. The cable features a 9/125µm core/cladding, OS2 fiber type, and a durable LSZH jacket in yellow, with a diameter of 3.0mm and a length of 20 meters.

Advantages

This simplex jumper offers excellent performance with typical insertion loss ≤0.3 dB and return loss ≥60 dB. The LSZH jacket provides low smoke and zero halogen properties, enhancing safety in enclosed spaces. Its 3.0mm diameter ensures flexibility while maintaining durability.

Suitable for

• Data centers requiring reliable single-mode connections
• Telecommunications networks
• FTTH (Fiber to the Home) installations
• Local Area Networks (LAN) with fiber backbone

Key specifications

• Product Type: Fiber Optic Patch Cable
• Cable Configuration: Simplex
• Fiber Mode: Single-mode
• Fiber Type: OS2 (G.657.A1)
• Fiber Core/Cladding Diameter: 9/125 µm
• Connector Type A: SC/APC
• Connector Type B: SC/APC
• Connector Polish: APC (Angled Physical Contact)
• Cable Length: 20 m
• Cable Diameter: 3.0 mm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Insertion Loss (typical): ≤ 0.3 dB
• Return Loss (typical): ≥ 60 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius: 10 mm
• Compliance: RoHS, REACH, IEC 61754-4, TIA/EIA-604-3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC/APC interfaces and is suitable for both indoor and protected outdoor environments.
