Einhell mini-olienevelapparaat R 1/4 compressoraccessoire 4135002

Inline mini mist oiler with R 1/4" connection, rated for up to 10 bar operating pressure, keeps pneumatic tools lubricated for longer service life.

Overview

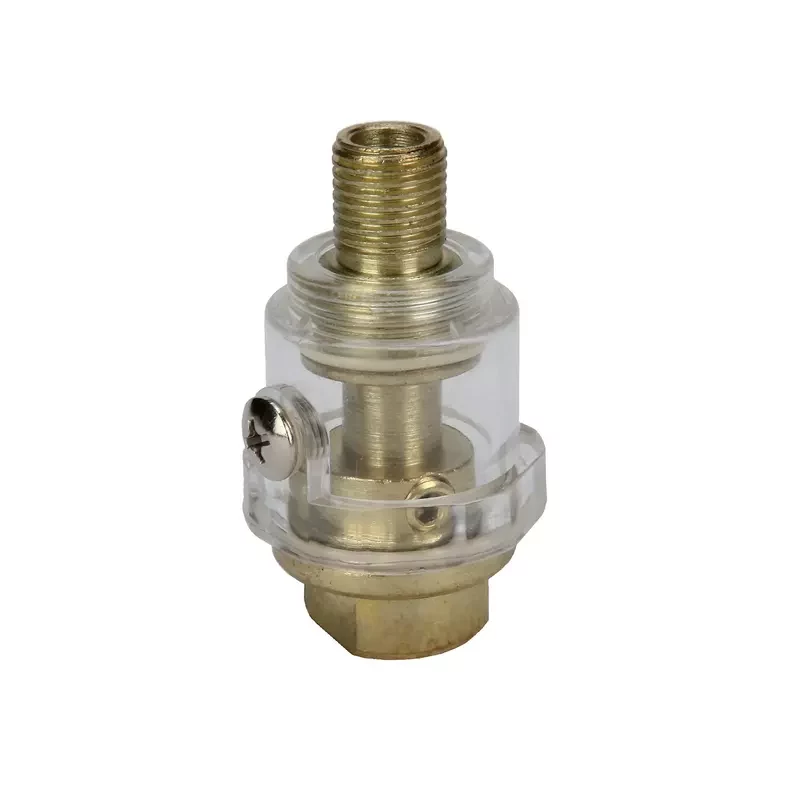

The Einhell Mini Mist Oiler 4135002 is a compact inline lubricator for pneumatic tools. It threads directly into the air line between the compressor hose and the tool, delivering a continuous oil mist to internal moving parts. The 15 ml transparent reservoir allows quick oil level checks, while the metal body withstands workshop conditions.

What stands out

• R 1/4" internal thread for standard air fittings
• Max. operating pressure 10 bar (145 PSI)
• Approx. 15 ml oil reservoir with clear sight window
• Compact metal and plastic construction
• Flow direction marked on housing for correct installation

Technical details

• Product type: Mini mist oiler / inline oiler
• Connection thread: R 1/4" (internal)
• Max. operating pressure: 10 bar
• Oil reservoir capacity: 15 ml
• Housing material: metal and transparent plastic
• Operating temperature range: 0 - 60 °C
• Recommended oil: pneumatic tool oil

Our verdict

A straightforward inline oiler that fits standard 1/4" air lines and keeps tools running smoothly with minimal maintenance.
