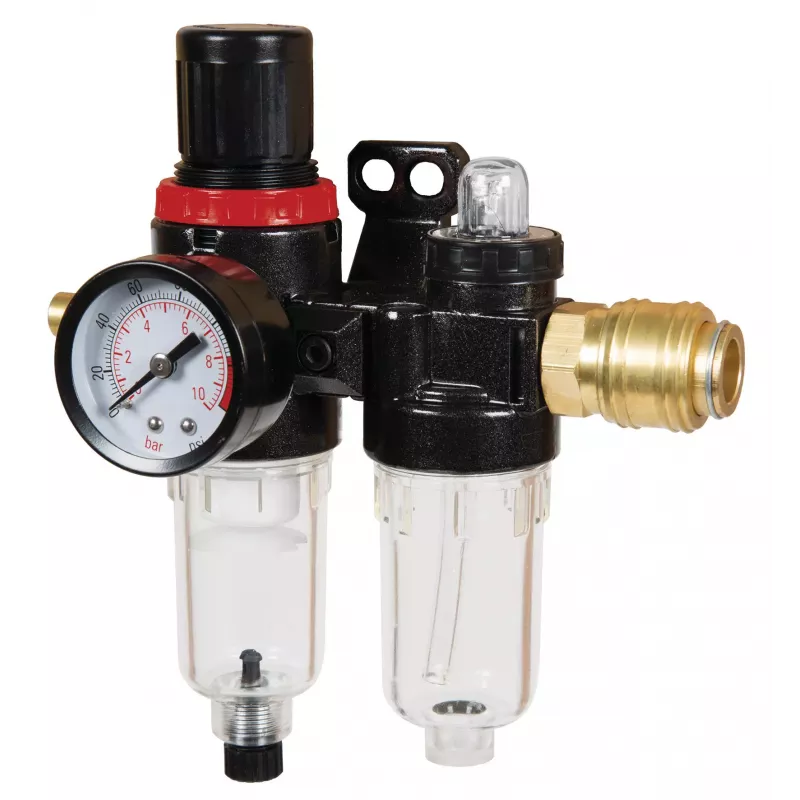

Einhell 4135001 perslucht filterregelaar met olier, R 1/4

Einhell 4135001 combines a filter pressure regulator and an adjustable oiler for compressed-air tools. The maximum inlet pressure is 10 bar and the regulated pressure can be set up to 8 bar. This version has an R 1/4-inch connection and is supplied with a threaded nipple and quick-release coupling.

The filter separates solid particles and condensed moisture from the air. The regulator sets the working pressure, which can be read on the integrated gauge in bar and psi. The separate oiler adjustment controls the amount of pneumatic-tool oil introduced into the airflow for tools that require lubrication.

Transparent inspection bowls allow their contents to be checked, and a drain screw is provided for condensate. The unit can be fitted at the compressor outlet in the marked airflow direction or mounted on a wall. Select the working pressure and lubrication according to the connected tool instructions. The compressor, air hose and pneumatic tool are separate equipment.
