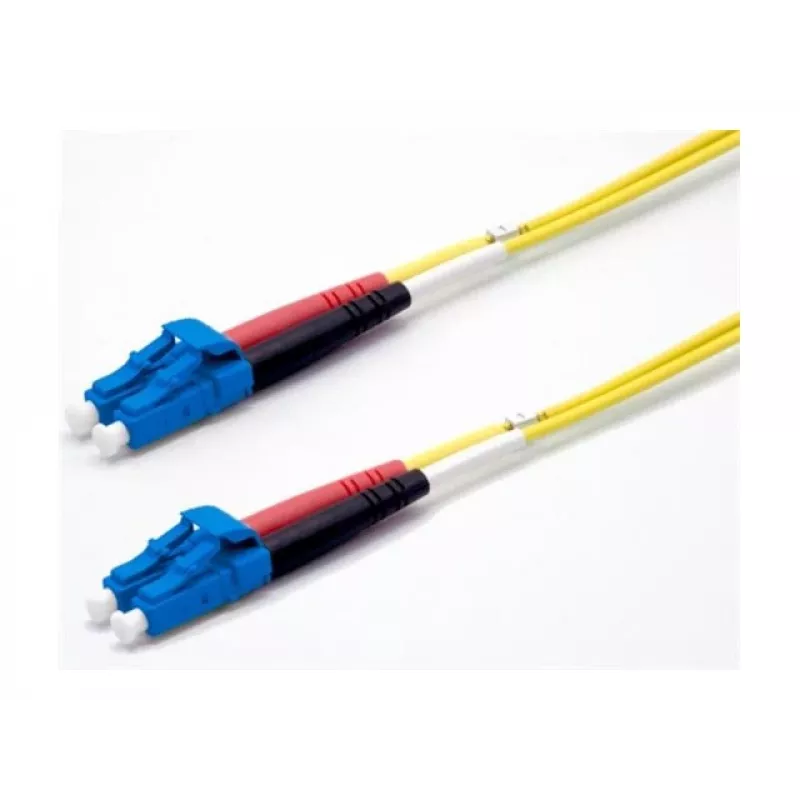

Ekivalan OS2 LC/LC duplex singlemode LWL-patchkabel 0,5m geel COZ008LCLC2SJ0005A

In data centres and high-speed networks, signal loss and reflection can degrade performance. This OS2 single-mode duplex patch cable delivers low insertion loss and high return loss for reliable connections.

Who is it for

Network engineers and IT professionals who need a dependable fibre link for 10G/40G/100G Ethernet, Fibre Channel, or other high-bandwidth applications.

Main features

• OS2 single-mode fibre, 9/125 µm core/cladding
• LC duplex to LC duplex connectors with ceramic ferrules
• 0.5 m length, yellow LSZH jacket
• Insertion loss ≤ 0.3 dB, return loss ≥ 50 dB
• Operating temperature -20°C to 70°C

Specifications

• Cable type: Fibre optic patch cable, duplex
• Fibre mode: Single-mode OS2
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Connector 1: LC duplex
• Connector 2: LC duplex
• Cable length: 0.5 m
• Jacket material: LSZH
• Jacket colour: Yellow
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Attenuation at 1310 nm: ≤ 0.35 dB/km
• Attenuation at 1550 nm: ≤ 0.25 dB/km
• Operating temperature: -20°C to 70°C
• Minimum bend radius: 10 mm (dynamic)

Tips

Use with OS2-compatible transceivers and patch panels. Avoid exceeding the minimum bend radius to maintain signal integrity.
