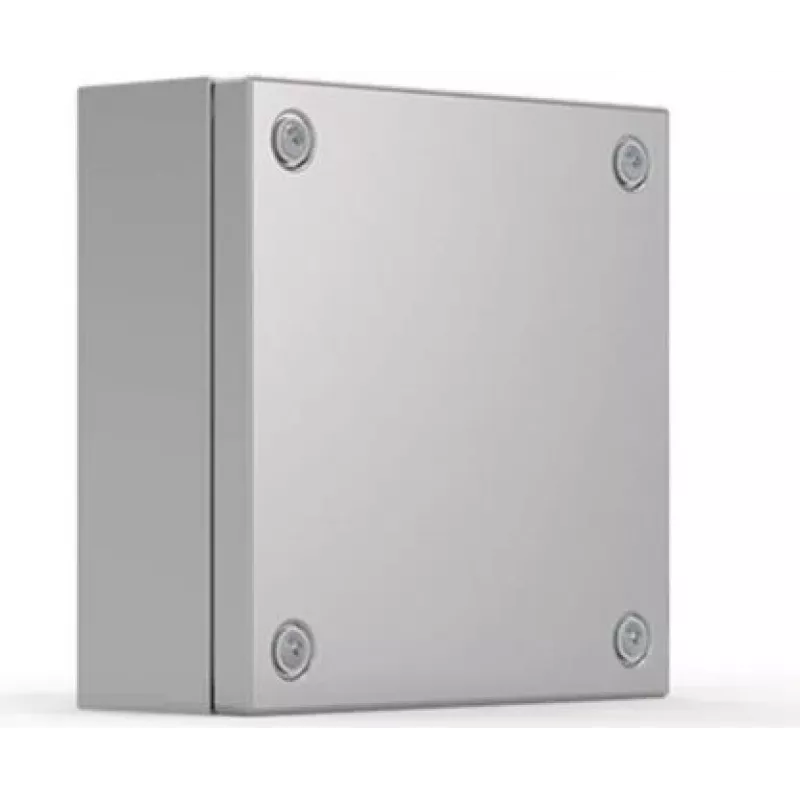

Eldon nVent SSTB151508 roestvrijstalen aansluitkast 150x150x80 mm IP66 IK10

The Eldon nVent SSTB151508 is a robust stainless steel terminal/junction box designed for demanding industrial environments. Manufactured from AISI 304 stainless steel with a brushed finish, this enclosure offers exceptional corrosion resistance and durability. With external dimensions of 150 x 150 x 80 mm (H x W x D) and a material thickness of 1.2 mm, it provides reliable protection for electrical connections and components.

Advantages

High ingress protection rating of IP66 ensures dust-tight and protection against powerful water jets. Impact resistance IK10 guarantees protection against mechanical impacts up to 20 joules. NEMA 4X rating confirms suitability for indoor and outdoor use in corrosive environments. The screw-fixed lid with polyurethane gasket ensures a secure seal. Earthing provisions on body and lid enhance safety.

Suitable for

• Industrial automation and control systems
• Corrosive or hygienic environments (e.g., food processing, chemical plants)
• Outdoor installations requiring weatherproof protection
• Electrical junction and terminal boxes

Key specifications

• Material: AISI 304 Stainless Steel
• External dimensions (H x W x D): 150 x 150 x 80 mm
• Protection degree: IP66
• Impact resistance: IK10
• NEMA rating: NEMA 4X
• Lid type: Screw-fixed
• Gasket material: Polyurethane
• Material thickness: 1.2 mm
• Finish: Brushed
• Mounting plate material: Galvanized steel
• Number of lid screws: 4
• Operating temperature range: -40°C to +80°C
• Certifications: CE, UL, cUL, EAC, RoHS

Recommendations

For optimal installation, ensure proper cable entry and use appropriate cable glands to maintain IP66 rating. The enclosure is suitable for use with standard mounting plates and accessories from Eldon nVent.
