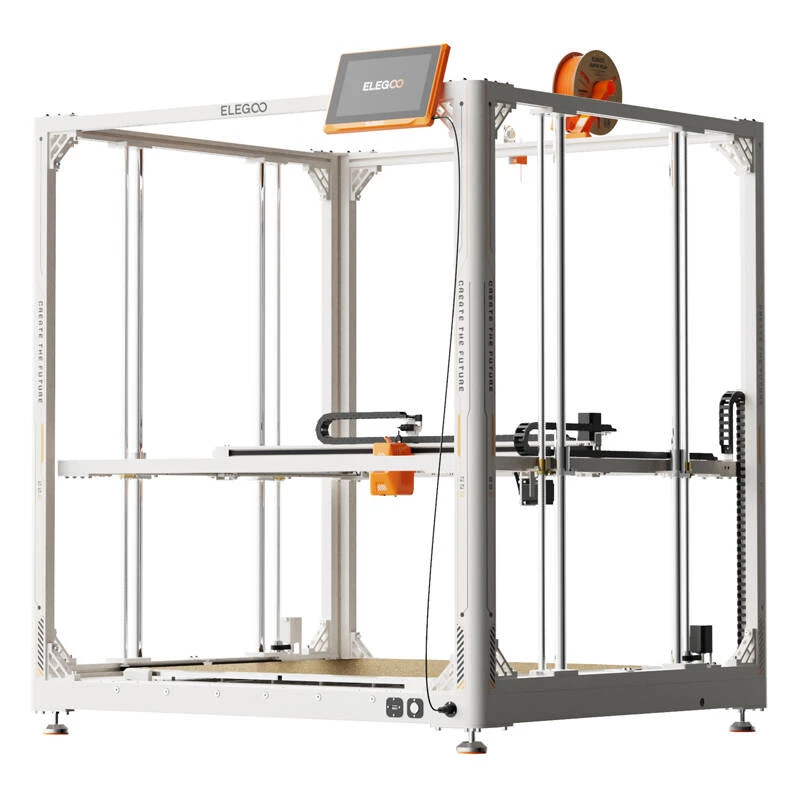

ELEGOO OrangeStorm Giga 3D-printer, 800 x 800 x 1000 mm (50.201.019300)

The ELEGOO OrangeStorm Giga is a giant industrial-grade 3D printer designed for extremely large projects, with a workspace of 800 x 800 x 1000 mm. It features a 64-bit quad-core processor, a maximum print speed of 300 mm/sec (recommended 150 mm/sec), and a heating platform made of four independent PEI tiles measuring 410 x 410 mm each that can be uniformly heated to 100°C in just 17 minutes.

Key features

• Giant industrial-grade 3D printer for extremely large projects
• Workspace of 800 x 800 x 1000 mm
• Heating platform with four independent PEI tiles measuring 410 x 410 mm each
• Platform can be uniformly heated to 100°C in just 17 minutes
• Automatically identifies and heats only the active part of the platform for energy savings
• 64-bit quad-core processor
• Maximum print speed of 300 mm/sec (recommended 150 mm/sec)
• Supports printing with four nozzles simultaneously
• Cooling fans on both sides of the chassis with intelligent control
• Linear guides on the X and Y axes
• Z-axis with advanced guiding mechanism
• Sturdy steel base and non-slip feet
• Print head reaches 300°C
• Chrome-zirconium copper nozzle and 60W ceramic heater
• PID calibration function and automatic resonance compensation

Specifications

• Brand: Elegoo
• MPN: 50.201.019300
• Workspace: 800 x 800 x 1000 mm
• Heating platform: four independent PEI tiles, each 410 x 410 mm
• Platform heating: up to 100°C in 17 minutes
• Processor: 64-bit quad-core
• Maximum print speed: 300 mm/sec
• Recommended print speed: 150 mm/sec
• Number of nozzles: four, simultaneous printing supported
• Print head maximum temperature: 300°C
• Nozzle material: chrome-zirconium copper
• Heater: 60W ceramic
• Supported materials: PLA, PETG, TPU, Nylon
• Axes: linear guides on X and Y; advanced guiding mechanism on Z
• Base: steel with non-slip feet
