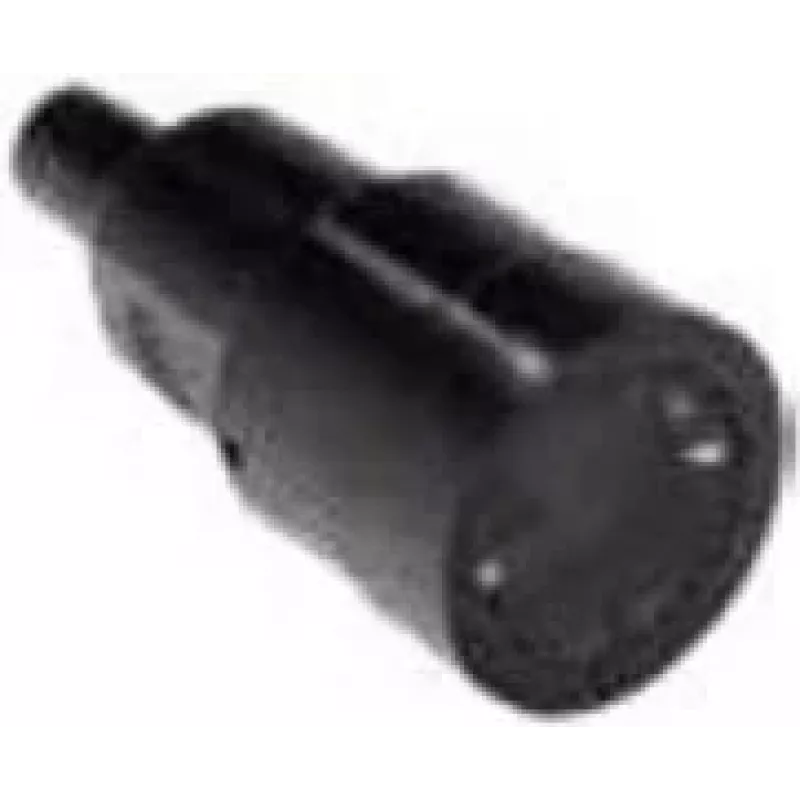

Elektrische connector-koppeling Bachmann 913.175

The Bachmann 913.175 electrical socket coupler is a compact, robust adapter for connecting two power cables. Rated for 16 A, it provides a standardized clip-in function and is built for industrial use with surface clamps and a solid rubber insert that includes an earthing contact. It accepts cables up to H07RN-F 3G 2.50 mm2 and operates reliably in temperatures from -40 °C to 70 °C.

Advantages

This coupler features a durable industrial design with surface clamps for secure mounting, a solid rubber insert with integrated earthing contact for enhanced safety, and a standardized clip-in function for easy installation. Its temperature range and compatibility with H07RN-F 3G 2.50 mm2 cables make it suitable for a variety of environments.

Suitable for

• Extending or joining 16 A power lines
• Industrial and workshop power distributions
• Temporary power connections on sites and events
• Environments requiring a wide operating temperature range (-40 °C to 70 °C)

Key specifications

• Brand: Bachmann
• Model / MPN: 913.175
• EAN: 4016514005611
• Rated current: 16 A
• Cable compatibility: up to H07RN-F 3G 2.50 mm2
• Temperature range: -40 °C to 70 °C
• Insert: solid rubber with earthing contact
• Mounting: surface clamps, clip-in function

How to use

Prepare the cables by stripping to the recommended length and verify they match H07RN-F 3G 2.50 mm2 or similar. Open the coupler, insert the cables into the rubber insert ensuring correct phase and earth alignment, and secure them with the surface clamps. Engage the clip-in function to lock the halves together. Verify the earth contact is connected and perform a continuity or insulation check before applying load.

Recommendations

Use the coupler only with compatible cables and within the specified temperature range. Ensure connections are tightened to manufacturer torque or tightness specifications and perform routine inspections for wear, damage, or ingress to maintain safe operation.
