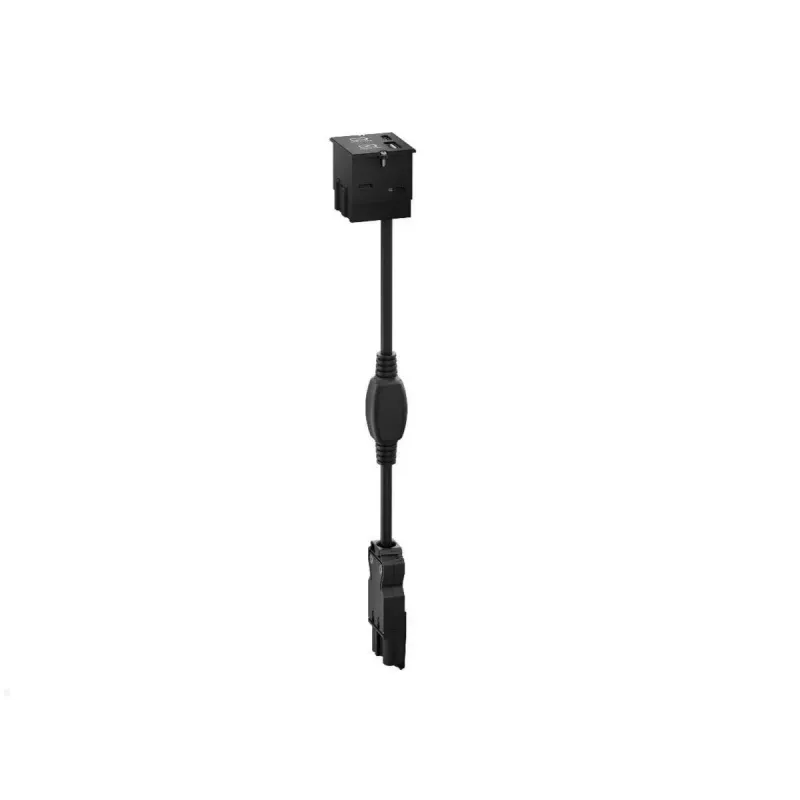

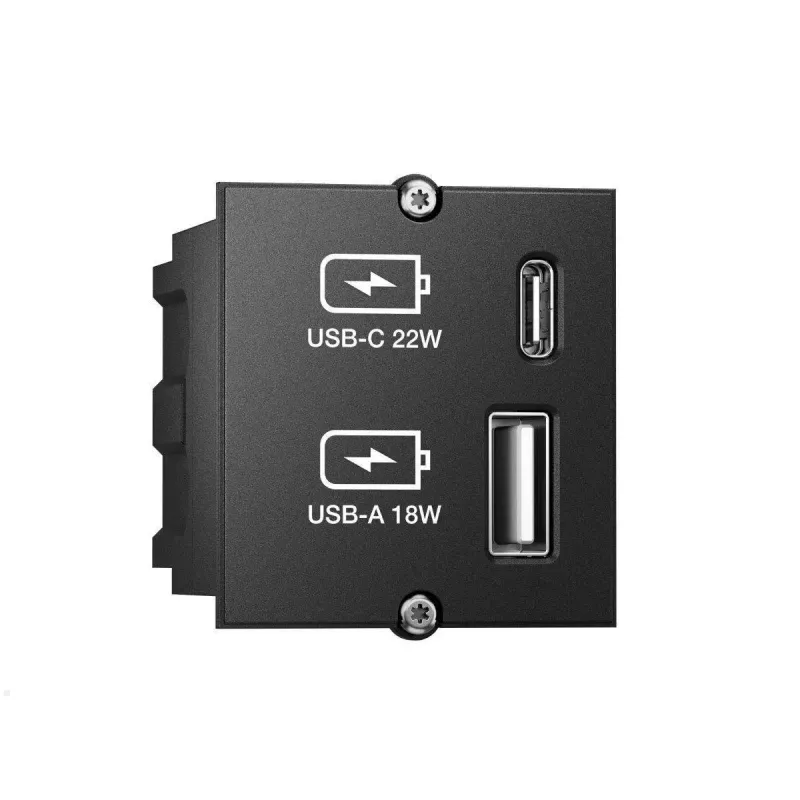

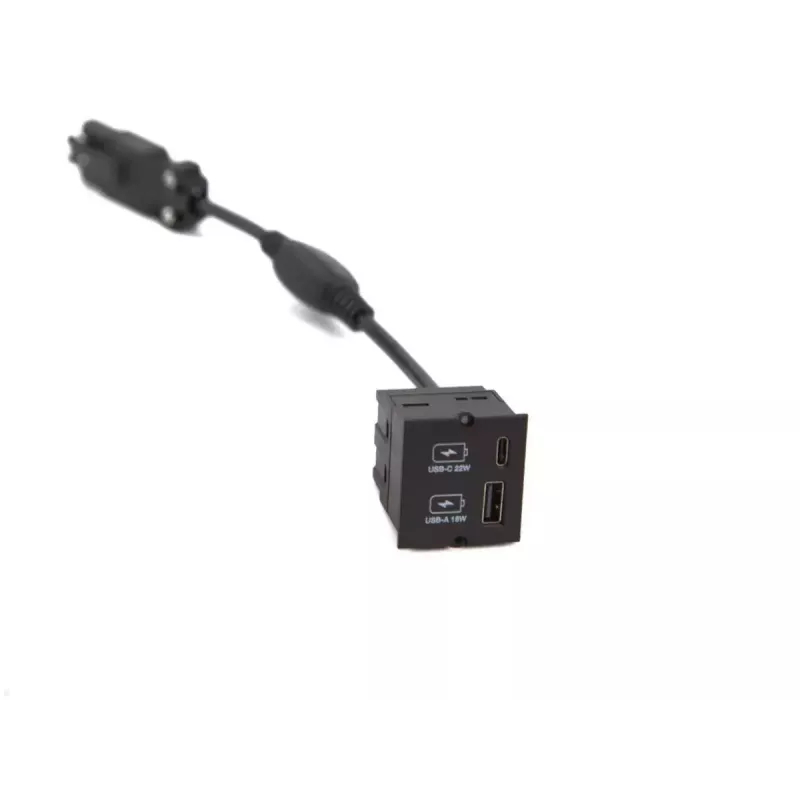

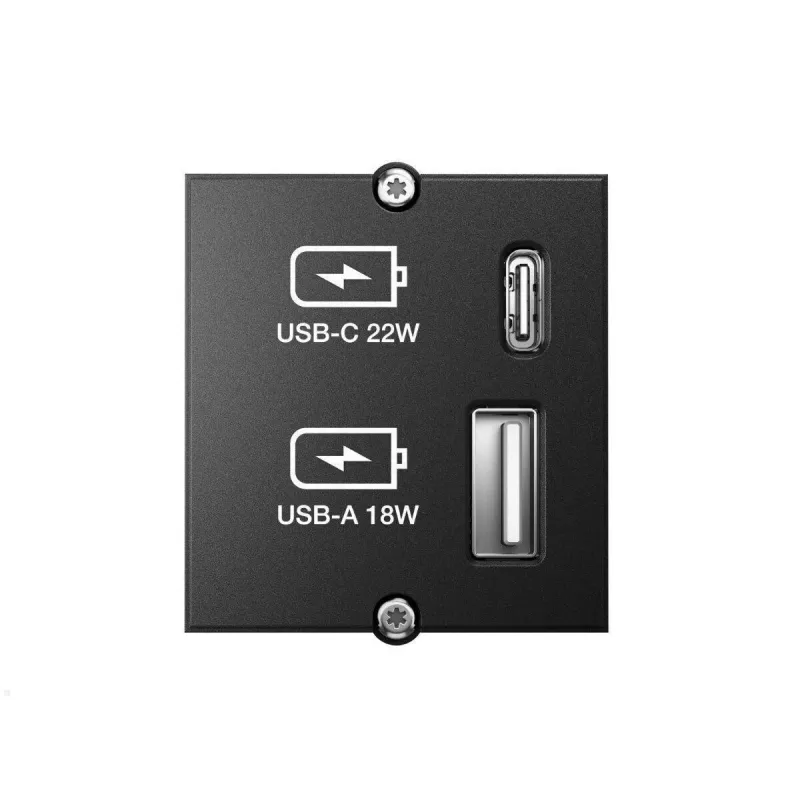

Stopcontactmodule USB-A + USB-C Bachmann 917.227 zwart IP20 250V

The Bachmann 917.227 socket module integrates one USB-A and one USB-C charging port in a compact black housing. Designed for indoor use (IP20), it supplies up to 22W and supports USB Power Delivery (PD) and Qualcomm Quick Charge for faster charging of smartphones and tablets without external power supplies. The module is powered via the Wieland GST18i3 connector and is intended as a retrofit custom module for Bachmann systems and frames.

Advantages

The unit combines USB-A and USB-C ports in a single, space-saving module compatible with Bachmann custom module holders. Integrated protection features include overcharge, overvoltage, short-circuit and overheating protection. Fast-charging technologies (USB PD and Qualcomm Quick Charge) are supported, and the module uses the Wieland GST18i3 power connection common in Bachmann installations.

Suitable for

• Charging smartphones (USB-A and USB-C)
• Charging tablets such as Apple iPad or Samsung Galaxy Tab
• Retrofit installations into Bachmann CONI, POWER FRAME, DESK 1, DESK 2 and similar frames
• Indoor workspaces and meeting rooms with IP20 requirements

Key specifications

• Model: Bachmann 917.227
• Ports: 1x USB-A, 1x USB-C
• Output power: up to 22W
• Protection: overcharge, overvoltage, short-circuit, overheating
• Power connection: Wieland GST18i3
• Rated voltage: 250 V, 50/60 Hz
• Colour: Black
• Ingress protection: IP20 (indoor use)

How to use

Install the module into a compatible Bachmann custom module holder or frame and connect it to the mains via the Wieland GST18i3 device connector. Plug a USB-A or USB-C cable into the appropriate port and connect your device. Charging will be managed automatically by the module’s PD/QC circuitry and built-in protection features. Do not use the module in wet or outdoor environments due to the IP20 rating.

Recommendations

Use certified USB cables and connect devices directly to the module. Avoid placing the module where it may be exposed to liquids or excessive heat. For retrofit installations, verify compatibility with the chosen Bachmann holder and ensure the Wieland GST18i3 connector is installed according to local electrical regulations.
