Elektrische verdeeldoos DeLOCK 86243

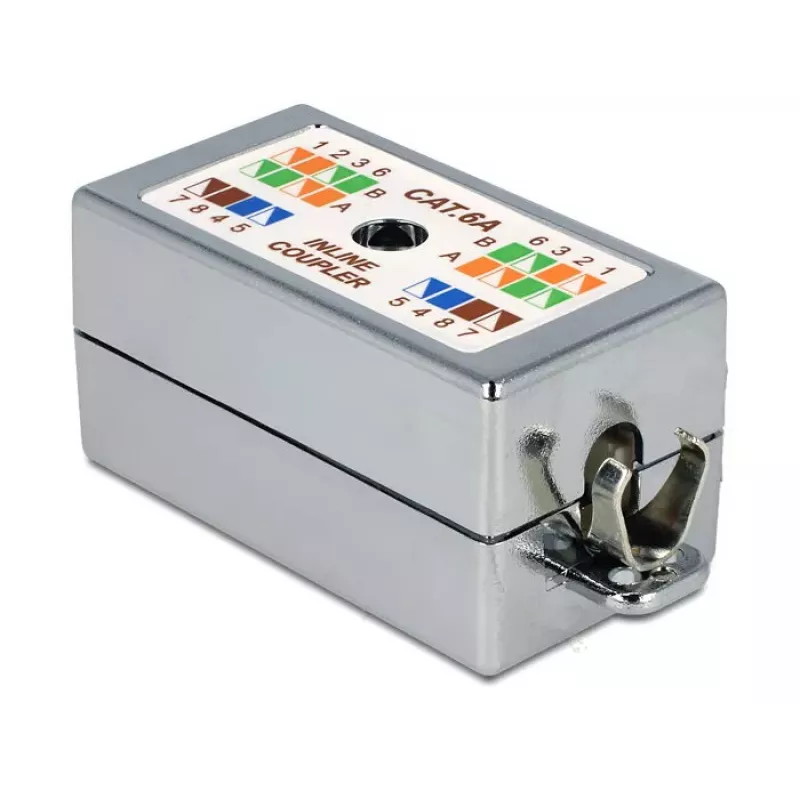

The DeLOCK 86243 electrical junction box allows extending or repairing two network cables without additional connectors. It has a compact design and a silver finish, suitable for discreet integration into various electrical installations. The unit supports both punch-down (LSA) connections and tool-free termination, offering flexibility during installation.

Advantages

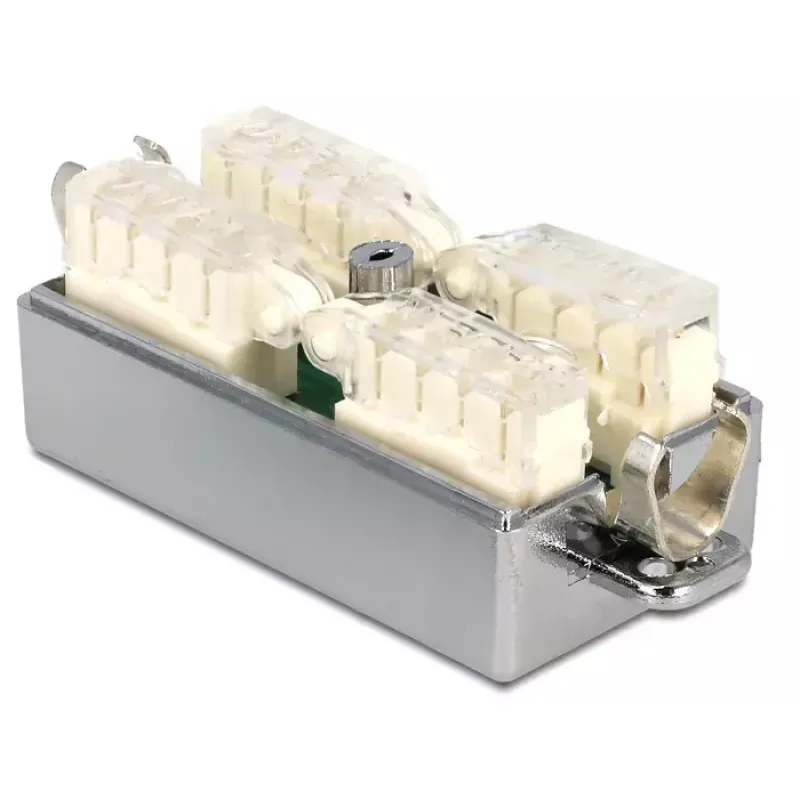

The junction box supports direct connection of two cables, eliminating the need for extra connectors. LSA blocks enable reliable punch-down terminations, while an alternative tool-free option allows quick installations. Its small dimensions and silver colour facilitate unobtrusive placement in electrical setups.

Suitable for

• Extending or repairing two network cables
• Compact or confined installation spaces
• Sites requiring either punch-down or tool-free connections

Key specifications

• Brand: DELOCK
• Model / MPN: 86243
• EAN: 4043619862436
• Product colour: Silver
• Width: 25.8 mm
• Depth: 48 mm
• Height: 24.7 mm

How to use

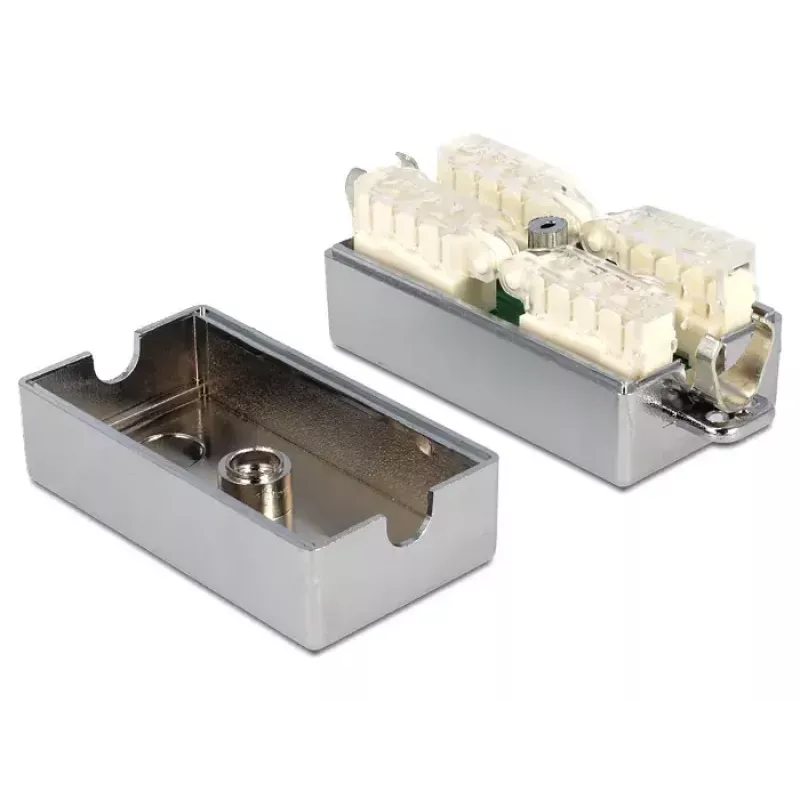

Open the junction box and position the cable ends into the LSA blocks or the tool-free terminals according to the cable pair order. For punch-down connections, use a compatible punch down tool to terminate each conductor into the LSA contacts. For the tool-free option, insert and secure the conductors as indicated by the housing. Close the enclosure to protect the terminations and mount the box in the desired location.

Recommendations

Ensure cables are stripped to the correct length and follow standard wiring colour codes. When using the punch-down method, verify each conductor is fully seated in the LSA contacts. Avoid exposing the junction box to moisture and install it in a dry, accessible location.
