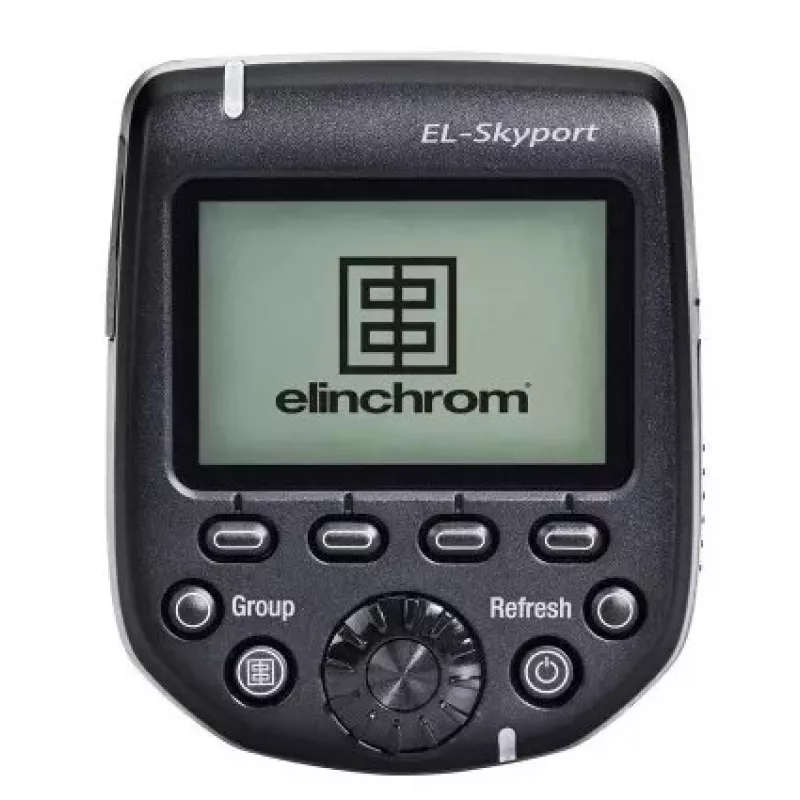

Elinchrom Transmitter PRO camera-datakabel 200 m zwart

The Elinchrom Transmitter PRO camera data transmitter 200 m in black is a wireless controller for Elinchrom lighting systems that provides camera-to-flash communication up to 200 m outdoors and 60 m indoors. It supports TTL, Hi‑Sync, HSS and Overdrive Sync functions, offers a large LCD for real-time information, secure hotshoe mounting and firmware updates via USB for compatibility with future cameras.

Advantages

The transmitter supports TTL for automatic exposure control and Hi‑Sync/HSS for high‑speed shutter synchronization up to 1/8000 s. Overdrive Sync (ODS) allows fine tuning of Hi‑Sync timing in 0.1 ms steps between 0.1 ms and 5.0 ms. Visual Control displays and controls up to 10 Elinchrom units in manual mode and up to 4 groups in TTL mode. A large LCD shows remote flash power in manual mode and exposure values in TTL mode, while a secure hotshoe provides stable mounting. The unit offers up to 200 m outdoor and 60 m indoor range, 20 channels and 4 groups (40 combined in speed mode), and firmware updates via USB.

Suitable for

• Studio portrait and fashion photography using Elinchrom lighting
• On‑location shoots and outdoor photography requiring wireless control up to 200 m
• High‑speed flash work or creative shallow‑depth effects requiring HSS/Hi‑Sync
• Workflow that benefits from TTL auto exposure with manual override

Key specifications

• Model: Elinchrom Transmitter PRO (black), MPN 19337
• Wireless range: up to 200 m outdoors / 60 m indoors
• Channels/groups: 20 channels & 4 groups (speed mode combines to 40 channels)
• Sync modes: TTL, Hi‑Sync (up to 1/8000 s), HSS (up to 1/8000 s), ODS (0.1–5.0 ms in 0.1 ms steps)
• Visual Control: up to 10 units in manual, up to 4 groups in TTL
• Display: large LCD showing remote power and exposure values
• Mounting: secure hotshoe with sure‑lock foot
• Firmware: updateable via USB

How to use

Attach the transmitter to your camera’s hotshoe and secure it with the sure‑lock mounting foot. Power on the transmitter and compatible Elinchrom units; select matching channel and group settings. For automatic exposure, enable TTL on both camera and transmitter; for high‑speed synchronization choose Hi‑Sync or HSS as required and, if needed, fine‑tune Hi‑Sync timing with ODS in 0.1 ms increments. Use the Visual Control and the LCD to verify and adjust remote flash power and group configuration. Connect to a computer via USB to install firmware updates when available.

Recommendations

Use matching firmware on transmitter and flash units for stable operation, select appropriate channels to avoid interference in multi‑photographer environments, and test Hi‑Sync or HSS settings at target shutter speeds before critical shoots.
