Monitor ELO 2202L 22 inch FHD capacitieve 10-touch USB anti-glare zero-bezel standvoet

The Elo 2202L is a 22-inch FHD touchscreen monitor with capacitive 10-point touch, anti-glare coating and a zero-bezel design. Built on Elo's 02-Series platform, this flat 21.5" (16:9) display delivers full HD (1920 x 1080) image clarity and a responsive touch experience suitable for point-of-sale, information kiosks, signage and hospitality environments. The unit includes a USB connection, an integrated USB hub, built-in speakers and supports VESA mounting for flexible installation.

Advantages

The monitor uses Elo's TouchPro® projected capacitive technology to provide accurate multi-touch response and wide viewing angles. Its compact, clean design and anti-glare panel reduce reflections while maintaining high contrast and color clarity. The zero-bezel front and included peripherals support make the display adaptable for both customer- and staff-facing interactions. Energy-efficient LED backlighting and an integrated USB hub simplify connectivity and deployment.

Suitable for

• Point-of-sale terminals and cashier workstations
• Self-service kiosks and restaurant ordering
• Interactive information displays and digital signage
• Hospitality check-in and guest-facing interfaces

Key specifications

• Display diagonal: 21.5" (marketed as 22")
• Resolution: 1920 x 1080 (Full HD)
• Touch technology: Projected capacitive (PCAP), up to 10 touches
• Aspect ratio: 16:9; Screen shape: flat
• Backlight: LED; Typical contrast ratio: 1000:1
• Response time: 14 ms
• Connectivity: USB (built-in hub, 4 downstream ports)
• Features: Anti-glare coating, zero-bezel front, built-in speakers
• Mounting: VESA compatible; Stand included

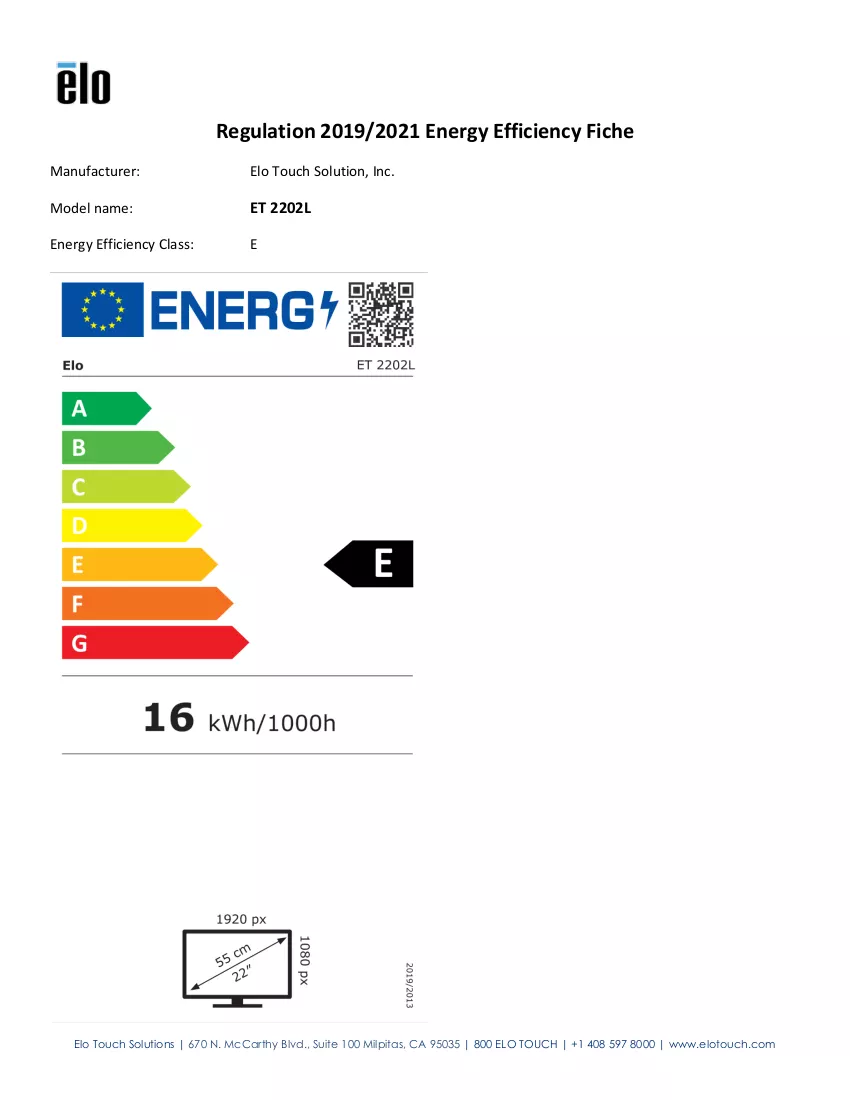

• Energy class (SDR): E; Energy consumption (SDR) per 1000 h: 16 kWh
• Colour: Black; MPN: E159758

How to use

Place or mount the Elo 2202L using the included stand or a compatible VESA mount. Connect the display to a host system via the USB interface for touch input and to the video source for the video signal. Use the anti-glare touchscreen like a tablet: taps, multi-touch gestures and swipes are all supported up to 10 simultaneous touches. Attach optional Elo Edge Connect peripherals (fingerprint scanner, MSR, barcode scanner, NFC) to the monitor edge to extend functionality for payments, identification or scanning tasks.

Recommendations

For optimal performance, install the monitor in locations with controlled ambient lighting to minimize direct glare despite the anti-glare coating, keep the firmware and drivers up to date and use compatible peripherals certified for Elo Edge Connect to ensure reliable operation in retail and hospitality environments.
