Monitor Elo Touch Solutions 2702L 27 inch touchscreen LCD 1920 x 1080

The Elo 2702L is a 27-inch touchscreen LCD monitor (1920 x 1080, Full HD) designed for retail, hospitality and signage environments. It features a flat 27" TFT LCD panel with a brightness of 300 cd/m², integrated speakers, VESA mounting compatibility and Elo's TouchPro® PCAP touch technology supporting up to 10 touches. The monitor is supplied in a compact black housing that allows flexible mounting and peripheral attachment via Elo Edge Connect™ to create tailored solutions for point-of-sale, self-service and information displays.

Advantages

The 2702L combines a Full HD 1920 x 1080 resolution and a 27-inch IPS-class viewing experience with Elo's projected capacitive touch for accurate multi-touch input and high image clarity. Its slim, clean design supports multiple mounting options (stands, poles, wall or VESA) and the Elo Edge Connect system permits adding up to four peripherals at the display edge. Built-in speakers and a robust construction back the product with a standard three-year warranty, with an optional extension to five years.

Suitable for

• Point-of-sale terminals and retail checkout
• Self-service kiosks and restaurant ordering
• Information displays and digital signage
• Hospitality guest check-in and interactive menus

Key specifications

• Display diagonal: 27"
• Resolution: 1920 x 1080 (Full HD)
• Panel type: TFT LCD, flat screen
• Touch technology: TouchPro® PCAP, up to 10 touches
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1000:1
• Response time: 14 ms
• Built-in speakers: Yes
• VESA mounting: Yes
• Colour: Black

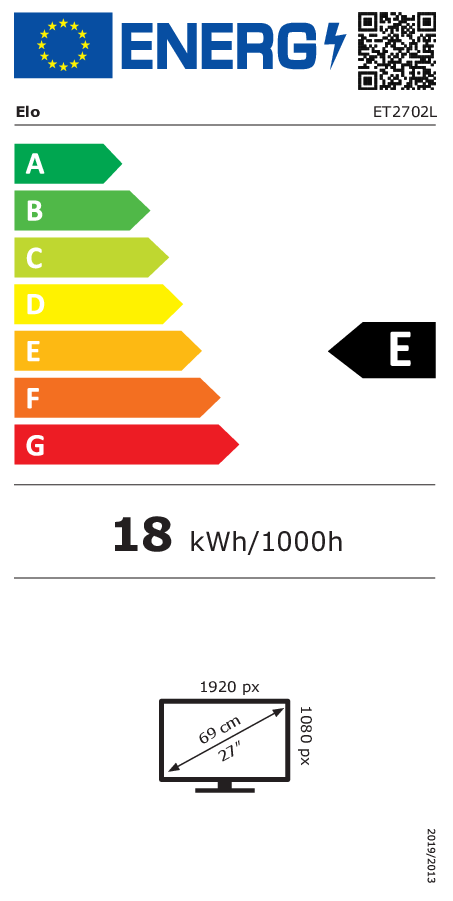

• Energy class (SDR): E; consumption 18 kWh/1000 h

How to use

Install the Elo 2702L using the preferred mounting option: the included stand, pole or wall/VESA mount. Connect power and video using the supported ports and enable touch by installing required drivers on the host system if necessary. Attach peripherals to the Elo Edge Connect interface at the display edge to add customer-facing devices or diagnostic modules. Configure display settings (brightness, orientation, touch calibration) through the on-screen menu or host software to meet the installation environment.

Recommendations

For retail and hospitality deployments, position the monitor at comfortable reach and viewing angle for users and calibrate touch sensitivity after installation. Use Elo-approved peripherals with Edge Connect and follow Elo's maintenance guidelines to ensure reliable operation. Consider the optional 5-year warranty extension for long-term commercial installations.
