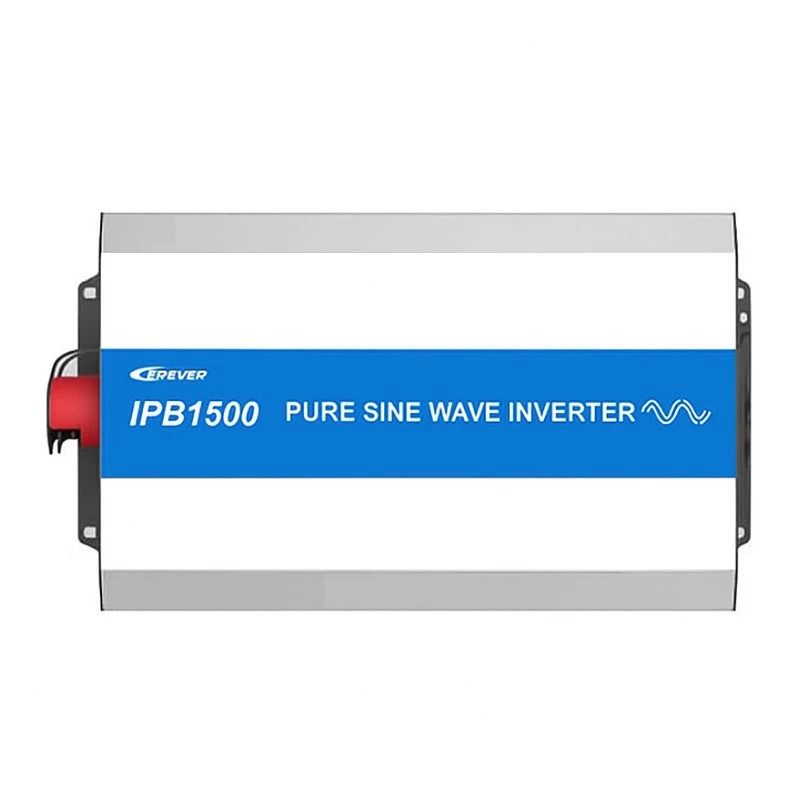

EPEVER IPB1500 1500W Pure Sine Wave Power Inverter 24VDC naar 220VAC

The EPEVER IPB1500 is a high-performance pure sine wave power inverter designed to convert 24VDC battery power into stable 220VAC 50Hz AC power. With a continuous output of 1500W and a peak power of 3000W (5 seconds), it is ideal for off-grid solar systems, RVs, boats, and backup power applications. Featuring intelligent fan cooling, comprehensive protection, and an LCD display, this inverter ensures reliable and efficient operation.

Advantages

High efficiency of ≥92% reduces energy loss. Pure sine wave output ensures compatibility with sensitive electronics. Low no-load current (<0.8A) saves battery power. Multiple protections (overload, short circuit, over temperature, input over/under voltage, reverse polarity) safeguard your devices. Intelligent fan cooling adjusts speed based on load and temperature for quiet operation.

Suitable for

• Off-grid solar power systems
• Recreational vehicles (RVs) and caravans
• Marine and boat applications
• Emergency backup power
• Remote cabins and mobile offices

Key specifications

• Rated Power: 1500W
• Peak Power: 3000W (5 seconds)
• DC Input Voltage: 24VDC (range 21.6V-32V)
• AC Output Voltage: 220VAC ±3%
• AC Output Frequency: 50Hz ±0.5%
• Output Waveform: Pure Sine Wave (THD <3%)
• Efficiency: ≥92%
• No-load Current: <0.8A
• USB Output: 5VDC / 2.4A
• Cooling: Intelligent fan cooling
• Display: LCD for status monitoring
• Protections: Overload, short circuit, over temperature, input over/under voltage, reverse polarity
• Operating Temperature: -20°C to +50°C
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with a deep-cycle battery bank of sufficient capacity. Ensure proper ventilation around the inverter. The universal AC socket accepts standard plugs. This inverter is not suitable for inductive loads exceeding 1500W continuous.
