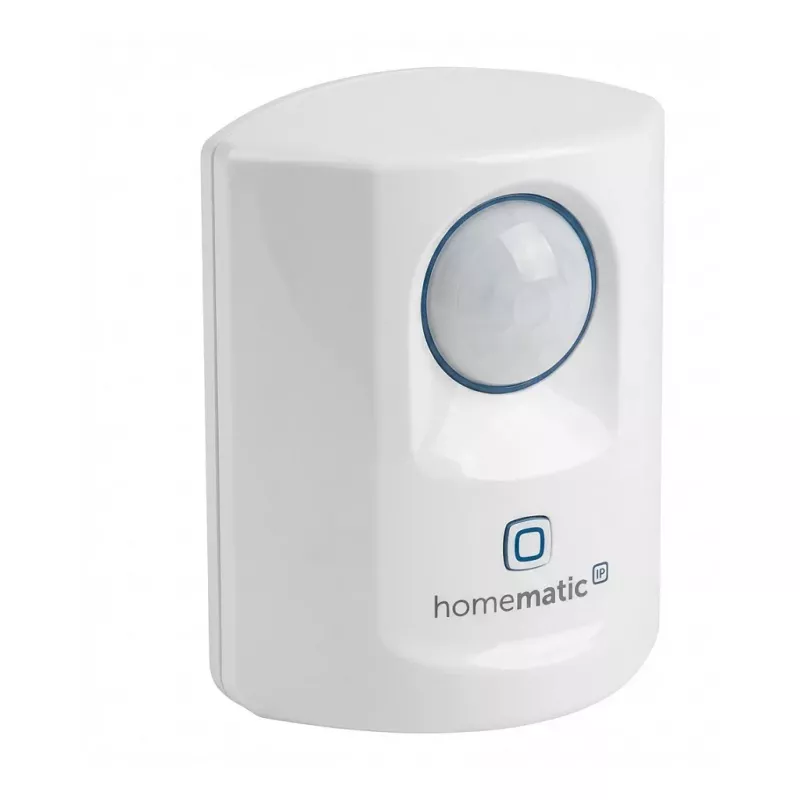

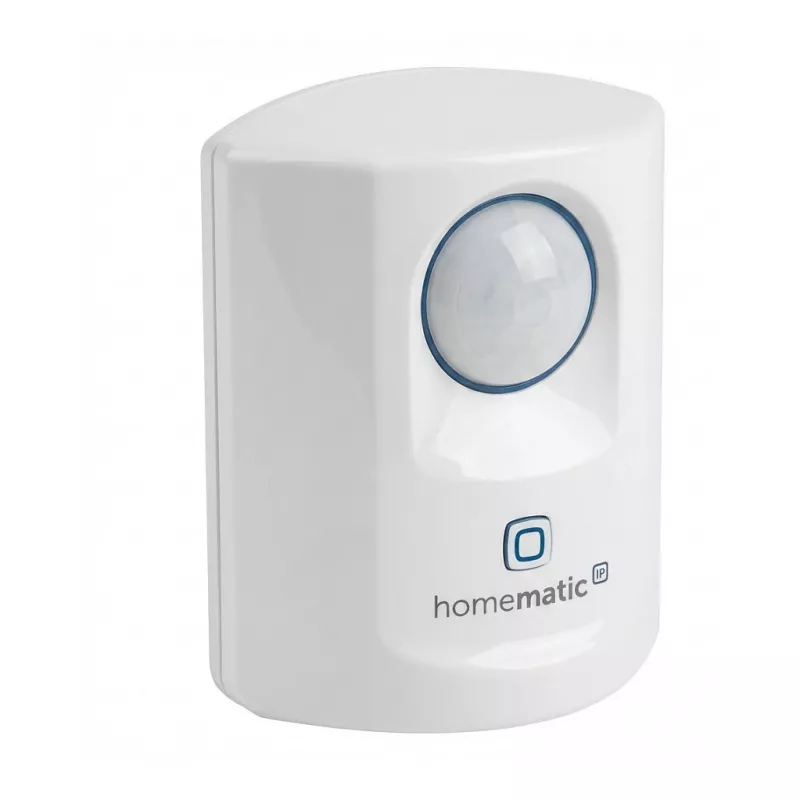

EQ-3 Homematic IP bewegingsmelder met schemersensor, binnen, 3-pack

The EQ-3 Homematic IP Motion Detector with Twilight Sensor is a smart indoor motion detector designed for use with the Homematic IP smart home system. This 3-pack provides reliable motion detection and brightness measurement, enabling intelligent lighting control and security automation. Each unit features passive infrared (PIR) technology with a detection angle of approximately 105° and a range of up to 7 meters at a mounting height of 2.5 meters. The integrated twilight sensor measures ambient light from 0 to 1000 lux, allowing for daylight-dependent switching. The device is powered by two AAA batteries (not included) with a typical battery life of up to 5 years. It communicates wirelessly via the Homematic IP protocol at 868 MHz and is compatible with the Homematic IP Access Point or CCU3 central control unit. The detector is suitable for wall or corner mounting and comes with screws and adhesive strips. Its compact white design (RAL 9010) blends seamlessly into any interior.

Advantages

Easy installation and configuration via the Homematic IP app. Reliable motion detection with adjustable sensitivity. Twilight sensor enables automatic lighting control based on ambient brightness. Long battery life reduces maintenance. Compact and discreet design fits any room.

Suitable for

• Indoor motion detection for lighting automation
• Security monitoring in hallways, staircases, and living areas
• Integration with Homematic IP smart home systems
• Energy-saving light control based on presence and daylight

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: approx. 105°
• Detection range: up to 7 m (at 2.5 m mounting height)
• Light sensor range: 0 to 1000 lux
• Wireless protocol: Homematic IP
• Radio frequency: 868.0 - 868.6 MHz, 869.4 - 869.65 MHz
• Power supply: 2x AAA (LR03) batteries per unit
• Battery life: up to 5 years
• Operating temperature: -10 to +55 °C
• Protection class: IP20
• Mounting type: wall or corner mounting (screws and adhesive strips included)
• Colour: White (RAL 9010)
• Dimensions per unit (L x W x H): 50 x 50 x 40 mm
• Quantity per pack: 3

Recommendations

For optimal performance, mount the detector at a height of 2.5 meters and avoid direct sunlight or heat sources. Use with Homematic IP Access Point or CCU3 for full functionality. Batteries are not included; use high-quality alkaline batteries for longest life.
