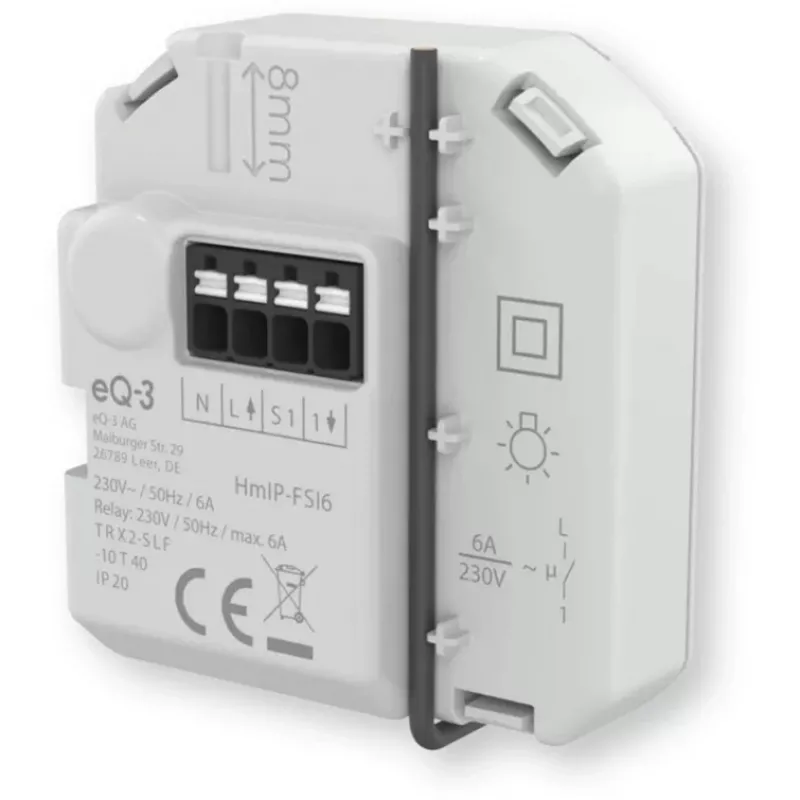

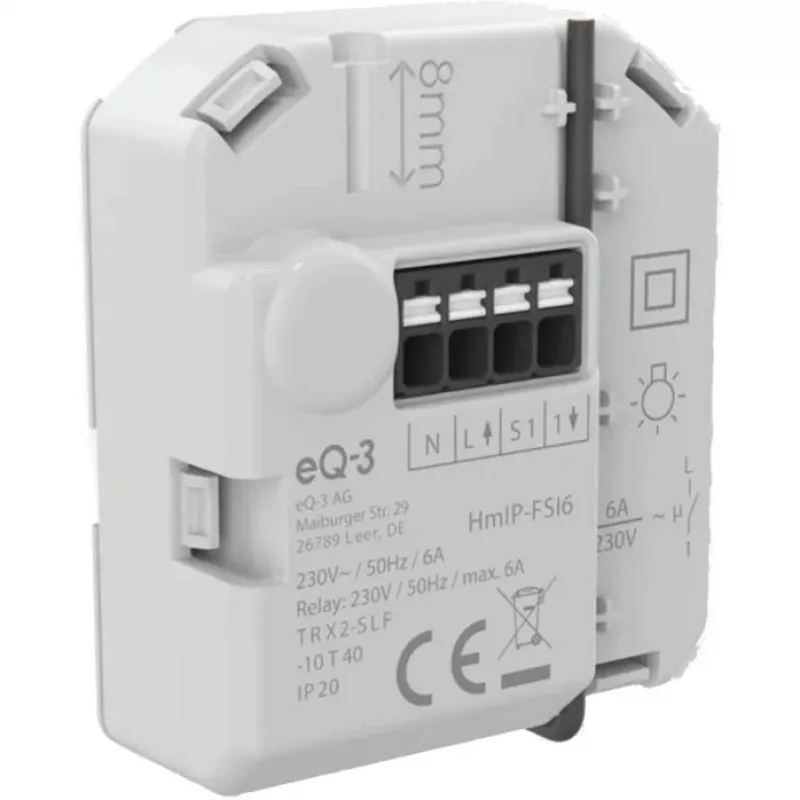

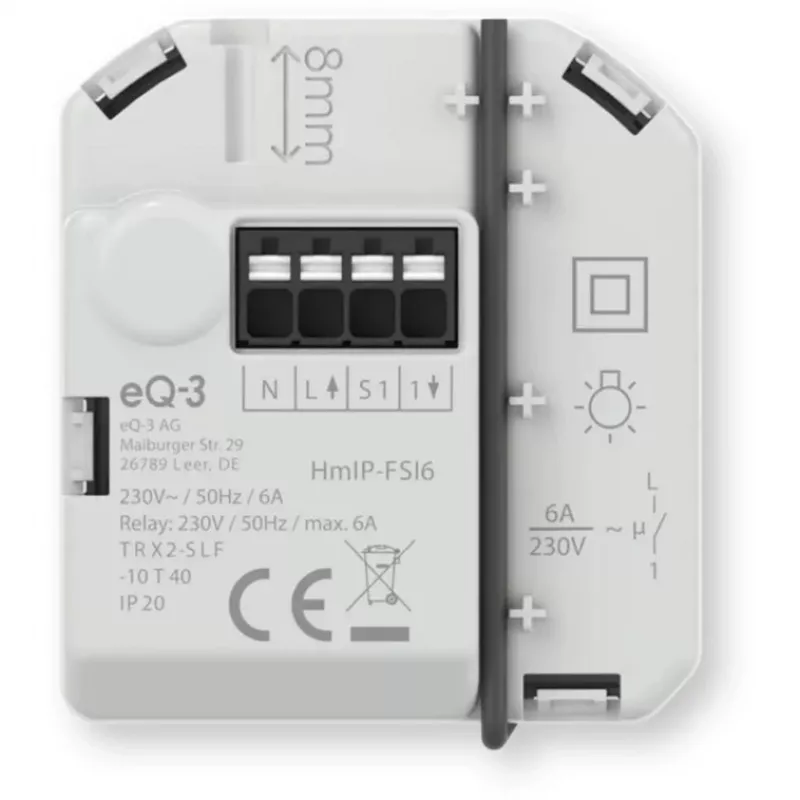

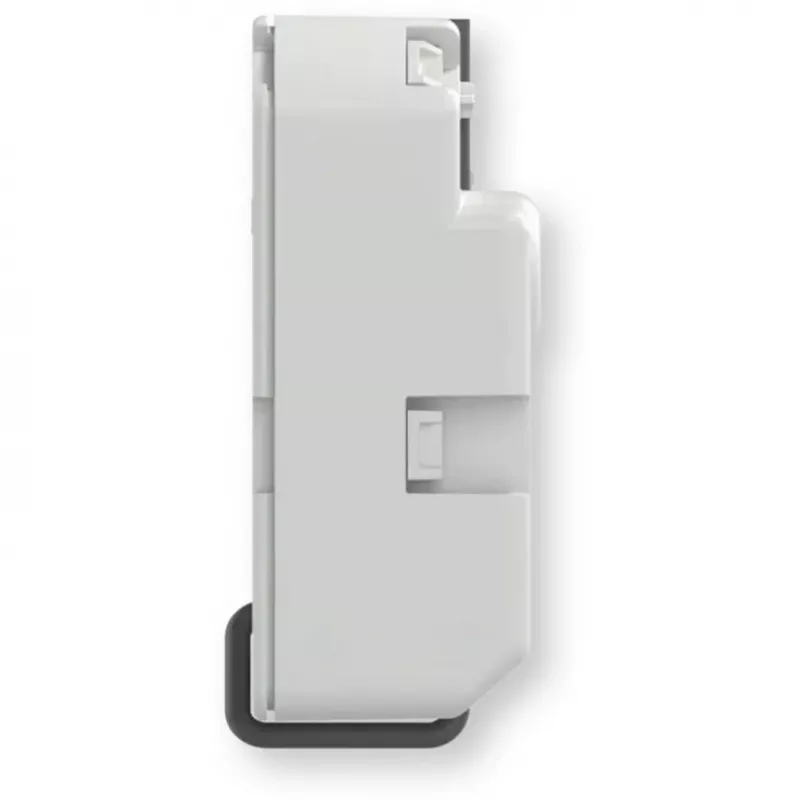

Homematic IP inbouw-schakelactor met tasteringang (6 A)

Upgrade your home automation with the Homematic IP Flush-Mounted Switch Actuator, a discreet and powerful solution for controlling lighting and electrical appliances. This compact actuator installs invisibly behind standard wall switches, enabling smart control of connected loads up to 1150 W while retaining manual operation via the existing push-button. Its bidirectional Homematic IP radio protocol ensures reliable communication and low energy consumption.

Advantages

The actuator offers seamless integration into the Homematic IP smart home ecosystem, allowing remote control, scheduling, and automation via the free smartphone app or optional central control unit. It features electronic overload protection and a monostable relay for safe switching of resistive and capacitive loads. With a standby power of just 0.2 W, it is exceptionally energy-efficient. The compact design fits into standard flush-mounted boxes, making it ideal for retrofitting.

Suitable for

• Controlling ceiling lights, wall lamps, or LED lighting
• Switching small appliances up to 1150 W (e.g., fans, pumps)
• Retrofitting existing installations without changing the wall switch design
• Creating automated lighting scenes in combination with other Homematic IP devices

Key specifications

• Device type: Flush-mounted switch actuator with push-button input
• Radio protocol: Homematic IP (868.3 MHz / 869.525 MHz)
• Operating voltage: 230 V AC, 50 Hz
• Maximum switching power: 1150 W (ohmic load), 200 VA (capacitive load)
• Maximum switching current: 5 A
• Relay type: Monostable
• Inputs: 1 (for conventional push-button/switch)
• Outputs: 1 switching output
• Standby power consumption: 0.2 W
• Installation: Flush-mounted in standard boxes (DIN 49073-1)
• Protection class: IP20
• Ambient temperature: 0 to 35 °C
• Radio range: Up to 400 m (free field)
• Overload protection: Electronic fuse
• Mounting depth: Approx. 24 mm
• Cable cross-section (rigid): 0.75 - 1.5 mm²

Recommendations

For optimal performance, pair this actuator with a Homematic IP Access Point or CCU3 central control unit to unlock advanced automation, remote access, and voice control via Amazon Alexa or Google Assistant. Ensure installation is carried out by a qualified electrician in compliance with local regulations.
