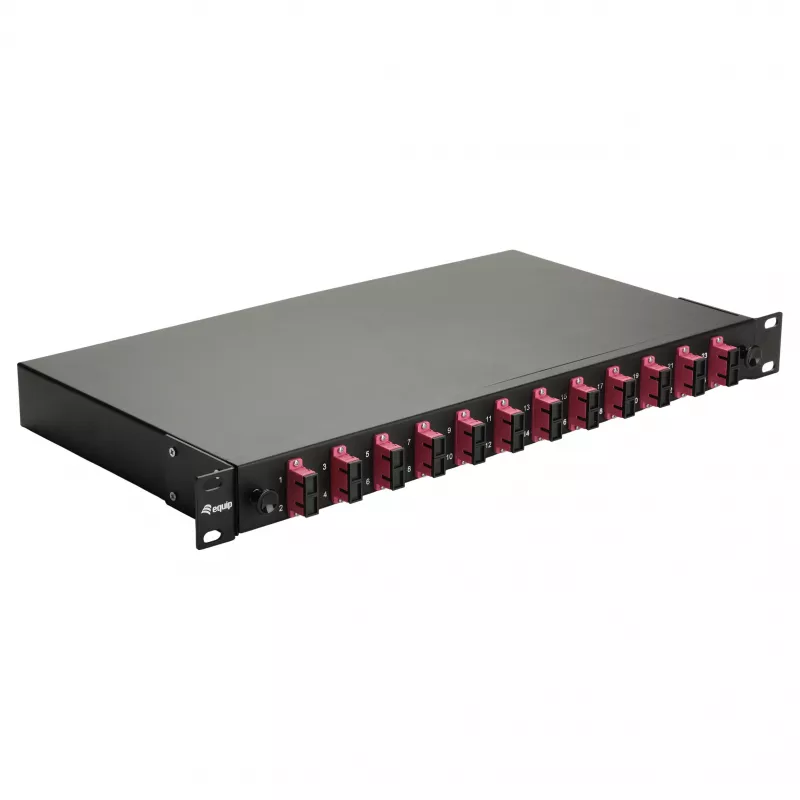

Equip 12-Port Glasvezel Lasbox, SC Duplex, OM4, 1U, gevuld, Zwart

With a 12-port SC duplex configuration and OM4 multimode fibre support, this Equip splice box delivers 24 fibres of high-density splicing in a single 1U rack unit. Fully equipped out of the box, it eliminates the need for separate component sourcing and accelerates deployment in data centres, LANs and telecom rooms.

Overview

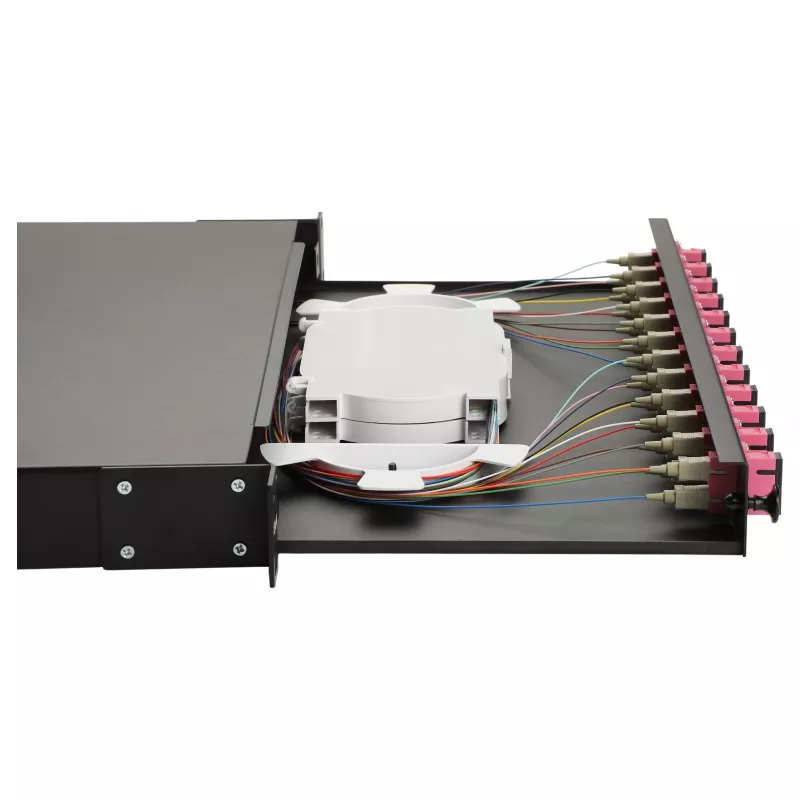

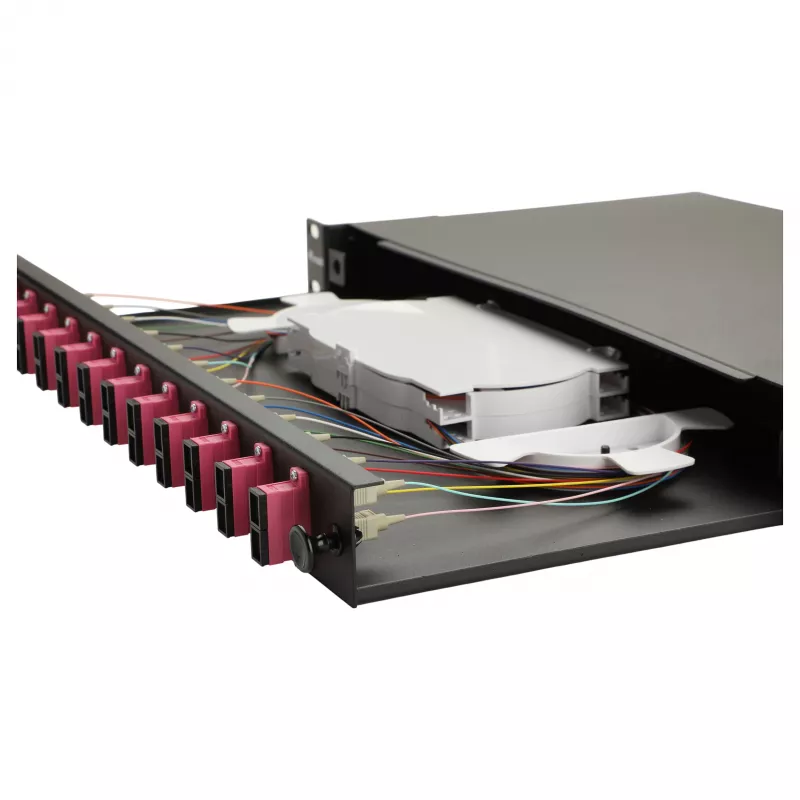

This 1U 19-inch rackmount splice box is engineered for structured cabling environments where reliability and density are key. It arrives complete with SC duplex adapters and splice trays, ready for installers to terminate and manage fibre cables with minimal effort. The robust steel construction and black finish ensure long-term durability while blending into standard equipment racks.

What stands out

• 12 x SC Duplex ports providing 24-fibre capacity
• OM4 multimode fibre support for high-bandwidth applications

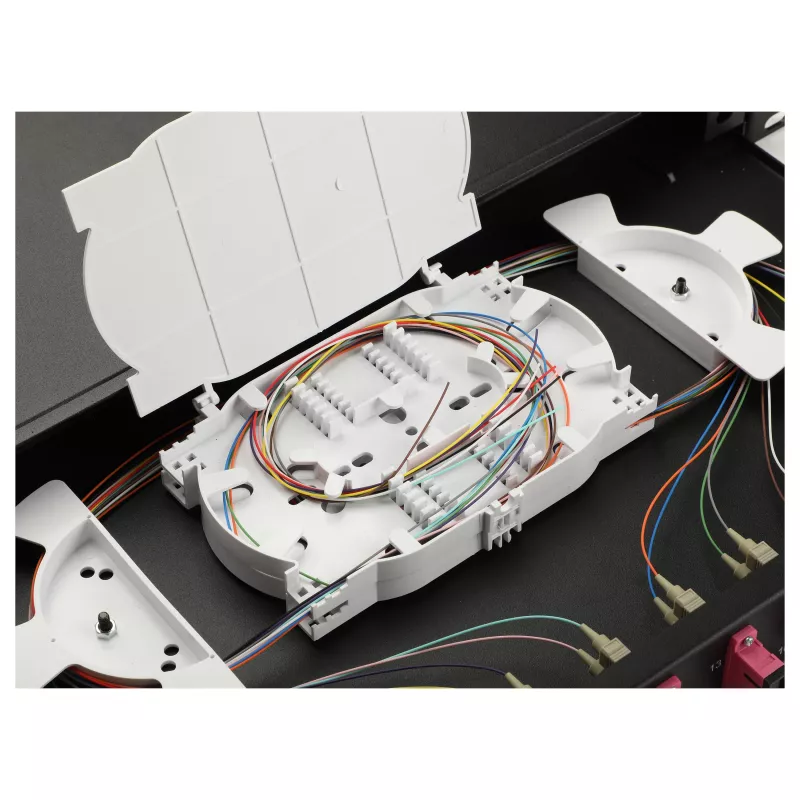

• Fully equipped: includes adapters and splice trays
• 1U 19-inch form factor for space-efficient rack mounting
• Multiple rear cable entry points for tidy cable routing

Technical details

• Product Type: Fiber Optic Splice Box / Patch Panel
• Form Factor: 19-inch Rackmount
• Rack Units: 1U
• Port Configuration: 12 x SC Duplex
• Fiber Capacity: 24 Fibers
• Fiber Type: Multimode OM4
• Connector Type: SC Duplex
• Colour: Black
• Material: Steel
• Equipped Status: Fully Equipped
• Splice Tray Included: Yes
• Cable Entry Points: Multiple rear cable entry points
• Mounting Type: Front panel mounting ears
• Insertion Loss: < 0.3 dB
• Return Loss: > 50 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Standard Compliance: RoHS, CE

Our verdict

A high-density, ready-to-deploy fibre splice solution that combines OM4 performance with rugged steel construction, ideal for modern data centre and enterprise networks.
