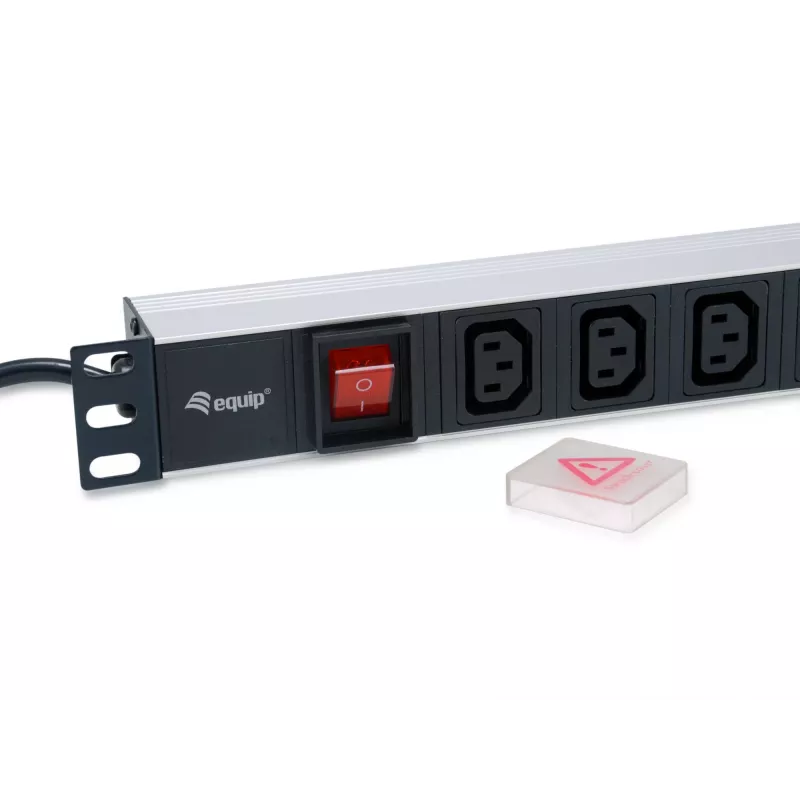

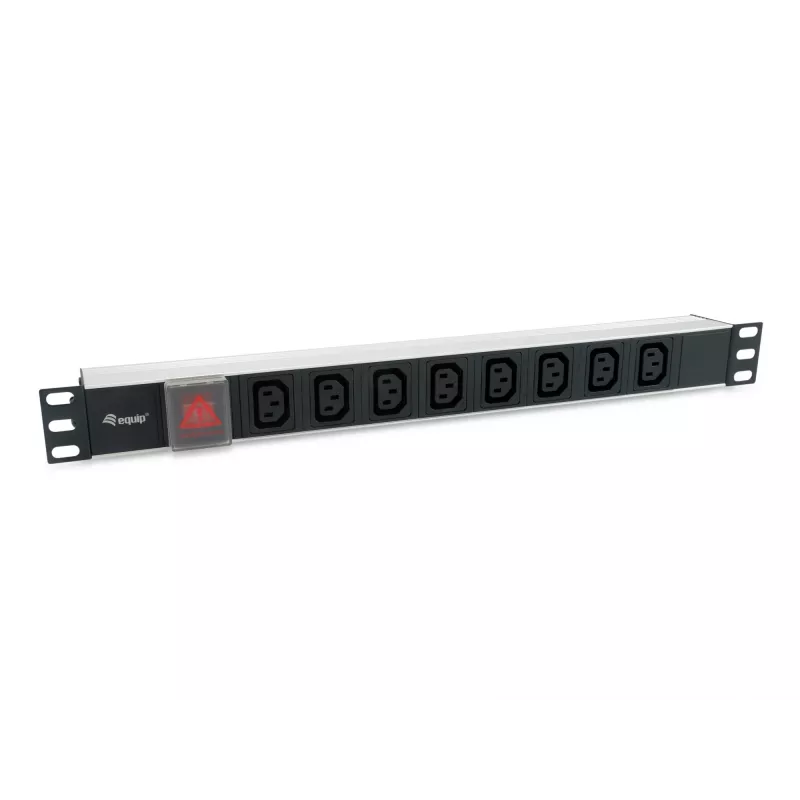

Equip 333310 Power Distribution Unit (PDU) 8 AC-uitgangen 1U zwart

The Equip Power Distribution Unit (model 333310) is a compact 1U rack-mounted PDU providing reliable distribution of mains power to multiple devices. It features eight AC outlets (IEC C13 couplers), a built-in power on/off switch and an attached 1.8 m H05VV-F supply cable. Designed for horizontal installation in 19" cabinets, the unit supports nominal input voltage of 220–240 V, operates at 50–60 Hz and has a maximum current rating of 10 A. The PDU is CE certified and finished in black.

Advantages

The Equip 333310 combines a slim 1U form factor with eight C13 outlets to save rack space while providing clear and consistent power to connected equipment. Its integrated power switch simplifies operation and the 1.8 m cable facilitates straightforward connection to mains supply. The mechanical design is intended for easy installation and the CE certification indicates conformity with applicable safety standards.

Suitable for

• Horizontal mounting in 19" server/network cabinets and racks
• Powering IT equipment such as servers, switches and routers with C13 connections
• Small data closets, telecommunication cabinets and AV racks

Key specifications

• Brand: EQUIP
• Model (MPN): 333310
• AC outlets: 8 × IEC C13
• Form factor: 1U, horizontal
• Nominal input voltage: 220–240 V
• Frequency: 50–60 Hz
• Maximum current: 10 A

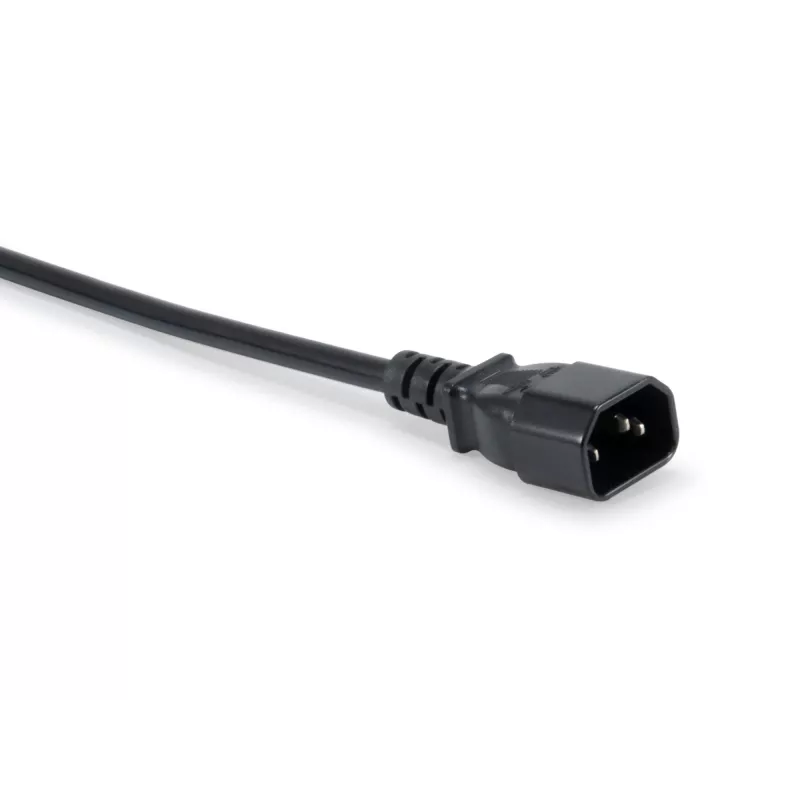

• Cable: 1.8 m H05VV-F (fixed)
• Colour: Black
• Weight: 0.79 kg
• Certification: CE

How to use

Mount the PDU horizontally in a 19" rack or cabinet using appropriate 1U mounting hardware. Connect the fixed 1.8 m supply cable to a compatible mains outlet rated for 220–240 V and ensure the circuit can support up to 10 A. Plug equipment into the IEC C13 outlets and operate the unit using the integrated power on/off switch. Follow your facility's electrical safety procedures when connecting or disconnecting equipment.

Recommendations

Do not exceed the maximum current rating of 10 A and distribute load across outlets to avoid overloading a single circuit. Ensure proper ventilation in the rack and secure cable routing to prevent strain on the fixed supply cord. If used in critical installations, pair with appropriate surge protection or UPS devices.
