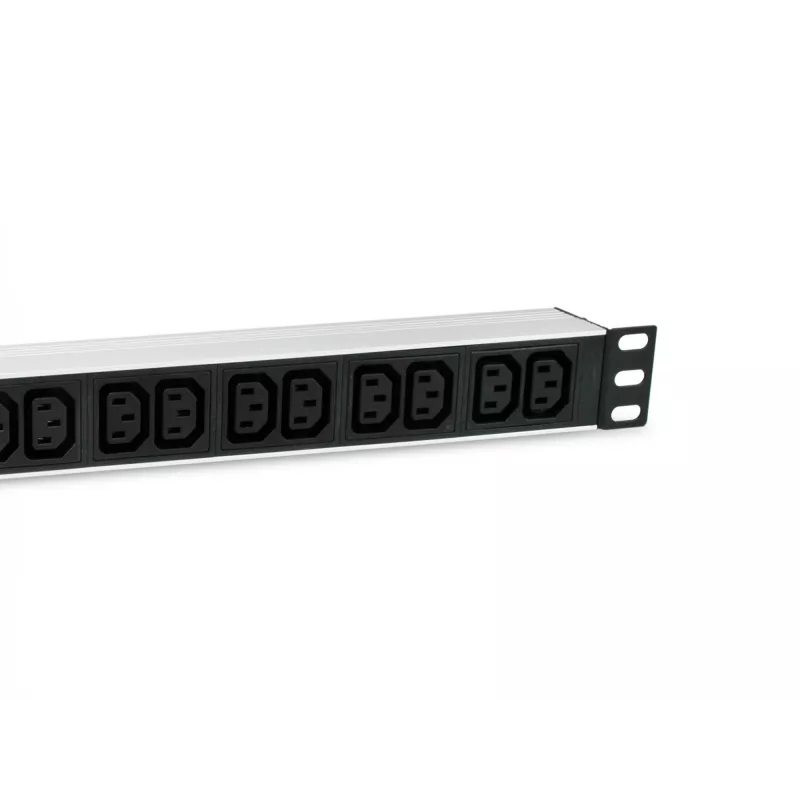

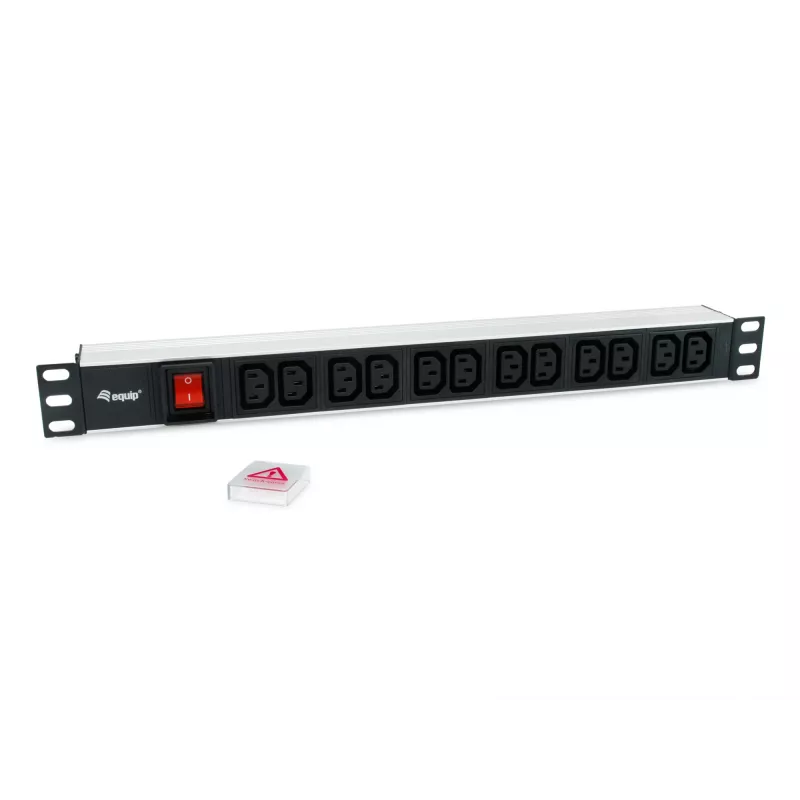

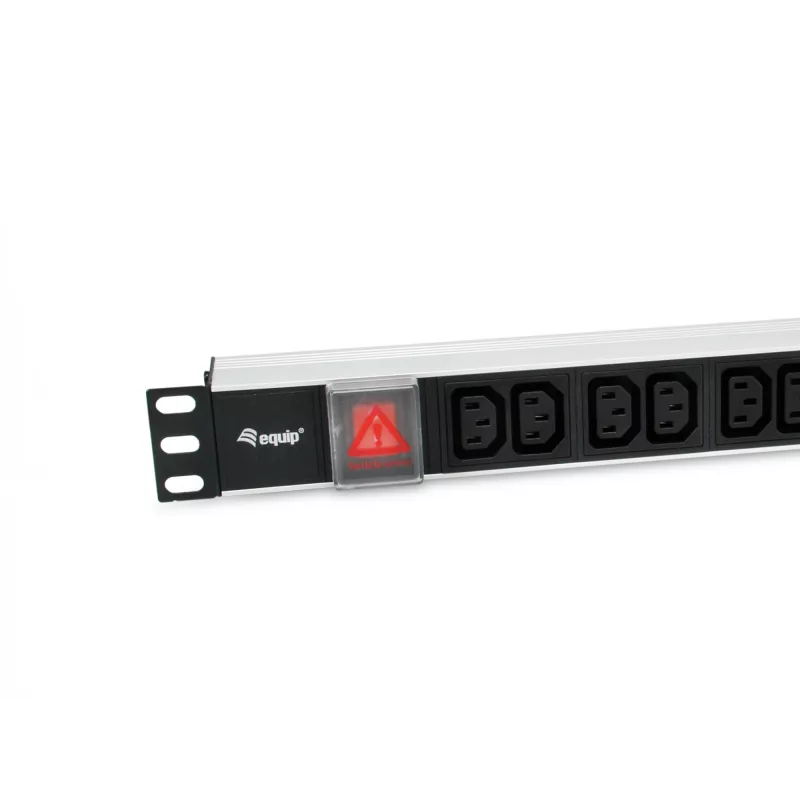

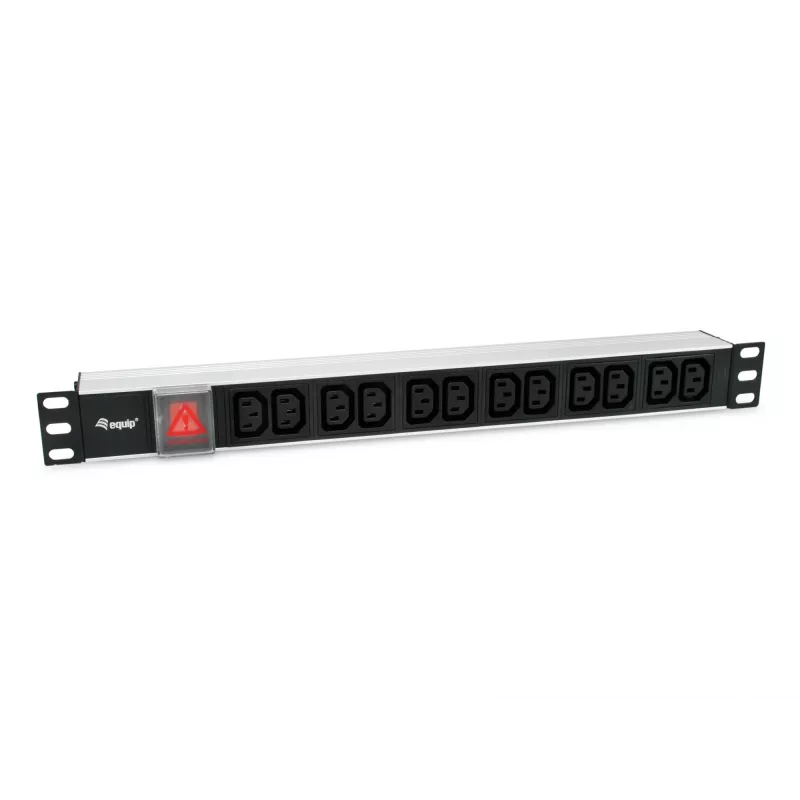

Equip 12-voudige C13 Power Distribution Unit, aan-/uitschakelaar

The Equip 333318 Power Distribution Unit (PDU) supplies power to multiple devices via twelve C13 outlets. Built for 1U rack installation, the unit has an aluminum housing, a 1.8 m cable with Type F plug, and supports 220–240 V input at up to 10 A. It is CE and RoHS compliant and intended for organized power distribution in server racks, workstations, or other equipment cabinets.

Advantages

The PDU provides twelve standard C13 outlets in a compact 1U form factor, saving rack space while enabling connection of several devices. Its aluminum housing offers durability and improved heat dissipation. The integrated on/off switch allows convenient control of the whole unit and helps manage power usage. Compliance with CE and RoHS ensures basic safety and environmental standards.

Suitable for

• Server racks and network cabinets
• Data centers and small server rooms
• Workstations with multiple peripherals
• Office equipment cabinets and AV racks

Key specifications

• Brand: EQUIP
• Model / MPN: 333318
• EAN: 4015867238554
• AC outlets: 12 × C13
• Input voltage: 220–240 V AC
• Maximum current: 10 A
• Rack size: 1U
• Housing material: Aluminum
• Cable length: 1.8 m

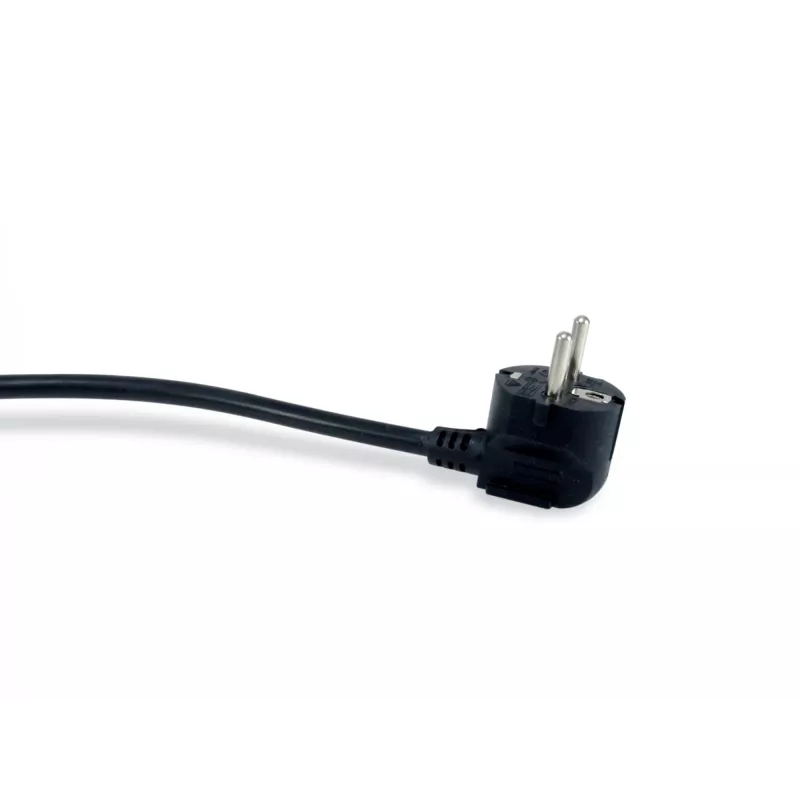

• Power plug: Type F
• Colour: Black, Silver
• Certifications: CE, RoHS
• Weight: 0.79 kg

How to use

Mount the PDU in a 1U space within a compatible rack or place it on a flat surface if rack installation is not required. Connect the unit to a suitable 220–240 V mains outlet using the attached 1.8 m cable with Type F plug. Plug equipment into the twelve C13 outlets. Use the built-in on/off switch to power the connected devices on or off as needed. Do not exceed the maximum rated current of 10 A for the entire unit.

Recommendations

Ensure the total current draw of all connected devices does not exceed 10 A. Place the PDU where airflow is not obstructed to aid heat dissipation. For installations in critical environments, pair the PDU with appropriate surge protection and follow local electrical codes during installation.
