Equip 37 inch-70 inch gelede tv-wandsteun

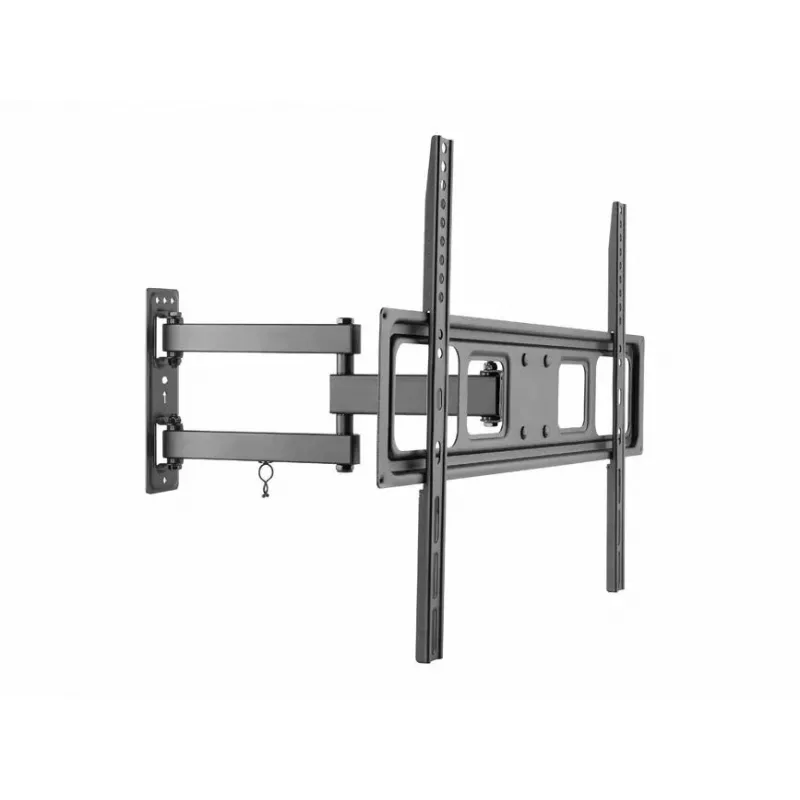

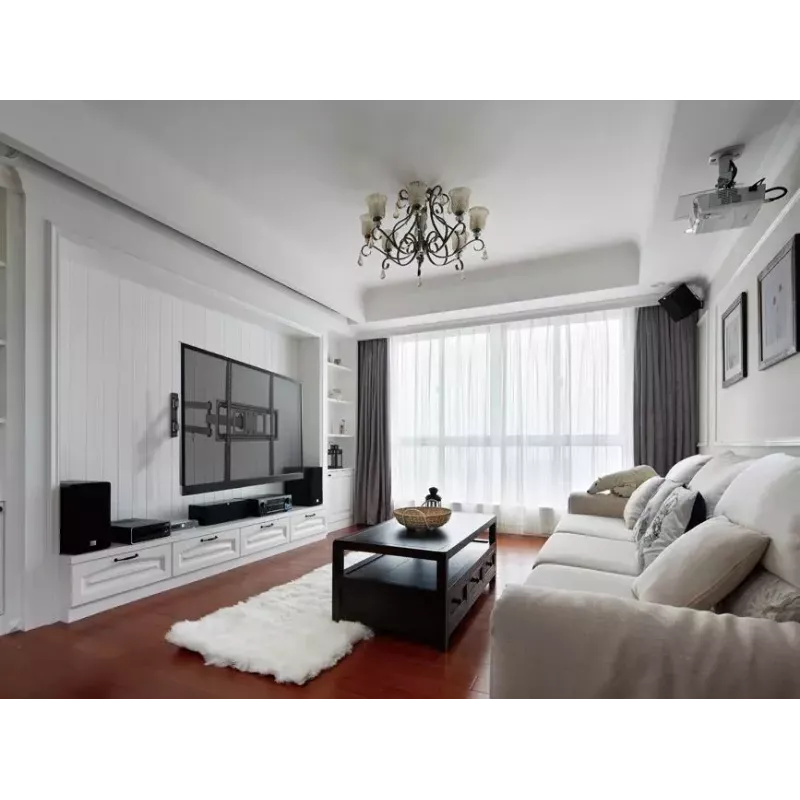

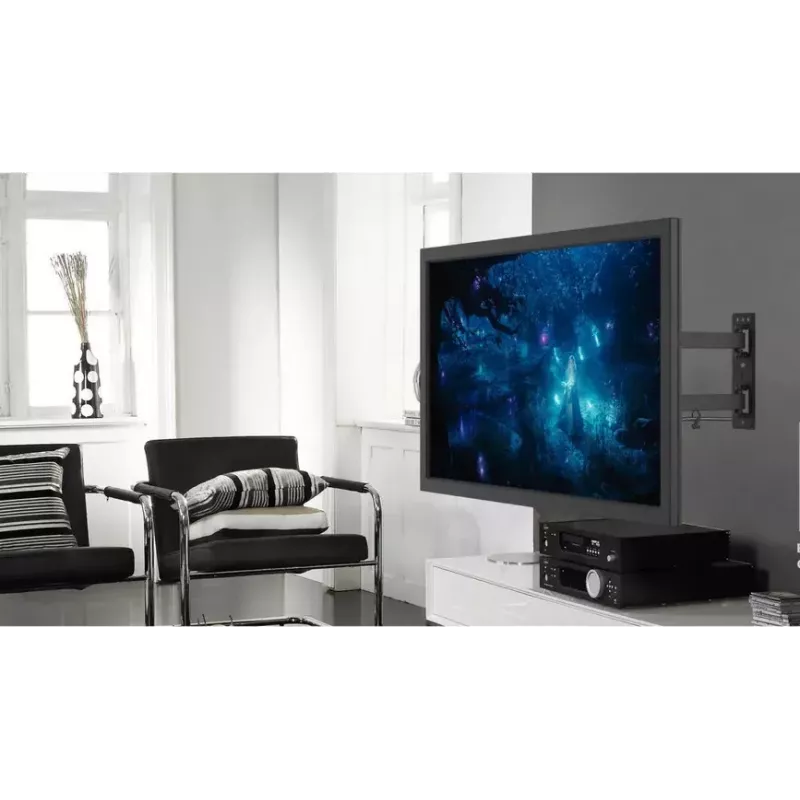

The Equip articulating TV wall bracket for 37"–70" screens is a compact, sturdy mount designed to secure LCD and LED TVs up to 35 kg. Compatible with VESA patterns from 200 x 200 mm to 600 x 400 mm, the bracket allows tilt adjustment from -15° to 10° and extends from the wall between 6.3 cm and 42.7 cm. Finished in black, it supports a single display and is suitable for installation on common wall materials including brick, concrete and wood.

Advantages

The bracket offers flexible positioning thanks to its articulating arm and adjustable extension, enabling better viewing angles. Its broad VESA compatibility covers most mid- to large-size TVs, while a compact, robust construction ensures reliable fixation. Included graphic installation guide simplifies DIY mounting on standard wall types.

Suitable for

• Mounting 37"–70" TVs with VESA 200 x 200 to 600 x 400 mm
• Rooms with brick, concrete or wooden walls
• Single-screen installations up to 35 kg

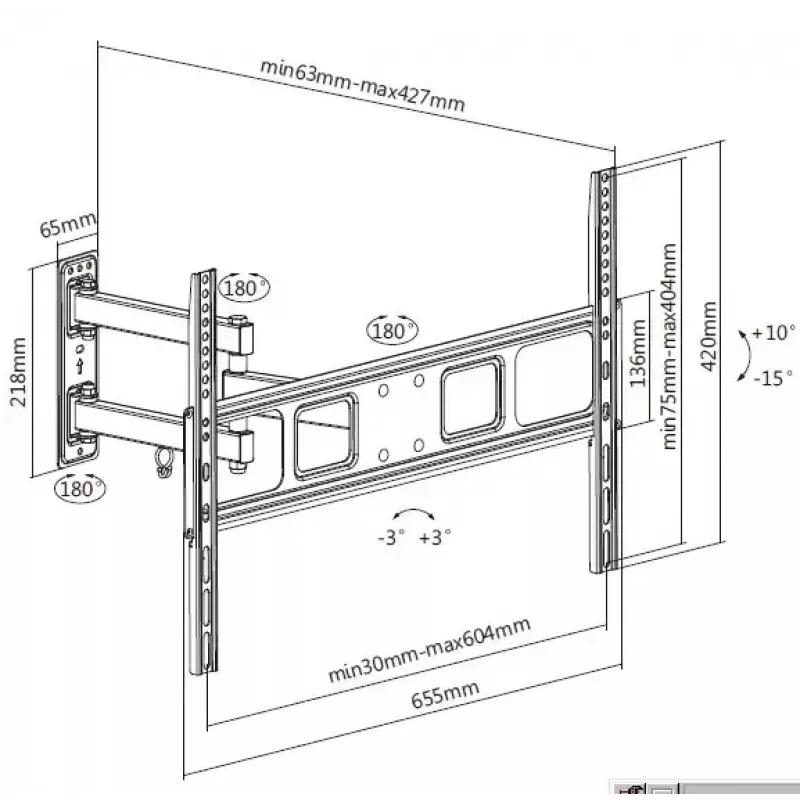

Key specifications

• Screen size compatibility: 37"–70"
• Maximum weight capacity: 35 kg
• VESA compatibility: 200 x 200 mm to 600 x 400 mm

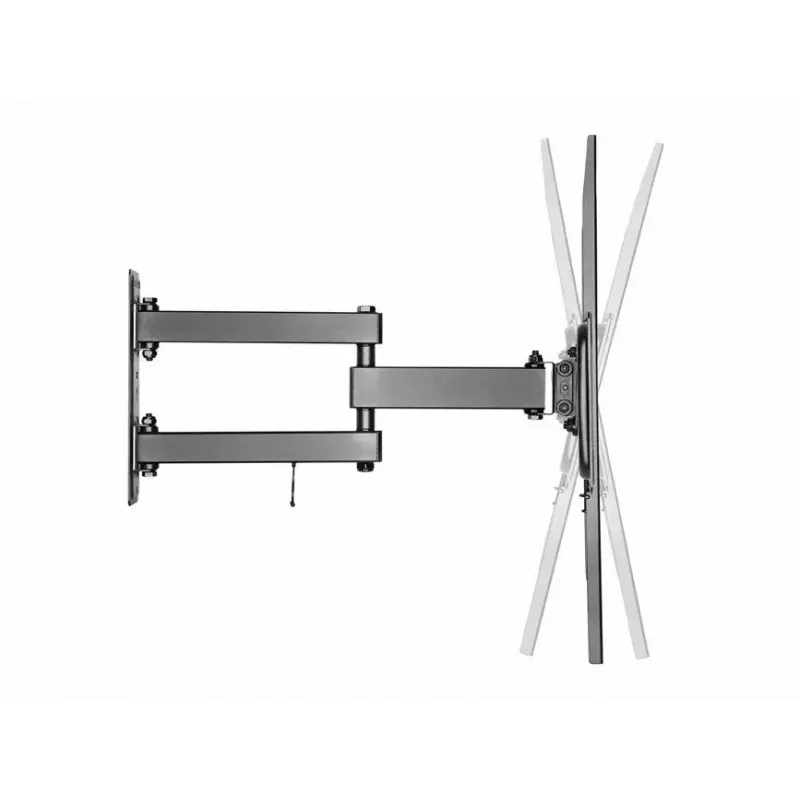

• Tilt range: -15° to 10°

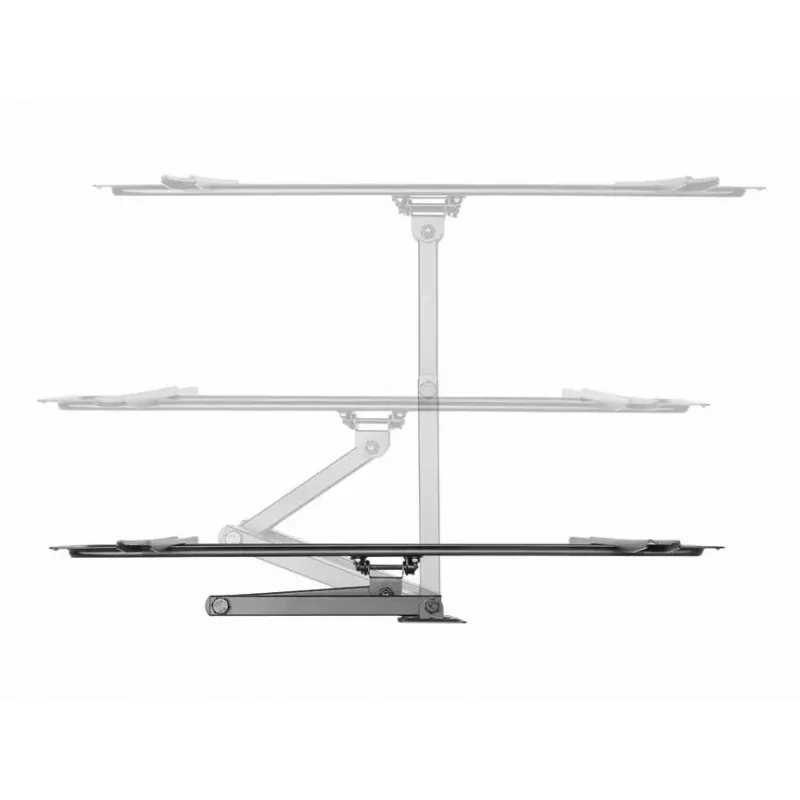

• Extension from wall: 6.3 cm–42.7 cm
• Number of displays supported: 1
• Product weight: 3.12 kg
• Colour: Black

How to use

Check that your TV falls within the supported screen size and VESA pattern, and confirm the TV weight does not exceed 35 kg. Select a suitable mounting location on brick, concrete or wood. Follow the included graphic guide to mark drilling points, attach the wall plate securely with appropriate anchors and fasteners for the wall material, fix the articulating arm, and then mount the TV to the bracket using the compatible VESA screws. Adjust tilt and extension to the desired viewing angle.

Recommendations

Use appropriate wall anchors and screws for the specific wall material and verify load-bearing capacity before installation. If unsure about wall structure or mounting at height, consult a professional installer.
