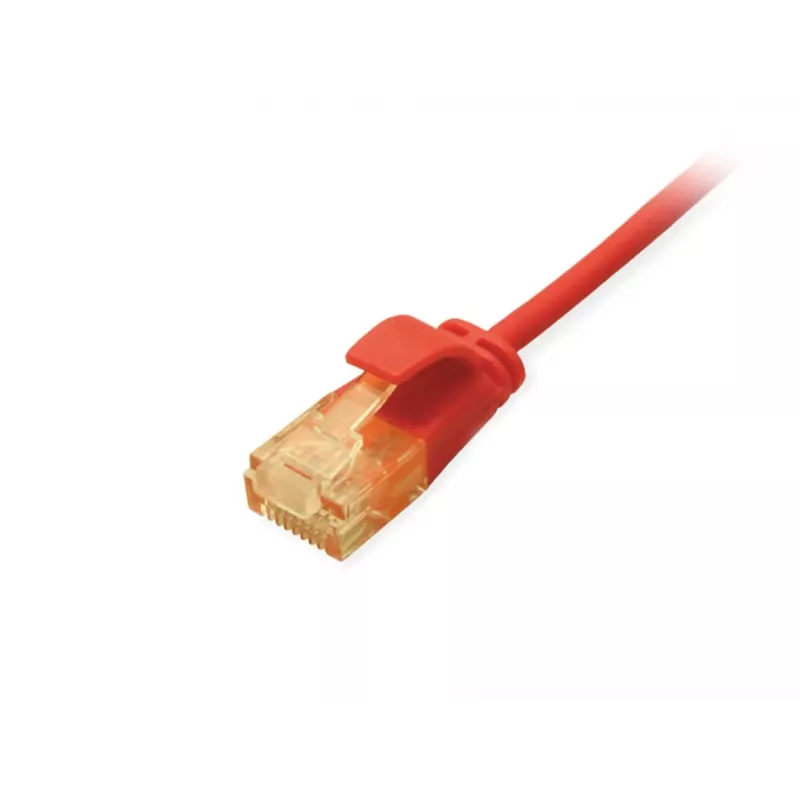

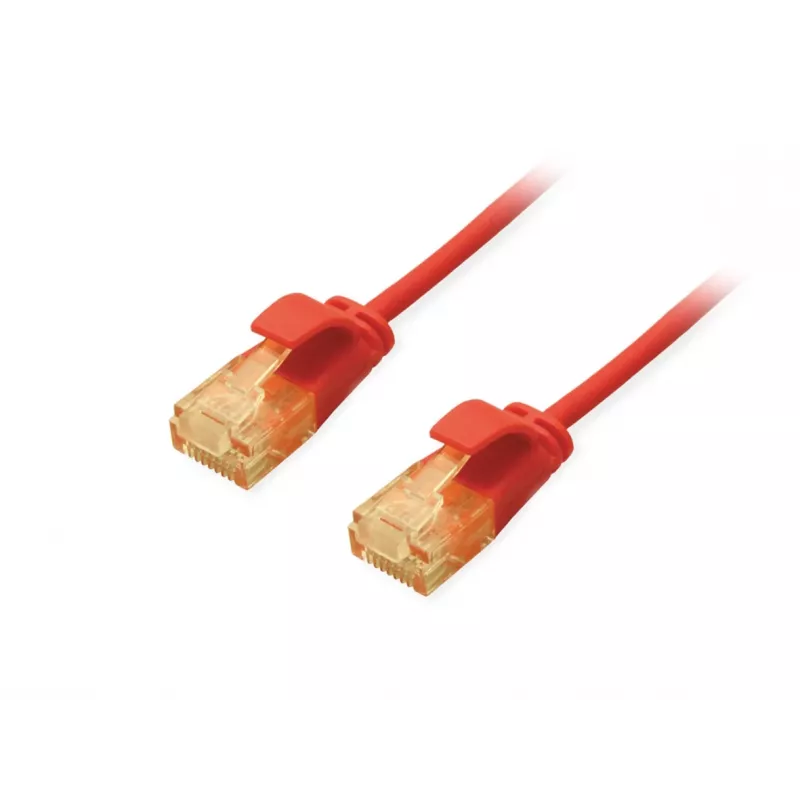

Equip Cat.6A U/UTP slanke patchkabel 2m rood 10000 Mbit/s

The Equip Cat.6A U/UTP Slim Patch Cable 2m Red is a slim-profile network patch cable designed for high-density installations, data centers and enterprise networks. With a 2 m length, RJ-45 straight male connectors on both ends and a reduced-diameter 32 AWG stranded copper conductor, the cable supports 10 Gigabit Ethernet at up to 500 MHz while maintaining flexibility and easier cable management in crowded racks or patch panels.

Advantages

The unshielded twisted pair (U/UTP) design delivers reliable data transmission in low to moderate EMI environments, and the stranded bare copper conductors provide durability and flexibility for frequent reconfigurations. The slim form factor improves airflow and reduces cable bulk. The cable is RoHS compliant, specified as Low Smoke Zero Halogen (LSZH/LSOH) and conforms to ISO/IEC 11801 and EN 50173 standards.

Suitable for

• 10 Gigabit Ethernet connections in data centers and server rooms
• High-density patch panels and network racks where space-saving cables are required
• PoE and PoE+ powered devices such as access points and IP phones
• General office and enterprise LAN wiring for Gigabit and multi-gigabit networks

Key specifications

• Length: 2 m
• Cable type: Cat.6A U/UTP (unshielded twisted pair)
• Conductor: 32 AWG stranded bare copper
• Connectors: RJ-45 straight male – RJ-45 straight male
• Performance: Up to 10 Gbit/s, 500 MHz
• PoE support: Suitable for PoE, PoE+
• Material/standards: LSZH/LSOH jacket, RoHS compliant, ISO/IEC 11801 and EN 50173 conformant
• Colour: Red

How to use

Connect one RJ-45 plug to the network device (switch, patch panel or NIC) and the other end to the target device, ensuring secure insertion until the latch clicks. Route the slim cable through cable management accessories or racks to maintain airflow and avoid tight bends that could stress the connector boots. For frequent moves or reconfigurations, use the cable’s flexible stranded conductor to reduce strain on ports and connectors.

Recommendations

Use in environments with low to moderate electromagnetic interference; avoid areas with strong EMI where shielded cables would be preferable. Observe bend radius recommendations and do not exceed maximum pulling forces during installation to preserve performance and connector integrity.
