Equip draadloze handheld 2D-barcodescanner met groot bereik en standaard

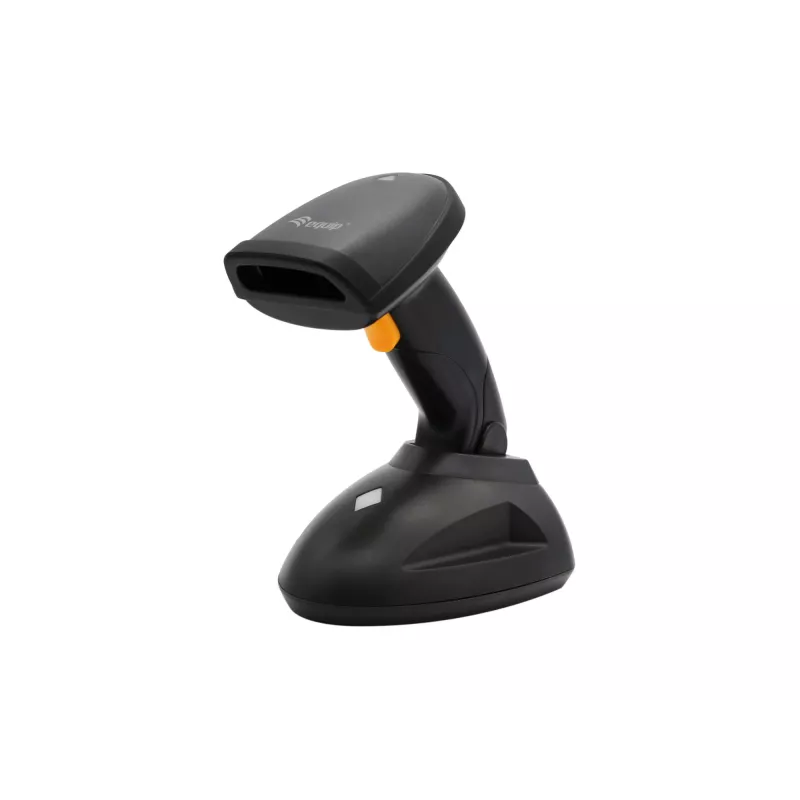

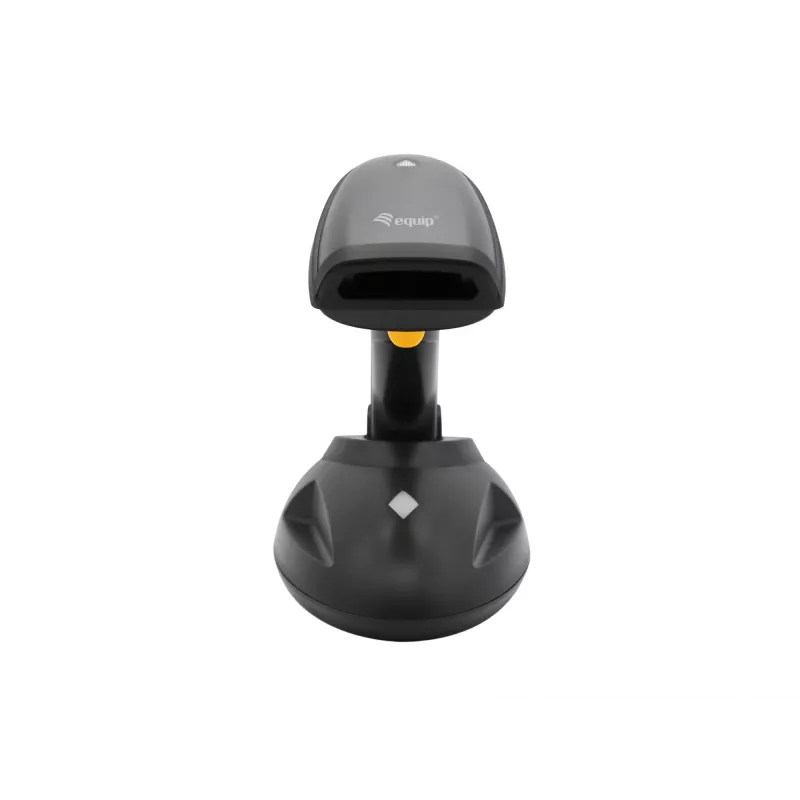

The Equip Wireless 2D Barcode Scanner with Long-Distance Capability and Stand is a handheld scanner designed to capture both 1D and 2D barcodes with reliable performance. It supports long-distance reading up to 1500 mm, offers wireless connectivity with an approximate range up to 200 m, and includes a stand for hands-free operation. Constructed with a durable ABS housing and rated IP54, the scanner is suitable for retail, warehousing and inventory tasks where flexible placement and reduced operator fatigue are required.

Advantages

The scanner reads common 1D linear codes and 2D matrix codes (including QR, Data Matrix and PDF417) and delivers a high read rate of up to 220 reads/s. Wireless operation and a built-in lithium-ion battery provide mobility, while the included stand enables hands-free scanning. The ABS housing with IP54 protection increases durability in dusty or damp environments, and the device’s compact weight (0.445 kg) supports comfortable handheld use.

Suitable for

• Retail point-of-sale and shelf scanning
• Warehouse picking and stock control
• Inventory management and cycle counting
• Package and parcel scanning in logistics

Key specifications

• Scanner type: 1D/2D
• Sensor type: LED
• Working distance: up to 1500 mm
• Read rate (max): 220 reads/s
• Connectivity: Wireless (wireless range up to approximately 200 m)
• Weight: 0.445 kg
• Supported 1D codes: Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, Plessey, UPC-A, UPC-E
• Supported 2D codes: Data Matrix, PDF417, QR Code
• Housing material and colour: ABS, black

How to use

Charge the built-in lithium-ion battery before first use and pair the scanner with the host system following the manufacturer’s pairing procedure. Use the handheld mode to point the scanner toward the barcode at an appropriate distance (up to 1500 mm) and press the trigger to read. For hands-free operation, place the scanner in the included stand and position items in front of the scanner window for automatic or trigger-activated reads. Ensure the scanner’s wireless receiver or connection interface is connected to your POS, PC or terminal.

Recommendations

For reliable scanning, keep the scanner window clean and avoid direct sunlight on the barcode during reading. Store and use the device within the environmental limits specified by the manufacturer and recharge the battery regularly to maintain wireless performance.
