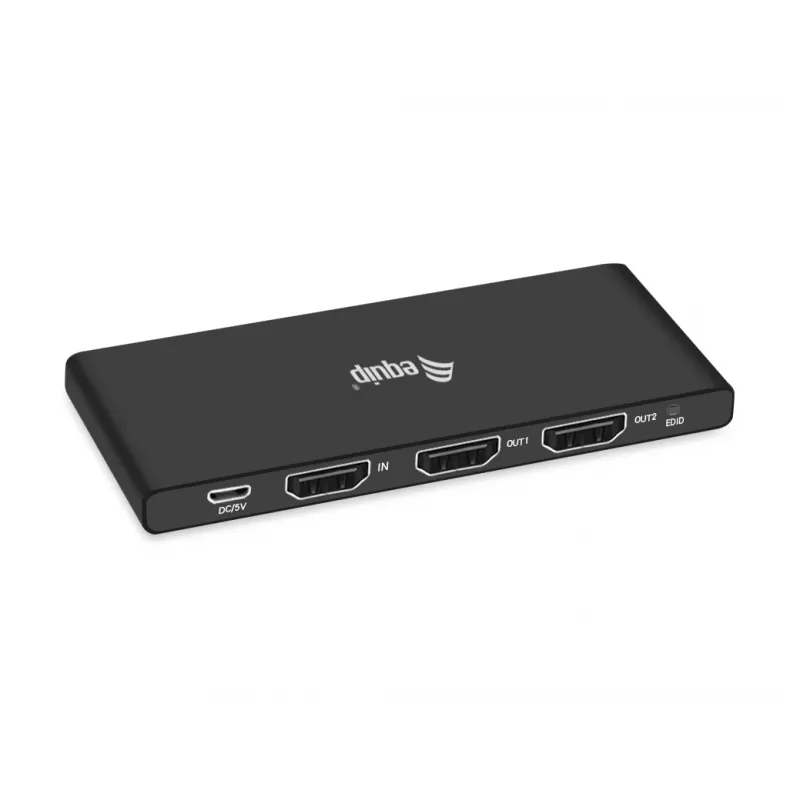

Equip ultra slanke 2-poorts HDMI 2.0-splitter

The Equip Ultra Slim 2-Port HDMI Splitter distributes one HDMI video and audio stream to two displays simultaneously, enabling synchronized high-definition playback for conventions, home theaters, retail spaces and educational campuses. It supports UHD 4K at 60 Hz, HDR, HDCP 2.2 and 3D, and provides a total bandwidth of 18 Gbps for smooth playback. The compact aluminum housing in black offers a durable, space-saving solution for connecting two HDMI displays to a single source.

Advantages

This HDMI Splitter eliminates constant cable switching by sending the source signal to two screens at once while preserving up to 3840 x 2160 @ 60 Hz resolution. Support for HDR, HDCP 2.2 and 3D ensures compatibility with modern displays and content protection. The Auto-EDID function reads the connected displays’ EDID data automatically to select a compatible output mode. Its slim aluminum design is lightweight and suitable for stationary installations.

Suitable for

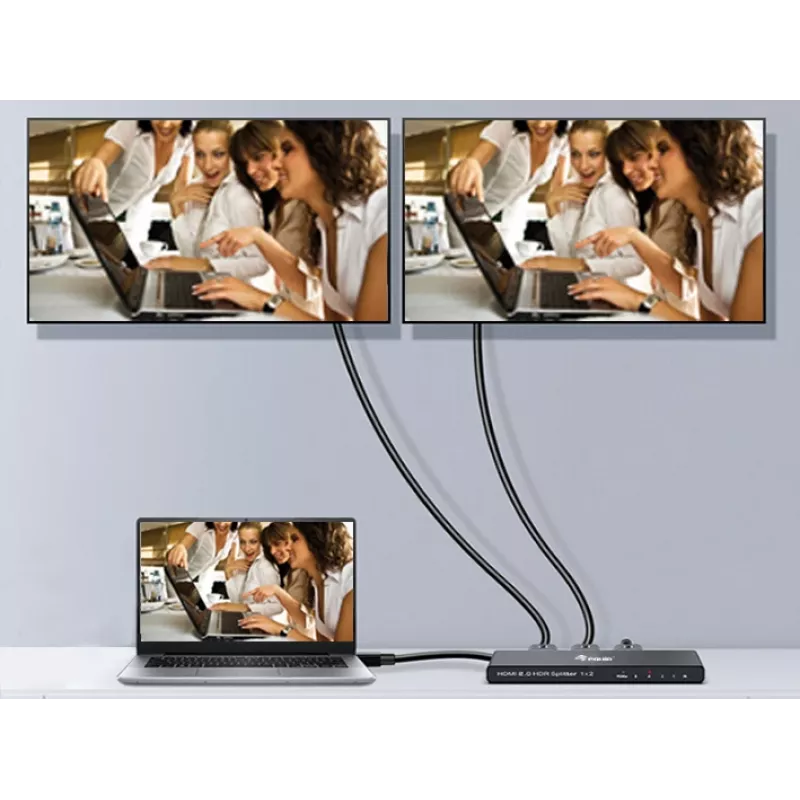

• Dual-screen setups in meeting rooms and conference halls
• Home theater systems with two displays or a TV plus projector
• Retail and public display installations
• Campus classrooms and lecture halls requiring mirrored output

Key specifications

• Model: Equip Ultra Slim 2-Port HDMI Splitter (MPN 332716, EAN 4015867223222)
• Video standard: HDMI 2.0; UHD 4K (3840 x 2160) @ 60 Hz
• Supported features: HDR, HDCP 2.2, 3D
• Bandwidth: up to 18 Gbps
• Ports: 1 HDMI input, 2 HDMI outputs
• Material and colour: Aluminum housing, black
• Dimensions (W × D × H): 4.2 mm × 0.95 mm × 12.5 mm
• Weight: 0.072 kg
• Input current: 1 A

How to use

Connect the HDMI source (e.g., player, laptop or set-top box) to the splitter’s HDMI input, then connect up to two displays, TVs or projectors to the HDMI outputs. Apply power if an external adapter is required by your setup. The splitter will mirror the input signal to both outputs; use the displays’ native settings if needed to adjust resolution or color. Auto-EDID will attempt to negotiate the best common mode between the connected displays.

Recommendations

For optimal performance, use high-quality HDMI 2.0 cables, ensure connected displays support the desired resolution and HDR, and place the splitter in a ventilated area. If displays have different capabilities, set the target resolution on the more capable display or rely on the splitter’s Auto-EDID to select a compatible common resolution.
