Equip USB-C 5-in-1 multifunctionele adapter

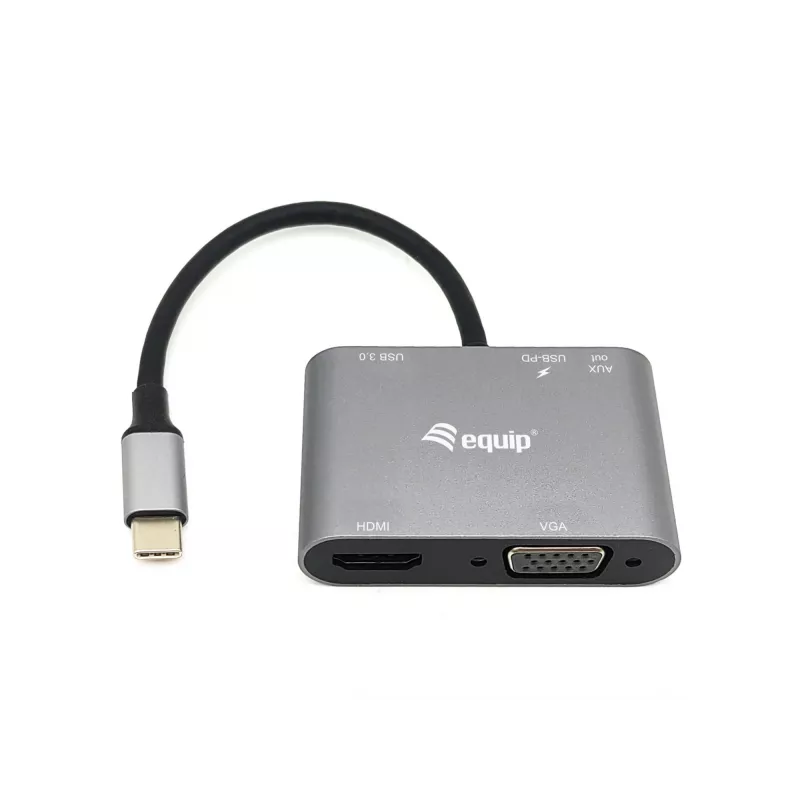

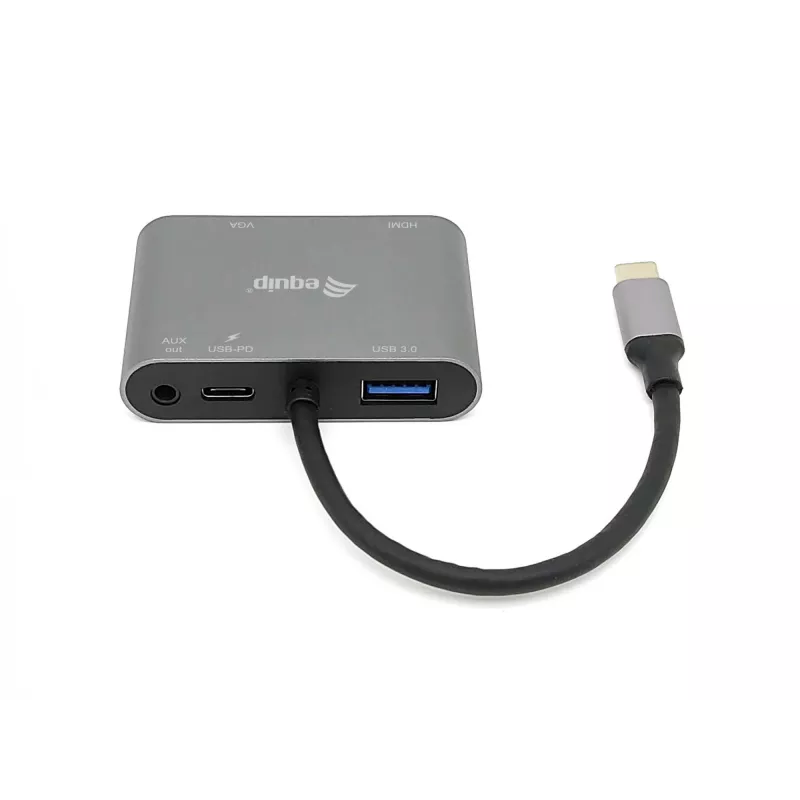

The Multifunctional Adapter Equip USB-C 5 in 1 (model 133483) expands a USB Type-C port to provide HDMI, VGA, USB 3.0, AUX and PD connections. It enables connection of an HDMI and a VGA display to a USB-C laptop or desktop and supports mirroring or extending content to two additional monitors simultaneously (one HDMI and one VGA). The adapter supports wired data transfer over USB 3.2 Gen 1 (up to 5 Gbit/s), USB Power Delivery up to 100 W and a maximum digital video resolution of 4096 x 2160 pixels. The product is compatible with Windows, macOS and various Android versions and comes in black and grey finishes.

Advantages

The adapter provides five port types in a single compact housing, combining video output (HDMI and VGA), a USB 3.0 downstream port, an analog audio (AUX) output and PD power passthrough. It supports high-resolution digital video output up to 4K (4096 x 2160) and offers USB 3.2 Gen 1 data speeds up to 5 Gbit/s for fast file transfer. USB Power Delivery up to 100 W lets you charge or power compatible laptops while using the adapter. Certified for CE and RoHS, the adapter is a portable solution for expanding USB-C connectivity.

Suitable for

• Connecting a laptop or desktop with USB-C to an external HDMI monitor
• Adding a VGA projector or legacy display alongside an HDMI screen
• Transferring data to USB storage devices at USB 3.2 Gen 1 speeds
• Providing audio output via the AUX jack
• Charging a USB-C laptop or device using Power Delivery (up to 100 W)

Key specifications

• Model: EQUIP 133483
• Host interface: USB 3.2 Gen 1 (Type-C)
• Data transfer rate: up to 5 Gbit/s
• Power Delivery: up to 100 W
• Maximum digital resolution: 4096 x 2160 pixels
• Ports: 1 × HDMI, 1 × VGA, 1 × USB 3.0 (Type-A), 1 × AUX (3.5 mm), 1 × PD (USB-C)
• Compatible OS: Windows, macOS, Android (various versions)
• Weight: 0.043 kg
• Colours: Black, Grey
• Certifications: CE, RoHS

How to use

Connect the adapter’s USB-C plug to a compatible USB-C port on your laptop or desktop. Attach an HDMI cable to the HDMI port and/or a VGA cable to the VGA port to connect external displays; the adapter can mirror or extend the screen to both outputs simultaneously (one HDMI and one VGA). Plug USB devices into the USB 3.0 Type-A port for data transfer and connect headphones or speakers to the AUX jack for audio output. If required, connect a USB-C power adapter to the PD port to provide power delivery up to 100 W while using the adapter.

Recommendations

For optimal performance, use quality HDMI and VGA cables and connect the PD power adapter when driving high-resolution displays or charging a laptop. Ensure your host device’s USB-C port supports video output (DisplayPort Alt Mode) and Power Delivery for full functionality.
