ERGOTRON Tm kantelbare wandhouder (zilver) (61-142-003)

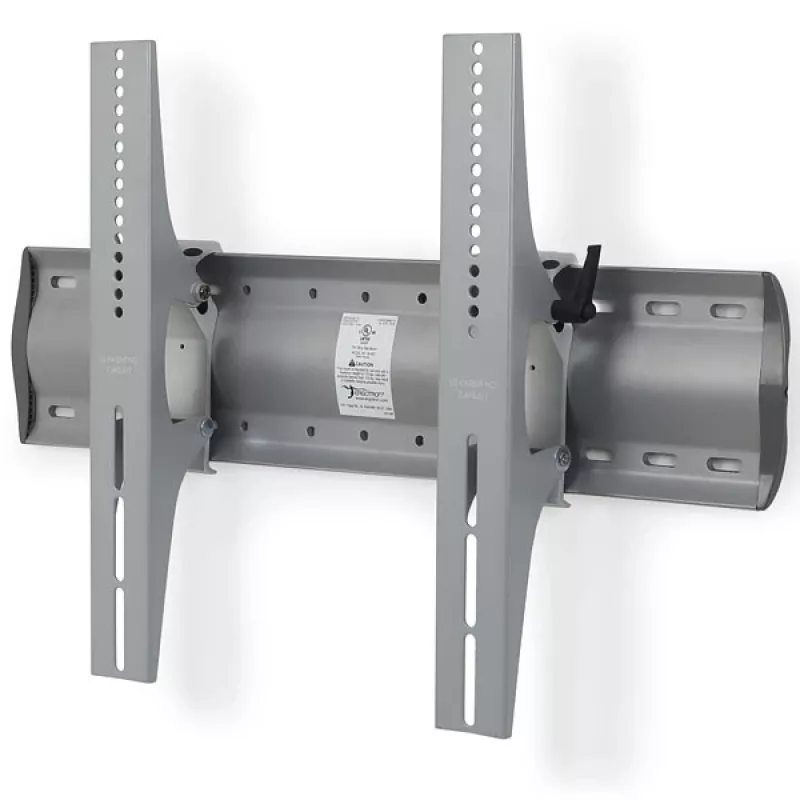

The Ergotron 61-142-003 TV mount XL supports flat panel displays from 106.7 cm (42") up to 2.29 m (90") and accommodates mounting-hole patterns up to 800 mm wide. Designed for stability, this silver wall mount holds up to 79.4 kg and provides a low-profile, secure attachment for a single large-screen TV.

Advantages

This XL TV mount offers extra width to fit larger displays and an integrated CF motion tilt mechanism that enables smooth, controlled tilting between 15° and -5°. The product is engineered for stability and straightforward installation, combining a robust maximum weight capacity of 79.4 kg with a slim, silver finish appropriate for modern interiors.

Suitable for

• Mounting a single large flat-panel TV (up to 90")
• Wall installations requiring mounting-hole patterns up to 800 mm wide
• Residential living rooms, conference rooms, and public displays

Key specifications

• Supported screen sizes: 106.7 cm (42") to 2.29 m (90")
• Maximum weight capacity: 79.4 kg
• Tilt range: 15° to -5° (CF motion tilt)
• Number of displays supported: 1
• Product weight: 5.307 kg
• Colour: Silver
• Manufacturer model (MPN): 61-142-003

How to use

Secure the Ergotron TV mount to a suitable wall following the included mounting instructions and local building codes. Attach the TV using the compatible VESA mounting holes (up to 800 mm wide) and tighten fasteners to the specified torque. Use the integrated CF motion tilt mechanism to set the screen to the desired viewing angle within the 15° to -5° range. Verify all fastenings and the stability of the installation before mounting the TV permanently.

Recommendations

Confirm the display weight and mounting-hole pattern compatibility before installation. For heavy or oversized displays, use appropriate wall anchors or mount to structural studs. Periodically check fasteners and tilt mechanism for secure operation.
