ESYLUX aanwezigheidsmelder PD-C360i/24 KNX ECO inbouw 24m

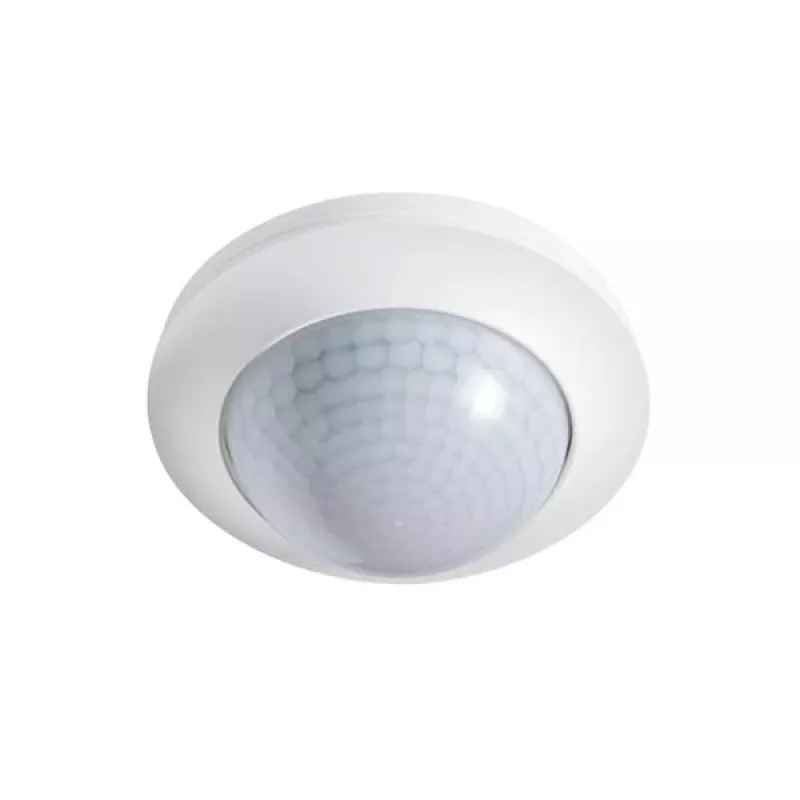

The ESYLUX PD-C360i/24 KNX ECO is a high-performance flush-mounted presence detector designed for intelligent building automation. With a 360° detection angle and a 24 m diameter range (at 3 m mounting height), it provides precise presence detection and constant light control via the KNX bus system. Ideal for offices, classrooms, and commercial spaces, this detector combines energy efficiency with advanced functionality.

Advantages

Energy-saving ECO mode reduces power consumption to less than 0.5 W. Integrated push-button input allows manual override. 10 PIR sensors and 1120 switching segments ensure reliable detection without blind spots. Adjustable delay time from 30 seconds to 30 minutes offers flexibility for various applications.

Suitable for

• Office environments requiring constant light control
• Classrooms and lecture halls
• Conference rooms
• Open-plan areas
• Any KNX-based building automation system

Key specifications

• Detection angle: 360°
• Detection range (diameter): 24 m at 3 m mounting height
• Mounting type: Flush-mounted (ceiling)
• Optimal mounting height: 3 m
• Control system: KNX
• Light sensor range: 5 - 2000 Lux
• Protection class: IP20
• Operating voltage: KNX Bus (21-30V DC)
• Operating temperature: 0°C to +50°C
• Power consumption: < 0.5 W
• Material: UV-stabilised polycarbonate
• Colour: White (RAL 9010)
• Installation depth: 60 mm
• Visible diameter: 97 mm

Recommendations

For optimal performance, mount at the recommended height of 3 m. Ensure the KNX bus is properly configured. This detector is part of the ESYLUX ECO series, designed for maximum energy efficiency.
