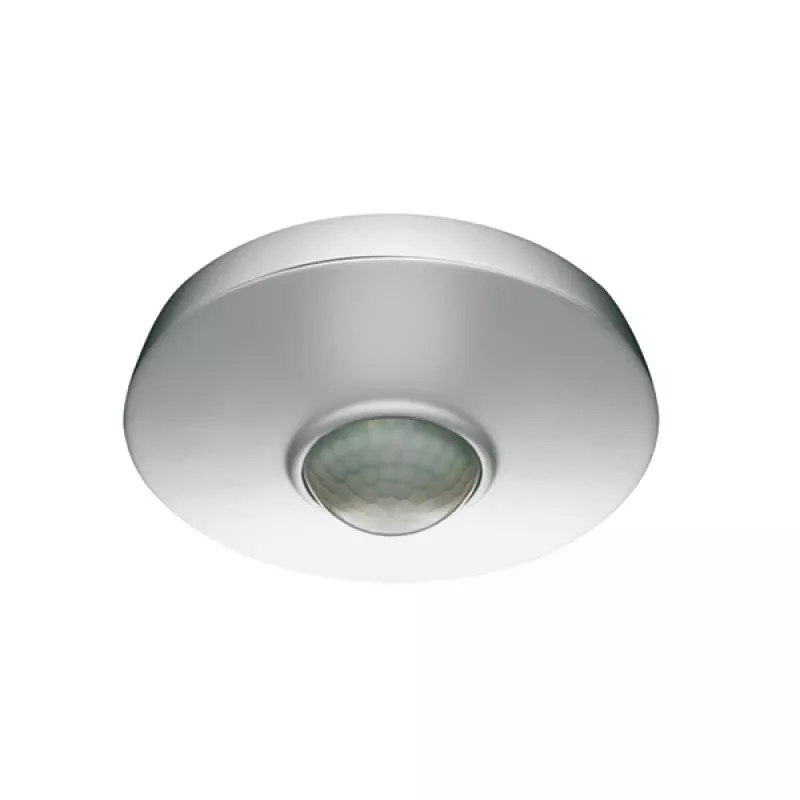

ESYLUX PD 360i/8 passieve infrarood (PIR) sensor, plafondmontage, 8m bereik, wit, bedraad

The ESYLUX PD 360i/8 is a high-quality passive infrared (PIR) sensor designed for indoor ceiling flush-mounting. With a 360° detection angle and an 8-meter diameter range (at 2.5 m mounting height), it provides reliable presence and motion detection for lighting control in offices, corridors, and other commercial or residential spaces. The sensor operates at 230 V AC and features adjustable light threshold (10-2000 lux) and time delay (10 seconds to 60 minutes). Its UV-stabilised polycarbonate housing ensures durability, and the white finish blends seamlessly with most ceilings.

Advantages

Energy-efficient automatic lighting control reduces electricity costs. Simple installation with wired connection. Flexible settings for light sensitivity and time delay adapt to various room requirements. Robust design with IP20 protection suitable for indoor environments.

Suitable for

• Office buildings
• Conference rooms
• Corridors and stairwells
• Storage rooms
• Residential interiors

Key specifications

• Sensor technology: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (diameter): 8 m (at 2.5 m mounting height)
• Mounting type: Ceiling flush-mounted
• Installation environment: Indoor
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity (resistive): 2300 W / 10 A
• Max. switching capacity (inductive): 1150 VA / 5 A (cos φ = 0.5)
• Light sensor range: 10 - 2000 Lux
• Time delay setting: 10 seconds - 60 minutes
• Protection class: IP20
• Ambient temperature range: -25 °C to +50 °C
• Colour: White
• Connection type: Wired
• Power consumption: approx. 0.5 W
• Recommended mounting height: 2.0 - 3.0 m
• Housing material: UV-stabilised polycarbonate
• Installation depth: 60 mm

Recommendations

For optimal performance, mount at the recommended height of 2.5 m and avoid obstructions in the detection field. Pair with compatible lighting loads for best energy savings.
