EURA ADP-41A3 eengezins audio-intercomsysteem met RFID-lezer (RL-3203ID)

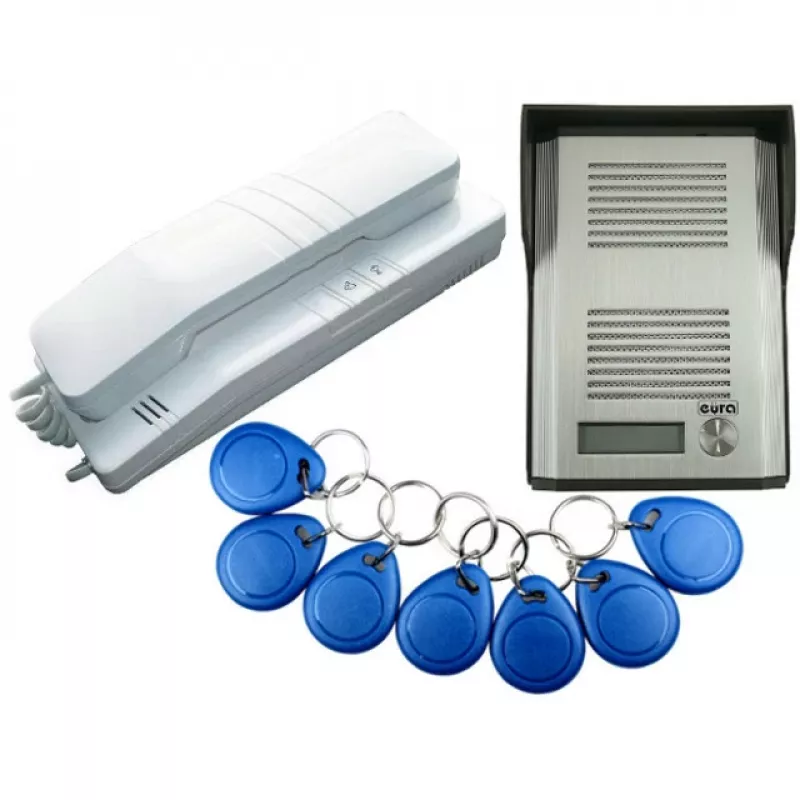

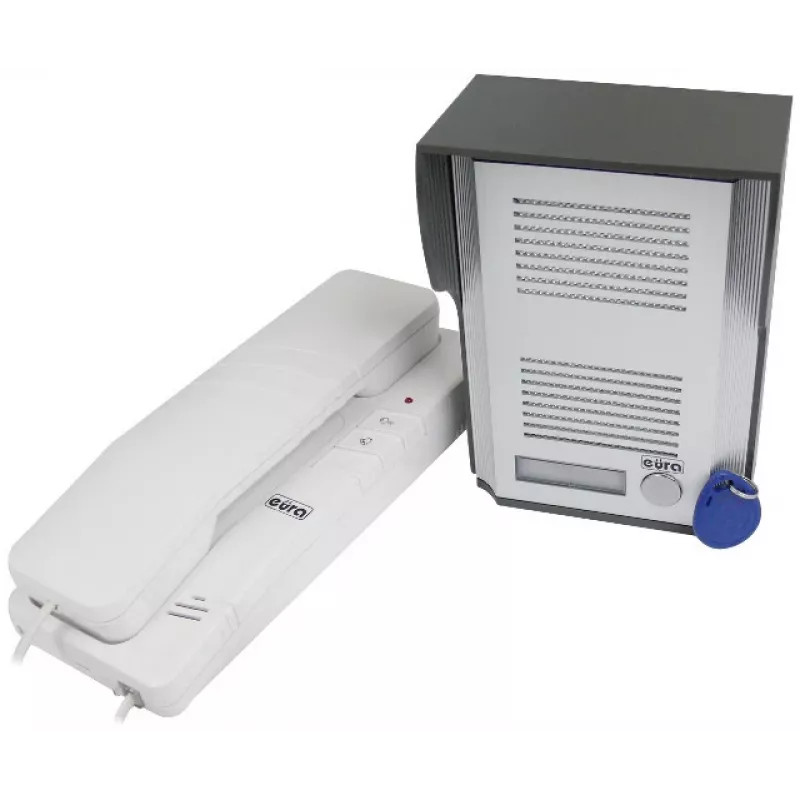

The EURA ADP-41A3 is a professional single-family audio intercom system designed for secure and convenient access control. It features an outdoor panel with an integrated RFID reader (model RL-3203ID) and a handset indoor unit, providing reliable communication and door release functionality. Ideal for residential homes, this system supports up to 2000 RFID users and offers robust weather resistance with an IP44 rating.

Advantages

Integrated RFID reader for keyless entry; supports up to 2000 users; durable aluminum alloy outdoor panel with IP44 protection; simple 2-wire installation; adjustable ringtone volume on indoor handset.

Suitable for

• Single-family homes requiring secure audio intercom and RFID access control
• Residential buildings needing a reliable, weather-resistant outdoor panel
• Users seeking a cost-effective solution with high user capacity

Key specifications

• System Type: Audio Intercom System
• Number of Families: 1 (Single-family)

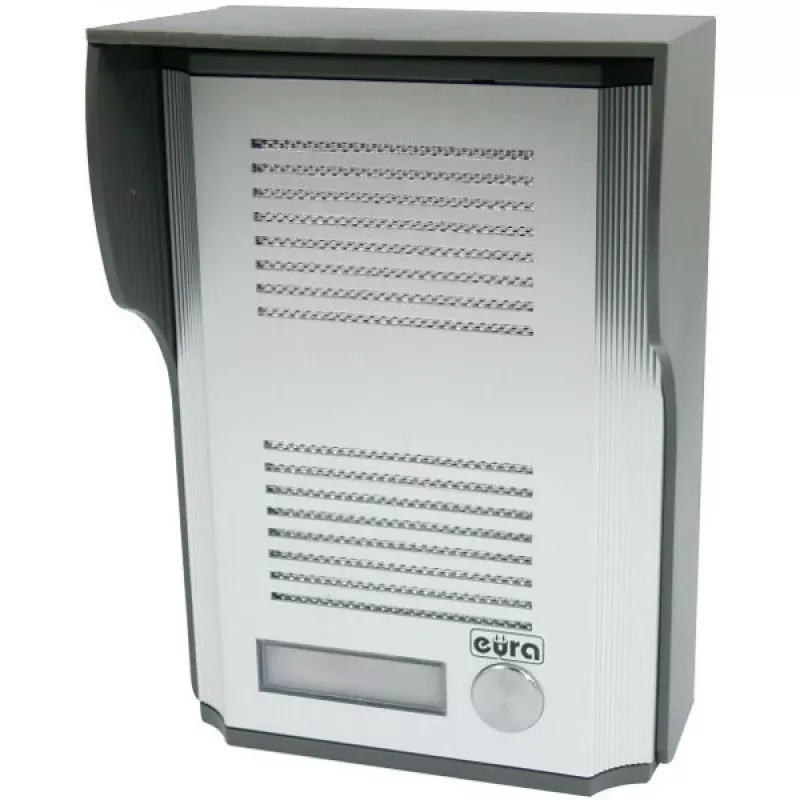

• Outdoor Panel Model: RL-3203ID
• Outdoor Panel Features: Integrated RFID Reader, Backlit Call Button
• Outdoor Panel Material: Aluminum Alloy
• Outdoor Panel Mounting: Surface Mount
• Outdoor Panel IP Rating: IP44
• Indoor Unit Type: Handset (Unifon)
• Indoor Unit Functions: Door Release, Adjustable Ringtone Volume
• Wiring Type: 2-Wire (between units) + 2-Wire (for electric strike)
• Power Supply Input: AC 230V, 50Hz
• System Power Output: DC 12V
• Electric Strike Output: DC 12V, max. 300mA
• RFID Frequency: 125 kHz (EM-ID)
• RFID User Capacity: Up to 2000 users
• Max Cable Length: 100m (with 0.5mm² cable)
• Operating Temperature (Outdoor): -25°C to +50°C
• Operating Temperature (Indoor): 0°C to +50°C
• Color (Outdoor Panel): Silver
• Color (Indoor Unit): White

Recommendations

For optimal performance, use a 0.5mm² or thicker cable and ensure proper weatherproofing for outdoor connections. The system is compatible with standard electric strikes rated at DC 12V.
