EUROLITE FD-36+1 DMX dimmerpaneel 36-kanaals lichtcontroller met masterfader

Take command of 36 individual DMX channels with the EUROLITE FD-36+1, a robust desktop lighting controller built for precise, hands-on show control. The master fader gives you instant global intensity, while 36 dedicated channel faders put every fixture at your fingertips. Flash buttons per channel let you punch in accents on the fly, and the blackout function kills all output instantly when you need a clean cut.

Overview

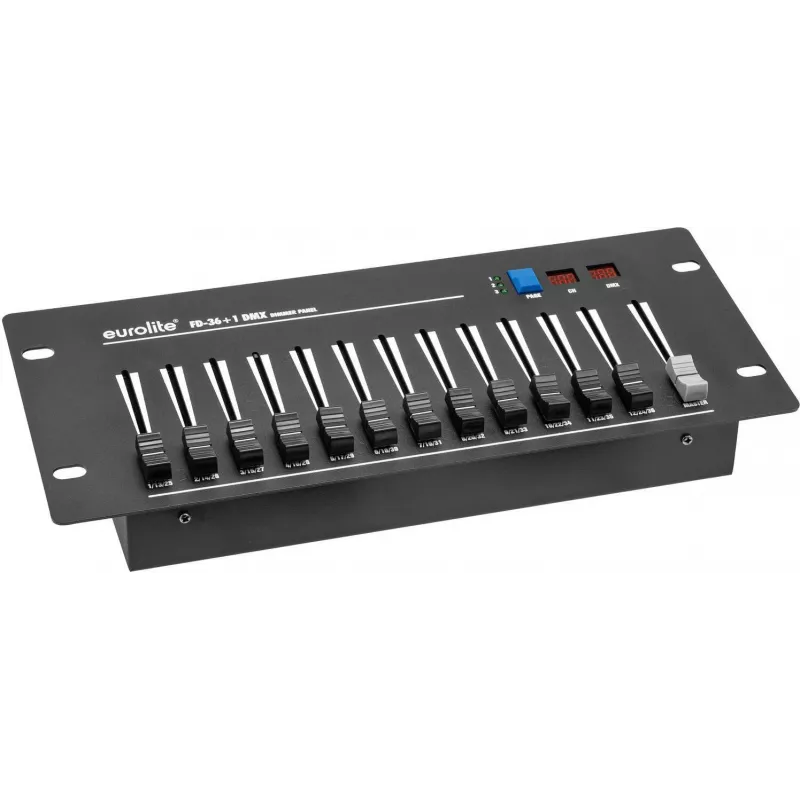

Housed in a rugged metal chassis, the FD-36+1 is a straightforward DMX512 controller designed for stage lighting, architectural installations, and mobile DJ setups. It outputs a single universe of DMX via a 3-pin XLR female connector, and the front panel is laid out for fast, intuitive operation. LED indicators show channel and master status at a glance, so you always know what’s live.

What stands out

• 36 channel faders plus a master fader for full manual control.
• Per-channel flash buttons for instant bumps and accents.
• Blackout function for immediate total output cut.
• DMX512 output via 3-pin XLR female.
• Metal housing for durability in demanding environments.
• LED indicators for channel and master status.
• Simple desktop operation – no programming required.

Technical details

• Control channels: 36
• Master control: 1 master fader
• Channel control: 36 channel faders
• DMX protocol: DMX512
• DMX output connector: 1 x 3-pin XLR female
• Flash buttons: Yes, per channel
• Blackout function: Yes
• Power supply: 230 V AC, 50 Hz
• Power consumption: 10 W
• Housing material: Metal
• Colour: Black
• Mounting type: Desktop
• Control elements: Faders, buttons
• LED indicators: Yes, for channels and master
• Operating temperature range: 0 - 40 °C

Our verdict

The EUROLITE FD-36+1 is a no-nonsense analogue-style DMX controller for anyone who wants tactile, immediate control over a medium-sized rig. Its metal build and straightforward layout make it a reliable workhorse for clubs, small theatres, and event productions.
