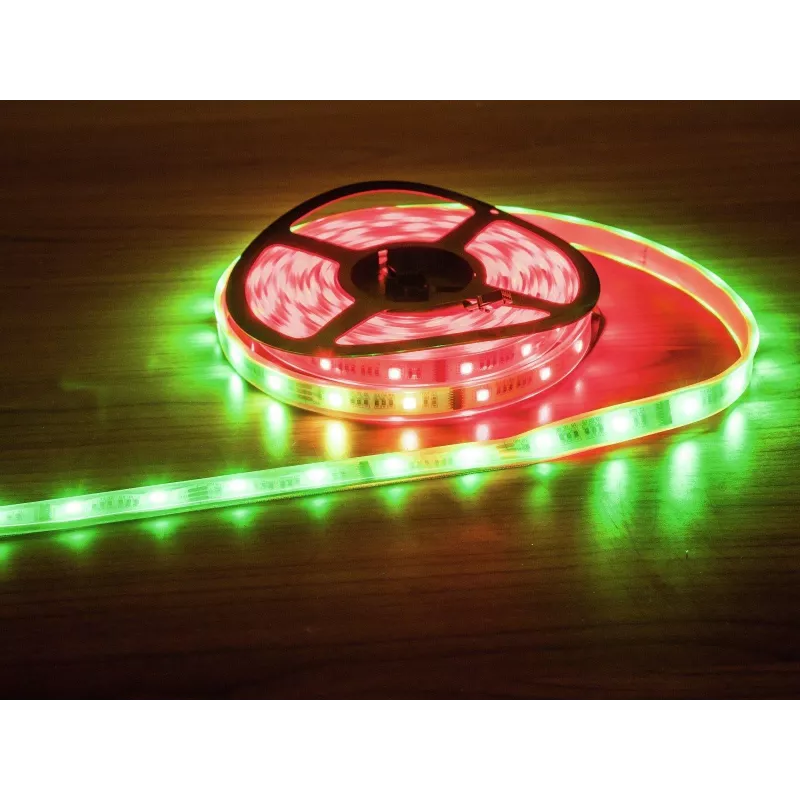

EUROLITE LED IP Pixel Strip 160 5m RGB 12V (50530200)

When standard LED strips cannot deliver the dynamic, individually addressable lighting effects your project demands, the EUROLITE LED IP Pixel Strip 160 steps in. This 5-meter RGB strip packs 160 pixels per meter, each controllable via SPI protocol, enabling stunning chase, rainbow, and custom animations. With an IP65 rating, it withstands dust and water jets, making it suitable for both indoor accent lighting and outdoor architectural installations.

Who is it for

This pixel strip is ideal for lighting designers, event technicians, and advanced DIY enthusiasts who need precise control over every LED. Whether you're creating a media facade, stage set, or immersive home lighting, its high pixel density and robust construction deliver professional results.

Main features

• 160 individually addressable RGB pixels per meter (800 total on 5m strip)
• SPI control protocol (WS2811/WS2812B compatible) for complex animations
• IP65 rating: dust-tight and protected against water jets
• 12V DC operation with low power consumption (7.68 W/m)
• Self-adhesive 3M backing for easy mounting on clean surfaces
• Cuttable every 62.5 mm (one pixel) for custom lengths
• Wide 120° beam angle for even light distribution
• Long lifespan of over 50,000 hours

Specifications

• LED type: SMD 5050
• LEDs per meter: 160
• Pixels per meter: 160
• Total LEDs/pixels: 800
• Colour type: RGB (Red, Green, Blue)
• Operating voltage: 12 V DC
• Power consumption: 7.68 W/m (38.4 W total)
• IP rating: IP65
• Strip length: 5 m
• Beam angle: 120°
• Control protocol: SPI (WS2811/WS2812B compatible)
• Cuttable segments: every 62.5 mm (1 pixel)
• Connector type: 3-pin JST SM (input/output)
• Mounting: self-adhesive backing (3M tape)
• Operating temperature: -20°C to +50°C
• Lifespan: >50,000 hours
• Dimmable: yes, via external controller
• Required accessories: external SPI controller, 12V DC power supply

Tips

For best adhesion, clean the mounting surface with isopropyl alcohol before applying the strip. Use a suitable SPI controller and a 12V power supply with at least 20% headroom over the total wattage. When cutting, ensure the strip is powered off and cut only at the marked copper pads. For outdoor use, seal cut ends and connectors with silicone to maintain IP65 integrity.
