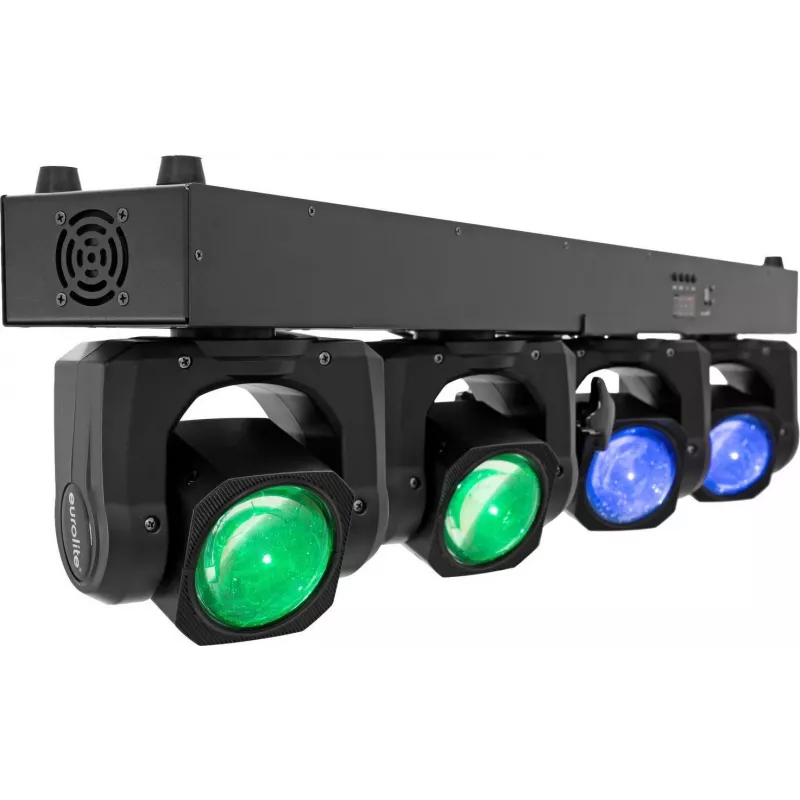

EUROLITE LED TMH Bar B240 moving-head beam 4x 60W RGBW 2° stralingshoek

Lighting designers and event technicians seeking intense, narrow beams for mid-air effects will find the EUROLITE LED TMH Bar B240 an indispensable tool. Equipped with four 60-watt RGBW LEDs and an extremely tight 2° beam angle, this moving-head bar delivers razor-sharp rays that cut through haze and fog with precision. Ideal for concerts, clubs, and stage productions, it combines powerful output with flexible control options.

Key specifications

• Light source: 4x 60 W RGBW LEDs (4-in-1)
• Beam angle: 2° (ultra-narrow)
• Pan: 540° / Tilt: 270°
• DMX channels: 10 / 19 / 22 / 28 selectable
• Control modes: DMX512, stand-alone, sound-to-light, master/slave
• Connections: 3-pin & 5-pin XLR In/Out, PowerCON In/Out
• Power supply: 100-240 V AC, 50/60 Hz, max 280 W
• Dimmer: 0-100% electronic, variable strobe
• LCD control panel for easy configuration
• Housing: metal and plastic, rugged construction

Why choose it

The B240 stands out with its individual head control, allowing each of the four moving heads to be positioned independently for dynamic beam arrangements. The RGBW color mixing produces a wide palette, from saturated hues to pure white, while the 2° beam angle creates intense, focused shafts of light. Its dual XLR and PowerCON connections enable straightforward daisy-chaining in larger rigs, and the multiple DMX channel modes offer flexibility for both simple and complex setups.

Ideal use cases

• Concert and festival lighting for beam effects
• Nightclubs and bars with haze or fog atmospheres
• Theatrical productions requiring precise light placement
• Mobile DJs and event companies needing versatile movers

Good to know

The fixture supports master/slave and sound-to-light modes for quick operation without a console, while the LCD panel simplifies addressing and mode selection. With its robust metal and plastic housing, it is built to withstand the rigors of touring and frequent setup. The 540° pan and 270° tilt ranges ensure comprehensive coverage, making it a reliable choice for professional lighting applications.
