EWIMAR U-BOX V2 paalmontagehouder voor camera's en beveiligingsbehuizingen

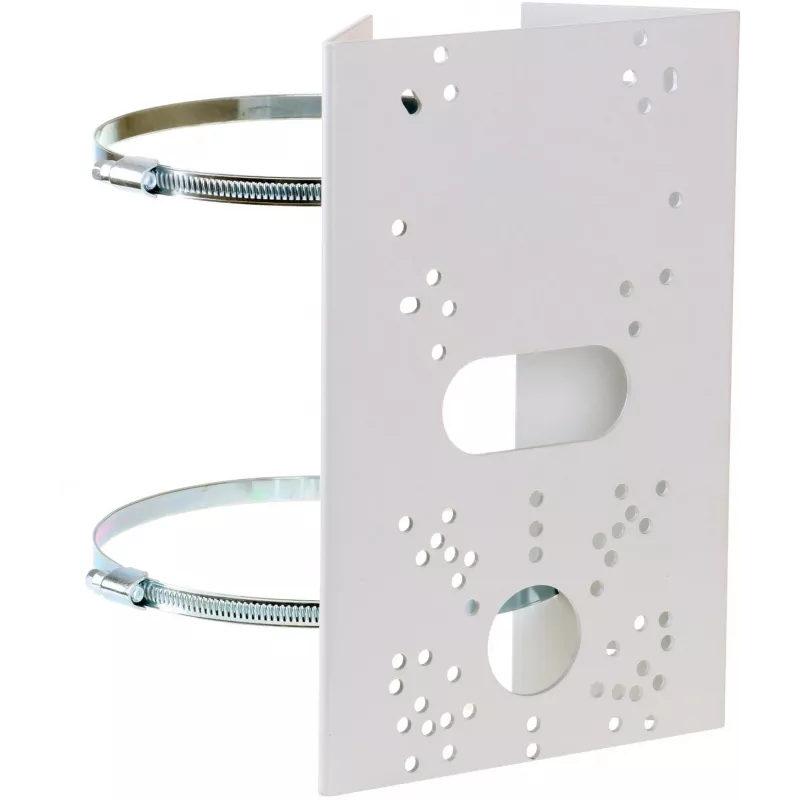

The EWIMAR U-BOX V2 is a robust and versatile pole mount bracket designed for securely attaching CCTV cameras and security enclosures to poles. Made from galvanized steel with a silver finish, it offers excellent corrosion resistance for both outdoor and indoor use. The bracket accommodates pole diameters from 60 to 180 mm and includes two clamping bands for easy installation. With a mounting plate of 100 x 100 mm and a projection of 40 mm from the pole, it provides a stable and compact mounting solution.

Advantages

High durability and weather resistance ensure long-lasting performance in harsh environments. The universal compatibility makes it suitable for most cameras and enclosures. Easy and secure installation saves time and effort.

Suitable for

• CCTV cameras
• Security enclosures
• Outdoor and indoor surveillance systems

Key specifications

• Mounting Type: Pole Mount Bracket
• Material: Galvanized Steel
• Color: Silver
• Compatible Pole Diameter: 60 - 180 mm

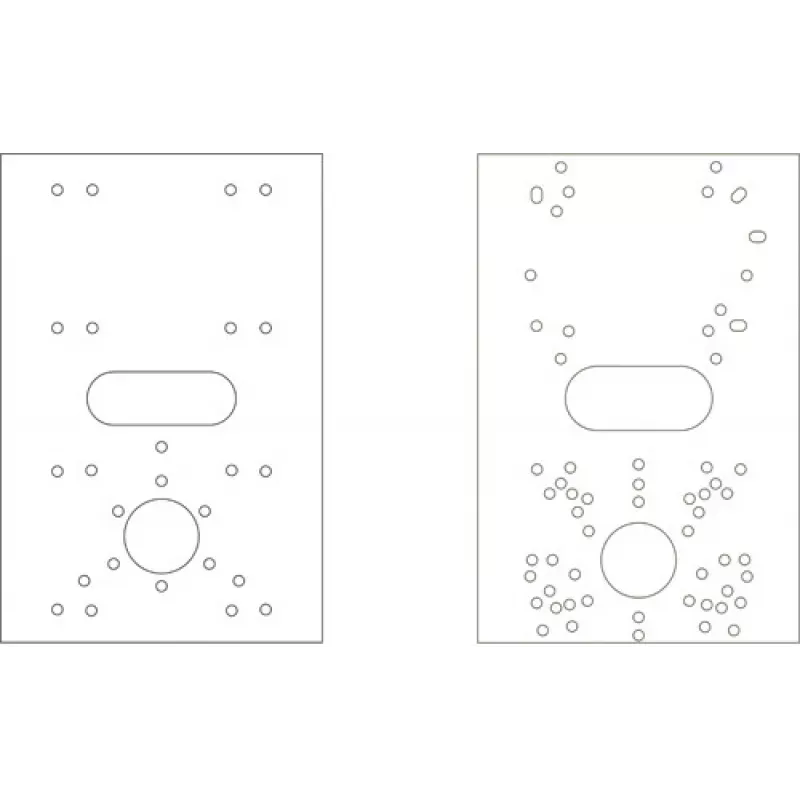

• Mounting Plate Dimensions: 100 x 100 mm
• Projection from Pole: 40 mm
• Number of Mounting Holes: 4

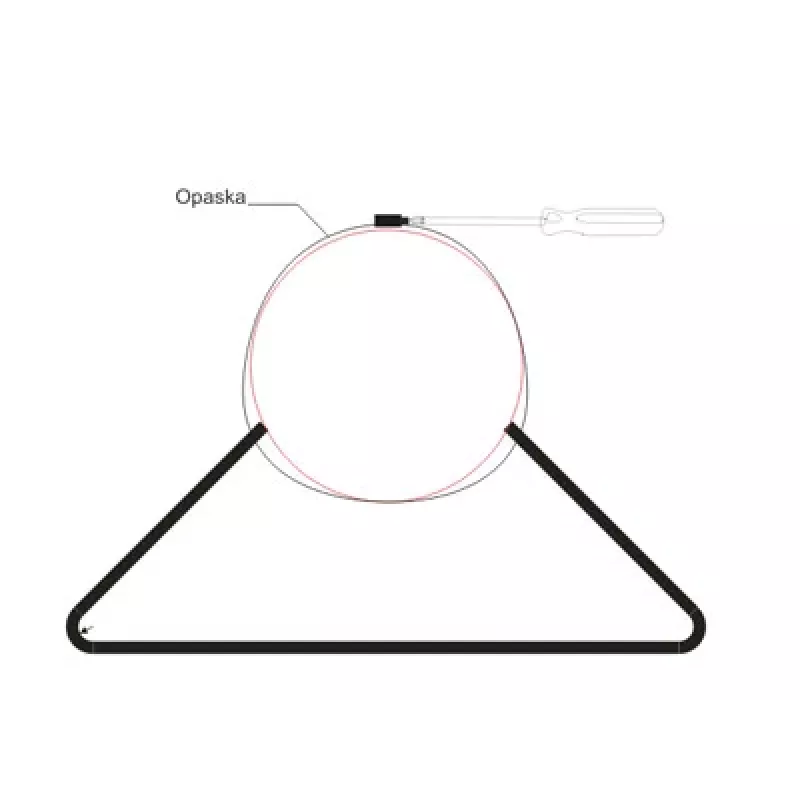

• Clamping Bands Included: 2
• Weather Resistance: Yes (Corrosion Resistant)
• Application: CCTV Cameras, Security Enclosures

Recommendations

For optimal performance, ensure the pole diameter is within the specified range and use the included clamping bands for a secure fit. Suitable for both indoor and outdoor installations.
