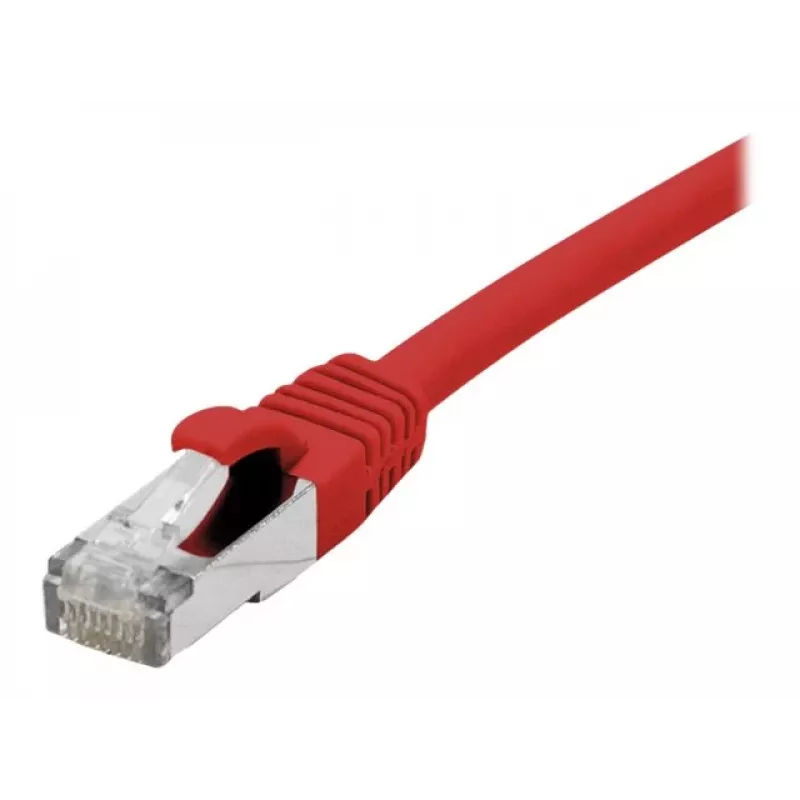

EXERTIS CONNECT Cat. 6A S/FTP patchkabel, 5m, rood, halogeenvrij, GRS-gecertificeerd, snagless 854525

Cat. 6A S/FTP patch cable for 10 Gigabit Ethernet over 5 meters. The PiMF shielding (pairs in metal foil) and overall braid screen suppress alien crosstalk, making this cable suitable for high-density 10GBASE-T installations. The red TPE jacket is halogen-free and GRS-certified, and the snagless boot protects the locking tab during moves, adds, and changes.

Advantages

S/FTP construction with PiMF provides superior noise immunity and supports 500 MHz bandwidth. The stranded copper conductors (AWG 26/7) remain flexible for tight bends, while gold-plated contacts (50 µm) ensure reliable connections. The halogen-free TPE jacket reduces toxic smoke in case of fire and meets Global Recycled Standard requirements.

Suitable for

• 10GBASE-T Ethernet links up to 100 m in structured cabling
• PoE and PoE+ powered devices (IP cameras, access points)
• Data centers and server rooms with high port density
• Industrial or public environments where halogen-free cabling is required

Key specifications

• Category: Cat. 6A (Class EA)
• Shielding: S/FTP, PiMF
• Length: 5.0 m
• Colour: Red
• Jacket: TPE, halogen-free, GRS-certified
• Connectors: RJ45, snagless, gold-plated contacts
• Conductor: Copper, AWG 26/7 stranded
• Bandwidth: 500 MHz
• Data rate: 10 Gbps
• Compatibility: Cat. 6, Cat. 5e, Cat. 5
• Operating temperature: -20°C to 60°C

Recommendations

For high-performance 10G networks, pair this cable with Cat. 6A patch panels and keystone jacks to maintain end-to-end shielding. Use cable management with bend radius control to preserve signal integrity.
