InLine installatiekabel Cat.7a, S/FTP (PiMF) 4x2x0.58 AWG23 1200MHz B2ca 300m

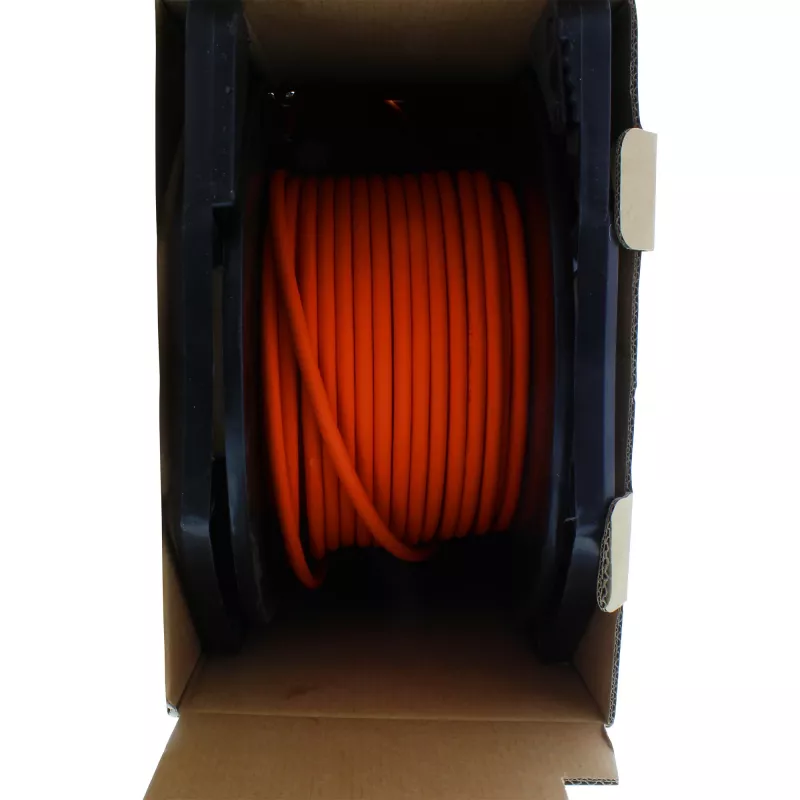

The InLine installation cable Cat.7a S/FTP on a reel-in-box delivers a halogen-free LSZH network cable rolled on a plastic reel fixed inside a reinforced cardboard drum box for easy, tangle-free removal of the required length. The product is intended for installation use and supports frequencies up to 1200 MHz with full copper cores and S/FTP shielding, making it suitable for high-speed networks up to 10 Gbit/s. The packaging includes a remaining-metre indication on the cable and is available in multiple bundle lengths; note that the drum box is supplied for 50 m, 100 m and 300 m bundles, 500 m is delivered on a drum, and 10 m and 25 m lengths are delivered in a box.

Advantages

The reel-in-box design allows cost reduction through easy handling on construction sites without an extra unwinding device and provides handy, stackable packaging that is convenient to transport. The lightweight packaging enables parcel shipment and the reinforced cardboard protects the cable from soiling and transport damage. Small quantity cutting costs are reduced by the convenient packaging and the remaining-metre indication supports precise installation planning.

Suitable for

• Structured cabling for residential and commercial buildings
• High-speed Ethernet installations up to 10 Gbit/s
• Long cable runs and backbone connections (300 m bundle)
• Professional installation work on construction sites

Key specifications

• Cable type: Cat.7a S/FTP installation cable

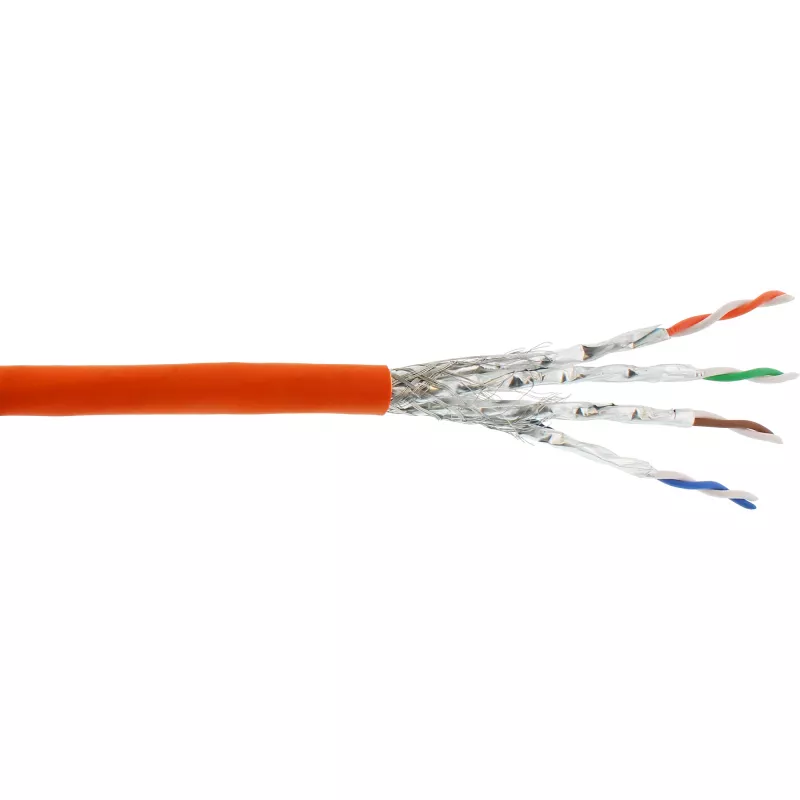

• Construction: 4 x 2 x AWG23/1 (0.58 mm²) with pairs in metal foil and overall braided shielding
• Frequency range: up to 1200 MHz
• Data rate: suitable up to 10 Gbit/s
• Impedance: 100 Ω; DC resistance: max. 93.8 Ω/km
• Conductor: full copper cores
• Sheath: halogen-free (LSZH), colour: orange
• Cable diameter: approx. 7.8 mm
• Temperature ranges: installation 0 °C to 50 °C; operation -20 °C to 60 °C; storage -20 °C to 50 °C
• Fire behaviour: B2ca according to EN 50575:2014 / A1:2016

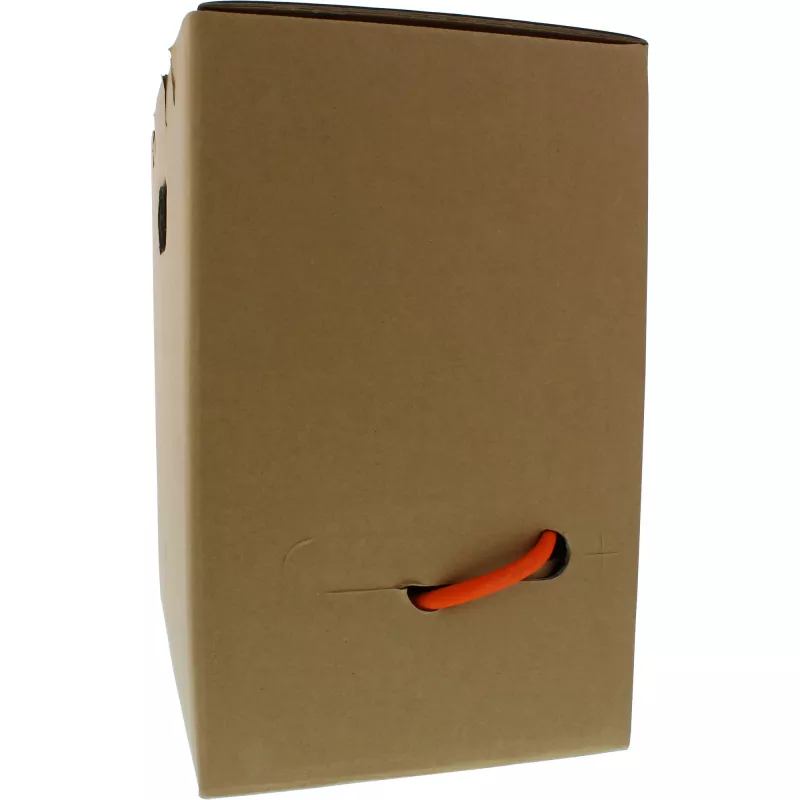

• Packaging: reel in reinforced cardboard drum box; remaining-metre marking on cable

How to use

Unroll the required cable length from the reel-in-box and cut at the desired point; the reinforced box and fixed plastic reel permit smooth, tangle-free withdrawal without additional unwinding equipment. Install the cable following standard installation practices for Cat.7a (avoid tight bends and mechanical strain), terminate with appropriate Cat.7a-compatible components and verify links with suitable certification or testing tools. Observe the installation temperature range specified for the product.

Recommendations

Store and handle the cable in dry conditions and avoid exposure to temperatures outside the stated storage and installation ranges. For long-term installations, use proper strain relief and conduit as required by local standards; select the bundle length that matches installation needs to minimise cutting and waste.
