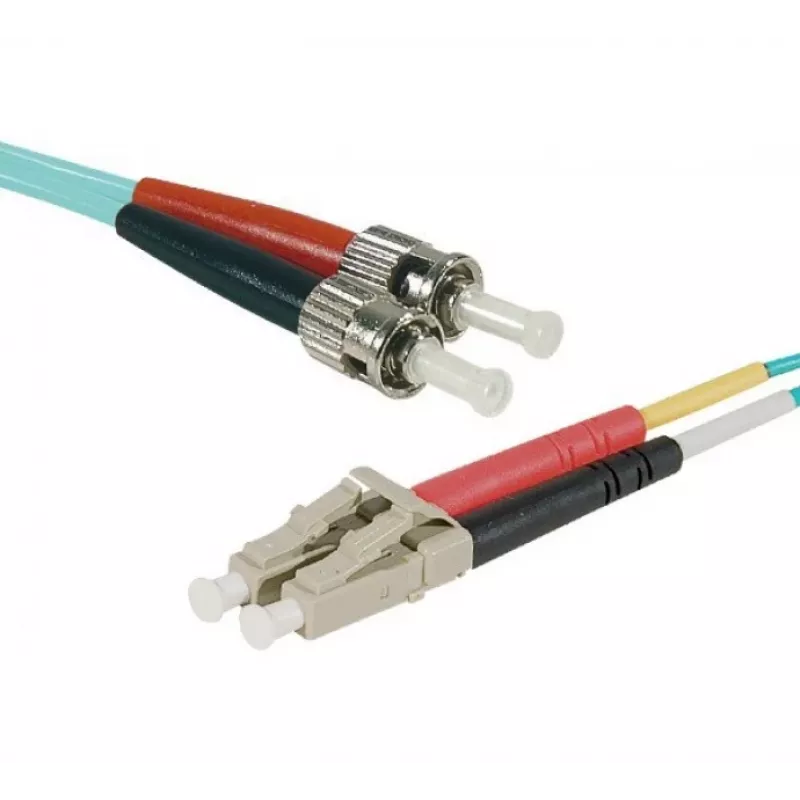

EXERTIS CONNECT Glasvezel-patchkabel Eco, 50/125 µm, OM3-vezel, LC Duplex naar ST Duplex, Aqua, 3,0 m, UPC Polish 392733

Fibre optic patch cables often suffer from poor connector alignment and high insertion loss, which can degrade network performance. This EXERTIS CONNECT OM3 patch cable solves that problem with precision-polished UPC connectors and high-quality multimode fibre, ensuring reliable high-speed links in data centres and enterprise networks.

Who is it for

This cable is ideal for network engineers and IT professionals who need a dependable, cost-effective solution for short-distance, high-bandwidth connections. It is suitable for 10 Gigabit Ethernet and can support 40/100 Gigabit Ethernet over shorter distances, making it a versatile choice for modern fibre infrastructures.

Main features

• OM3 multimode fibre with 50/125 µm core/cladding diameter, optimized for 850 nm transmission.
• LC Duplex to ST Duplex connectors with UPC (Ultra Physical Contact) polish for low insertion loss and high return loss.
• Aqua-coloured jacket for easy identification of OM3 fibre.
• 3.0 m length, ideal for patching within racks or between adjacent equipment.
• Supports data rates up to 10 GbE, with capability for 40 GbE and 100 GbE over shorter distances.

Specifications

• Cable type: Fibre optic patch cable, duplex construction
• Fibre type: Multimode OM3, 50/125 µm
• Connectors: LC Duplex to ST Duplex, UPC polish
• Length: 3.0 m
• Jacket colour: Aqua
• Insertion loss: < 0.3 dB per connector (typical)
• Return loss: > 30 dB (typical)
• Attenuation: ≤ 3.5 dB/km at 850 nm, ≤ 1.5 dB/km at 1300 nm
• Wavelengths supported: 850 nm, 1300 nm

Tips

To maintain optimal performance, avoid bending the cable beyond its minimum bend radius and keep connectors clean using appropriate fibre cleaning tools.
