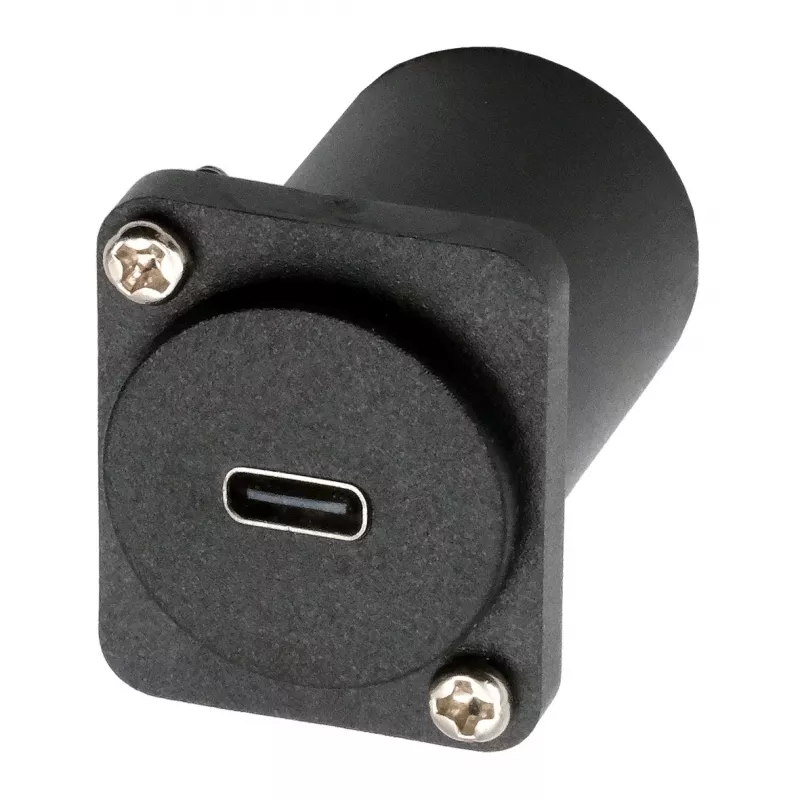

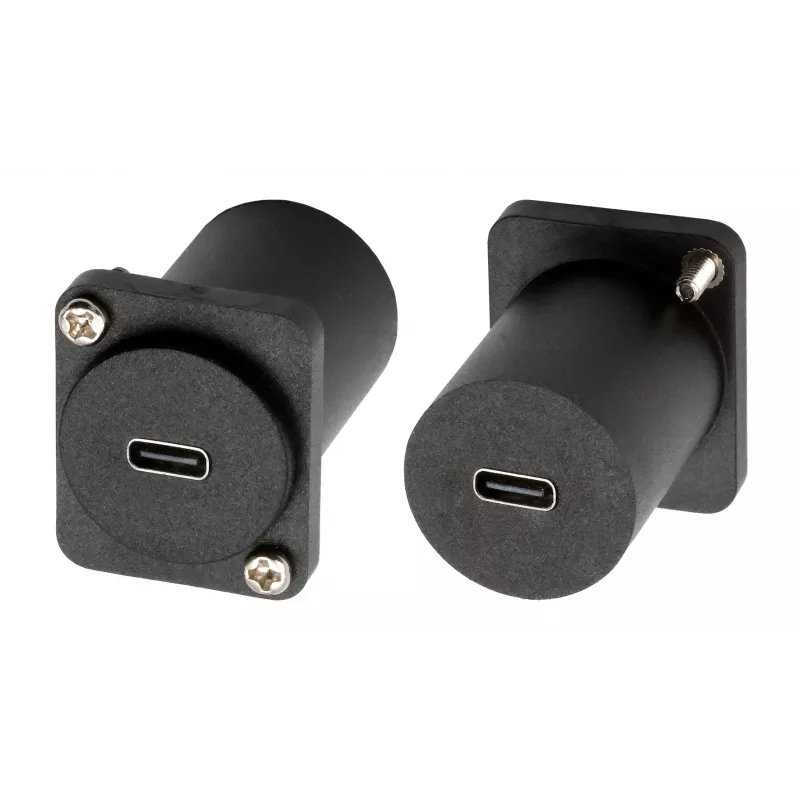

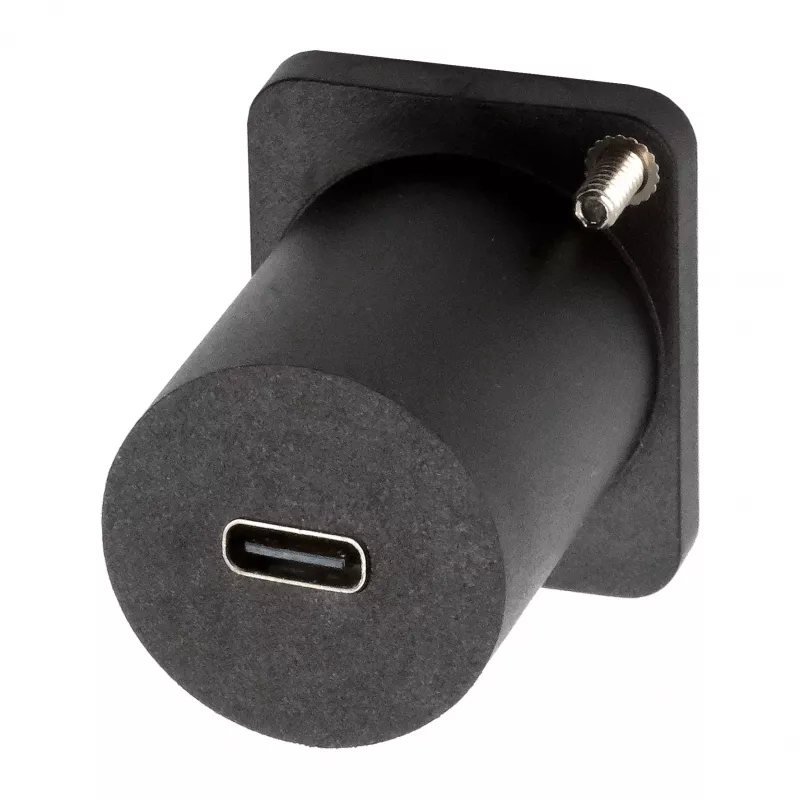

EXSYS D-type USB-C-bus naar bus adapter, USB 3.2 Gen 1, paneelmontage, zwart (EX-49158)

For integrators and technicians building custom panels or upgrading industrial workstations, the EXSYS EX-49158 provides a rugged USB-C female-to-female pass-through. Mount it in a D-Type cutout to create a reliable front-panel connection point for USB-C devices.

Key specifications

• Connector 1: USB-C female
• Connector 2: USB-C female
• USB standard: USB 3.2 Gen 1 (5 Gbps)
• Form factor: D-Type panel mount
• Housing material: Metal
• Colour: Black
• Power Delivery pass-through up to 100 W
• Data only, no video output

Why choose it

The metal housing provides shielding and durability for long-term use. The panel-mount design keeps your USB-C connection secure and accessible, while backward compatibility with USB 2.0 and 1.1 ensures wide device support.

Ideal use cases

• Professional A/V installations
• Industrial control panels
• Data center infrastructure
• Custom workstation builds

Good to know

This adapter is a simple pass-through; it does not convert signals or extend cable length. Ensure your cables and devices support the desired USB standard for optimal performance.
