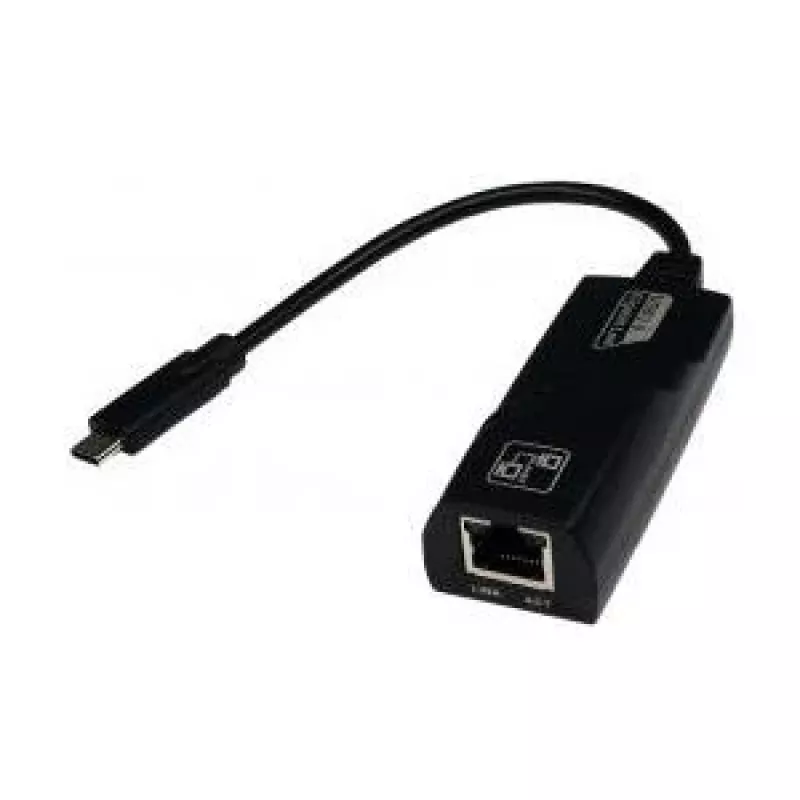

EXSYS EX-1318 USB 3.1 Gen 1 naar Gigabit Ethernet netwerkadapter

Add a Gigabit Ethernet port to any USB-enabled device with the EXSYS EX-1318. This compact adapter leverages the Realtek RTL8153 chipset to deliver stable, full-duplex 10/100/1000 Mbps connectivity over USB 3.1 Gen 1, with backward compatibility to USB 2.0 and 1.1. Its aluminum housing and integrated 10 cm cable make it durable and easy to position, while Auto MDI/MDI-X eliminates the need for crossover cables.

Highlights

• Gigabit Ethernet over USB 3.1 Gen 1 (USB 3.0 / USB 3.2 Gen 1 compatible)
• Supports 10/100/1000 Mbps data rates with Auto MDI/MDI-X
• Wake-on-LAN and jumbo frame support up to 9K bytes
• Bus-powered – no external power adapter needed
• Broad OS compatibility: Windows, macOS, and Linux

In daily use

The EX-1318 is instantly recognized by modern operating systems, requiring no driver installation for most platforms. Its Link/Activity LED provides clear status at a glance, and the aluminum shell dissipates heat effectively during sustained transfers. Whether you're upgrading a laptop without Ethernet or adding a second network interface to a desktop, this adapter offers a reliable, plug-and-play solution.

Full specifications

• Host interface: USB 3.1 Gen 1 Type-A male
• Network interface: RJ-45 female
• Data link protocol: Gigabit Ethernet
• Data transfer rate: 10/100/1000 Mbps
• Ethernet standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Features: Auto MDI/MDI-X, Wake-on-LAN, Full Duplex
• Jumbo frame support: Up to 9K bytes
• LED indicators: Link/Activity
• Chipset: Realtek RTL8153
• Power source: USB bus-powered
• Housing material: Aluminum
• OS compatibility: Windows (XP/Vista/7/8/8.1/10/11), macOS (10.6+), Linux (Kernel 2.6.x+)
• Integrated cable length: Approximately 10 cm
• Backward compatibility: USB 2.0, USB 1.1
• Plug & Play: Yes

Final note

The EXSYS EX-1318 combines proven Realtek technology with a rugged aluminum design, making it a dependable choice for adding Gigabit Ethernet to any USB-equipped system.
