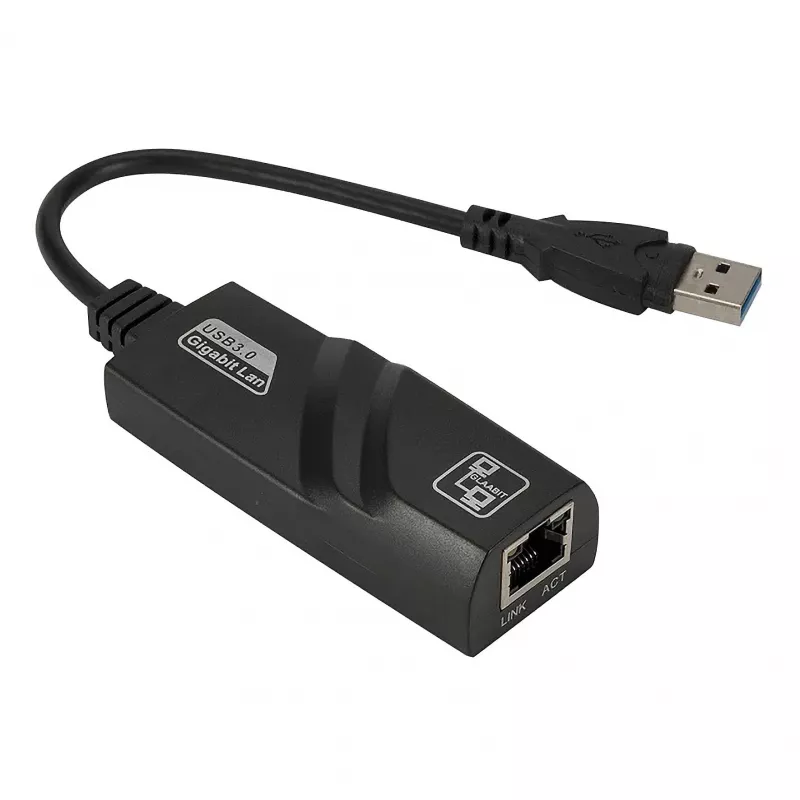

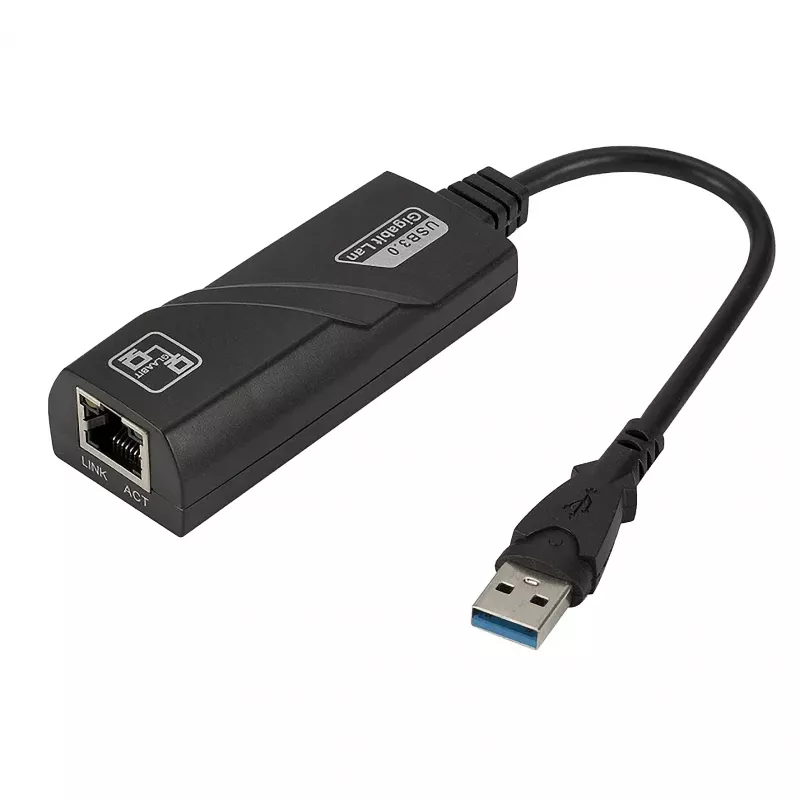

EXSYS EX-1320-3 USB 3.2 Gen 1 naar Gigabit Ethernet-adapter (Realtek RTL8153)

Upgrade to Gigabit Ethernet speeds with the EXSYS EX-1320-3 USB 3.2 Gen 1 adapter, delivering up to 5 Gbps USB data transfer and 10/100/1000 Mbps network connectivity via a Realtek RTL8153 chipset.

Overview

The EXSYS EX-1320-3 is a compact USB to Ethernet adapter that adds a Gigabit RJ45 port to any USB-enabled device. It supports USB 3.2 Gen 1 (USB 3.0) with backward compatibility to USB 2.0 and 1.1, ensuring broad compatibility with modern and legacy systems. The integrated 15 cm cable provides flexibility, while the black plastic housing blends seamlessly into any setup.

What stands out

• Realtek RTL8153 chipset for reliable performance
• Supports IEEE 802.3az Energy Efficient Ethernet
• Wake-on-LAN and jumbo frame support (up to 9K)
• Auto MDI/MDIX for hassle-free cable connections
• Bus-powered – no external power adapter needed

Technical details

• Host Interface: USB 3.2 Gen 1 Type-A Male
• Network Interface: RJ45 Female
• Ethernet Speed: 10/100/1000 Mbps
• USB Data Transfer Rate: Up to 5 Gbps
• Chipset: Realtek RTL8153
• Network Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3az
• Features: Auto MDI/MDIX, Wake-on-LAN, Jumbo Frames (up to 9K), Full-Duplex/Half-Duplex
• OS Compatibility: Windows 7/8/8.1/10/11, macOS 10.6+, Linux Kernel 2.6+
• Power Source: USB Bus-powered
• LED Indicators: Link/Activity
• Housing Material: Plastic
• Integrated Cable Length: 15 cm
• Color: Black
• Certifications: CE, FCC, RoHS
• Ethernet Flow Control: IEEE 802.3x

Our verdict

A reliable and compact solution for adding Gigabit Ethernet to laptops, desktops, and other USB devices, with broad OS support and energy-efficient operation.
